Options
Part Number: IRU - 200 _____
A
APG
Automation Products Group, Inc. www.apgsensors.com
tel. 888.525.7300 [email protected]
3
A. Output
□ 2 (1) solid state relay
□ 3 isolated 4-20 mA
□ 4 RS-485 with (1) NPN trip point
□ 5 4-20 mA with (2) NPN trip points
B. Cable/Micro Connector (IRU-2004/2005 only)
□ CL Cable (specify L=length in feet; standard 6 ft.)
□ M 5-pin micro-connector
IRU-2000 Accessories
Please order separately, by part number.
Description Part Number
Micro-Connector Over Molded Extension Cable
Straight, 2 m
135415-0002
Right angle, 2 m 135415-1002
Straight, 5 m 135415-0005
Right angle, 5 m 135415-1005
Programming Module
RST-3001 (USB)
125389
RST-3002 (USB) 64 bit compatible 125389-1000
+24 VDC
- VDC
Clock Synch
Digital Pulse Width
Relay
Relay
+24 VDC
- VDC
Clock Synch
Digital Pulse Width
4-20mA Circuit Power (+24 VDC)
4-20mA Output

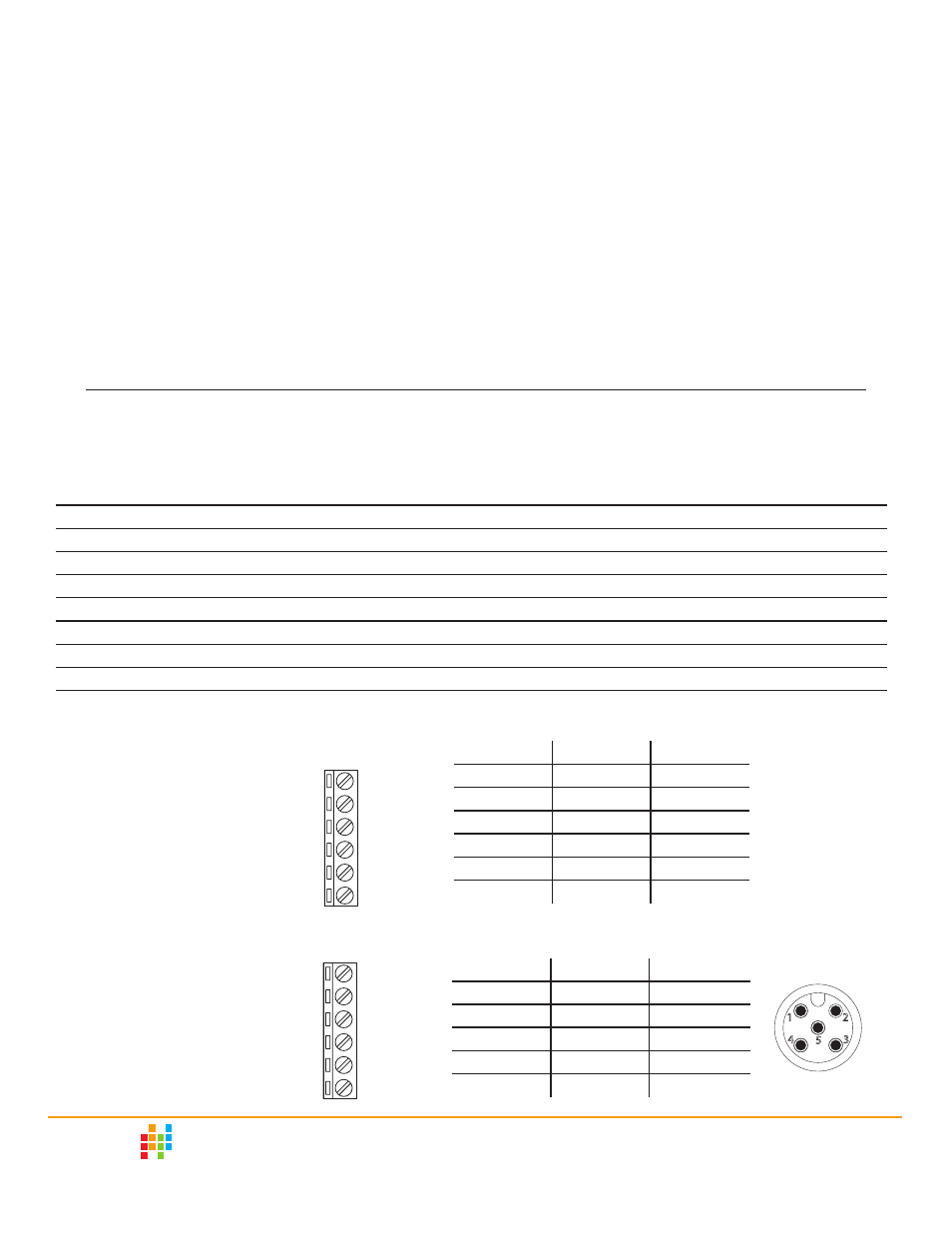

Wiring
IRU-2002
IRU-2003
2 1
4 3 5
IRU-2004 IRU-2005
Red +24 VDC +24 VDC
Black - VDC - VDC
Green Clock Clock
White NPN trip NPN 2
Blue T (+) or (B) NPN 1
Orange T(-) or (A) 4-20
IRU-2004 IRU-2005
1 Brown +24 VDC +24 VDC
2 White NPN 1 NPN 1
3 Blue VDC Grnd VDC Grnd
4 Black 4-20 mA 4-20 mA
5 Grey NPN 2 NPN 2
Cable
Micro-Connector
