Anchor E-Z CONNECT FRAME SYSTEM - Manual (Page 3)

Channel rail
#12 x 3/4” Self-
Drilling Screw.
1 1/4”
#12 x 3/4” Self-Drilling
Screw fastens Z-Bracket
to Frame.
Channel rail
Use 3” Lag Screw to fasten
to Building, plus expansion
shield when requested for
installation to brick. (See
Note 1)

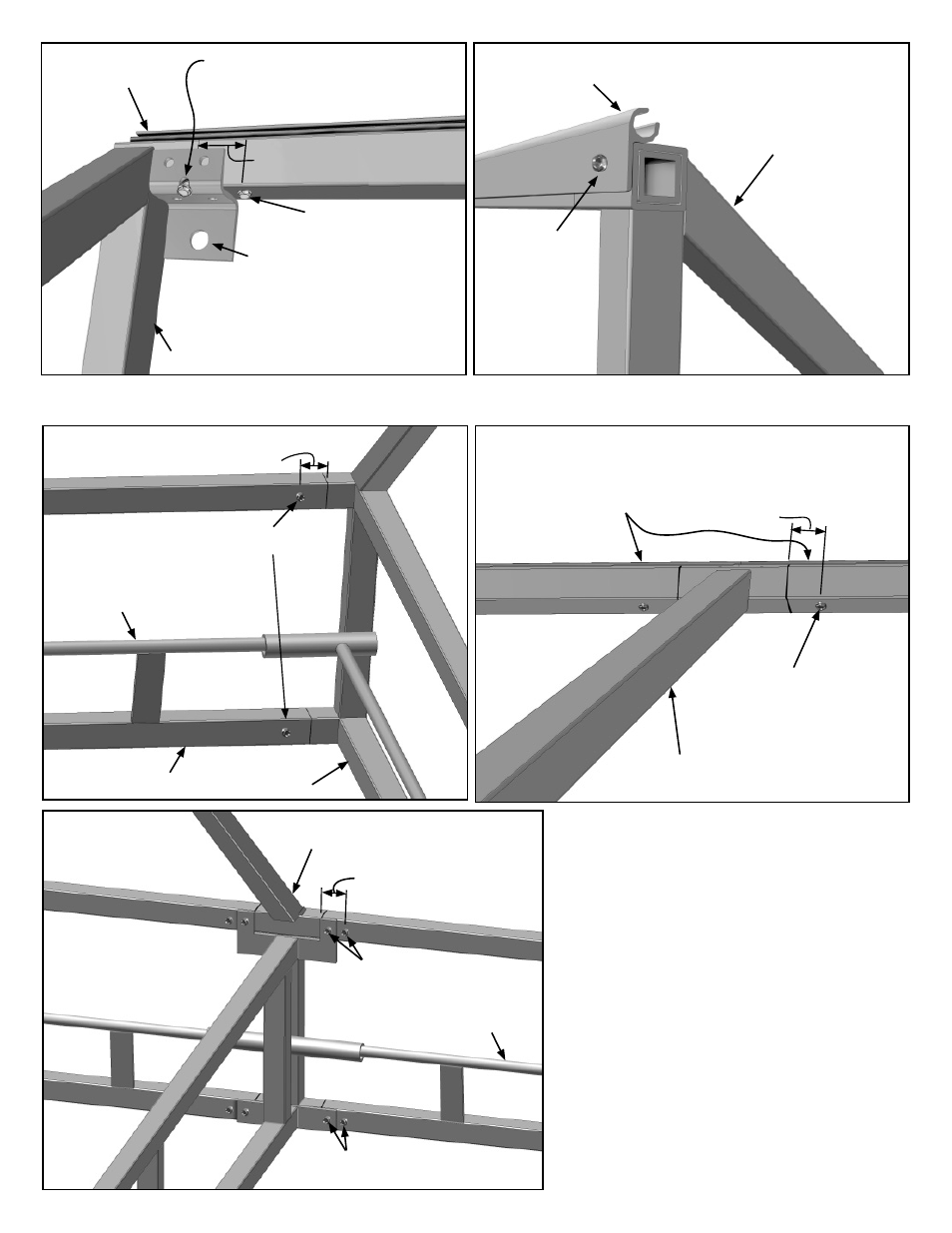

DETAIL 1 DETAIL 2
3
#12 x 3/4” Self-
Drilling Screw. Typ.
1 1/4”
Typ.
#12 x 3/4” Self-
Drilling Screw.
DETAIL 3 DETAIL 4
DETAIL 5
1 1/4”
Typ.
#12 x 3/4” Self-Drilling
Screw. (Typ.)
Place on bottom surface
of top horizontal bar.
Intermediate Rafter
Section.
Closed End
Section
Closed End
Section
Top horizontal bar of
Middle Section.
Intermediate Rafter
Section.
1 1/4”
Typ.
Lace Bar
#12 x 3/4” Self-
Drilling Screw. Typ.
Lace Bar
Closed End
Section
Middle Section
#12 x 3/4” Self-
Drilling Screw. Typ.
Note 1:
Attachment to Building is the responsibility
of the installer. The hardware that is pro-
vided may not be adequate for all applica-
tions. Installers should insure that awning
is safely and securely installed.
