Anchor E-Z CONNECT FRAME SYSTEM User Manual
E-z connect frame, Assembly instructions

EZC 0110
Assembly Instructions
E-Z Connect Frame
EC 4125

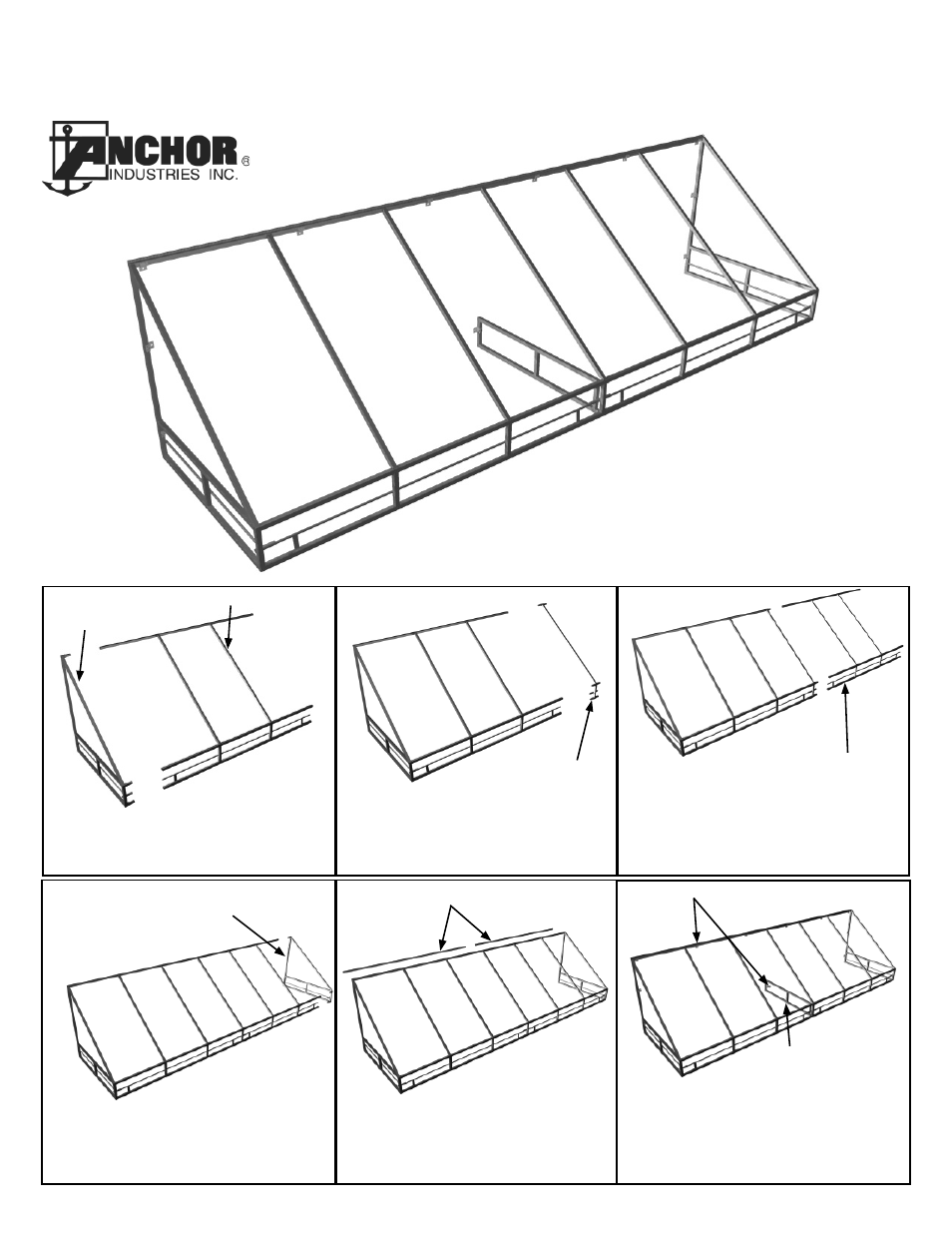

Step 2
Fit Middle Section to Intermediate
Rafter Section. (Detail 4 & 5)
Closed End
Section - Left
Middle Section
Step 1
Fit Closed End Section to Middle Sec-
tion. (Details 1 & 3)
Step 3
Fit Intermediate Rafter Section to next
middle section. (Detail 4 & 5)
Intermediate
Rafter Section
Middle Section
Step 4
Fit Closed End Section - Right to last
middle section. (Details 1, 2, & 3)
Step 5
Attach Channel Rail to back bar.
(Detail 2)
Step 6
Attach Support Truss. Mount Frame to
Wall with Z Brackets. Install Fabric Prior
to Mounting to Building.
Closed End
Section - Right
Channel Rails
Z Brackets
Fully Constructed Frame
Support Truss
