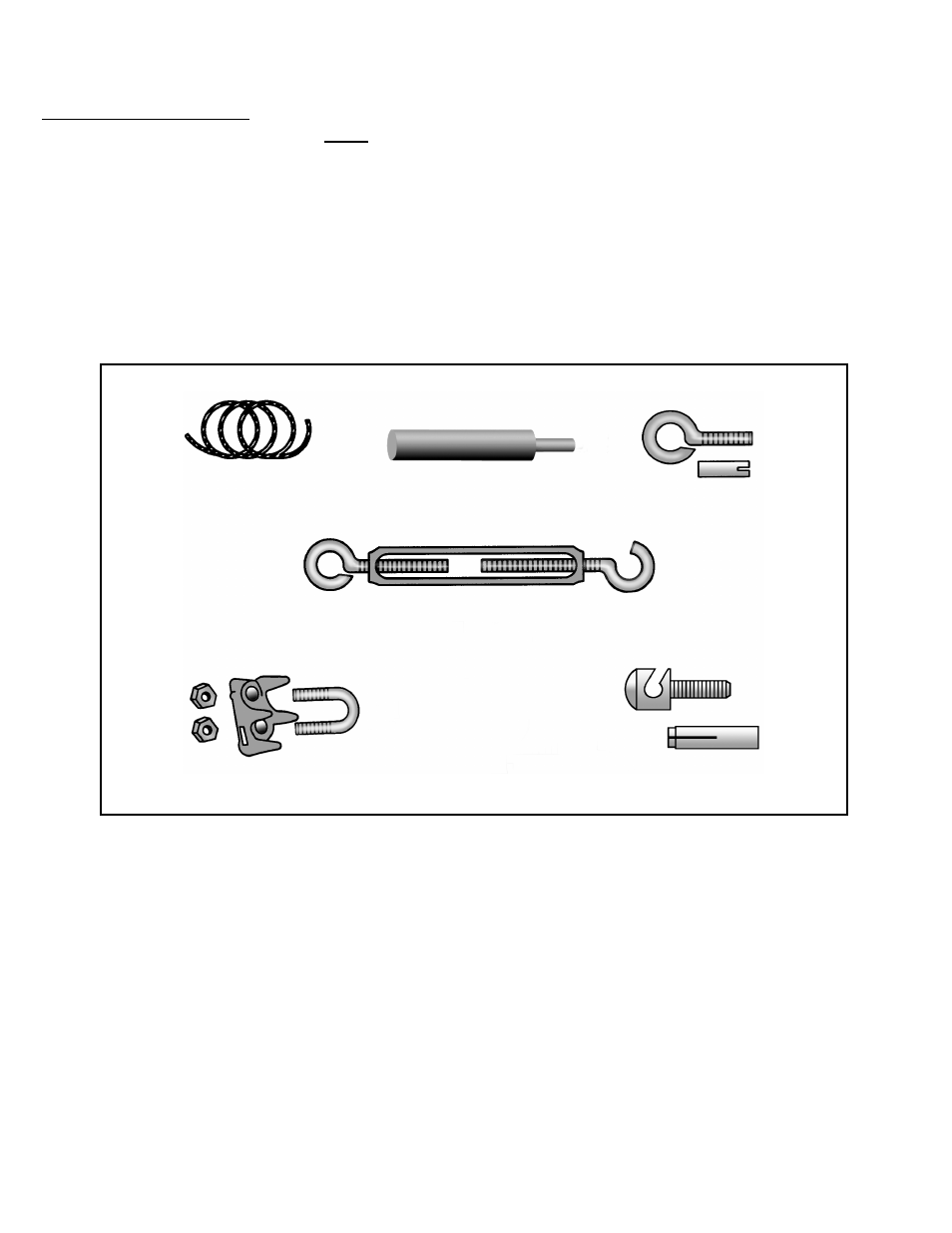

OPTIONAL CABLE ASSEMBLY INSTALLATION
3/16” STAINLESS
STEEL CABLE
TURNBUCKLE
CABLE CLAMP
3/8” SLOTTED CABLE ANCHOR
BOLT -DROP IN ANCHOR
3/8” MACHINE THREADED
EYEBOLT AND DROP-IN
ANCHOR
SETTING TOOL
IMPORTANT NOTES:
1. Installation of pool cover must begin at any areas with cut-outs or zero tolerance areas
(such as at cable-construction). When there are several areas like this, start at most
complicated of these areas.
2. This application of cable is for a standard straight wall installation. A custom cable
area may require special installation and hardware. If you have any questions call
your Anchor Representative to assist you.
Install cable hardware at the same level as the rest of the cover!
HARDWARE
1) Install 3/8” drop-in anchor with 3/8” eyebolt on one end of cable area. See FIG. 4
2) Install 3/8” drop-in anchors at the opposite end of the cable area and approximately 18” apart for the 3/8”
cable anchor bolts. When installing the cable anchor bolt to the cable area, align the hole in the anchor bolt in
the direction of the cable.
see FIG. 5A. Run the cable through the in-line holes. see FIG. 5B. Run one end
of the cable through the cable anchor at one end of cable area and loop. Attach (2) cable clamps and tightly
secure cable,
see FIG. 5A. Run other end of cable through eyebolt on turnbuckle, make loop and attach (1)
cable clamp for now. With turnbuckle fully extended out, attach hook end of turnbuckle to the eyebolt at the end
of the cable area. Loosen the (1) cable clamp and pull cable as taut as possible. Tighten (1) cable clamp and
add second cable clamp now. Be sure all cable clamps are tight to secure the cable. Rotate mid-section of turn-
buckle to tighten cable further,
see FIG. 5C.
3) Attach the snaps located under pool cover in cable area onto cable. See FIG. 5D.
