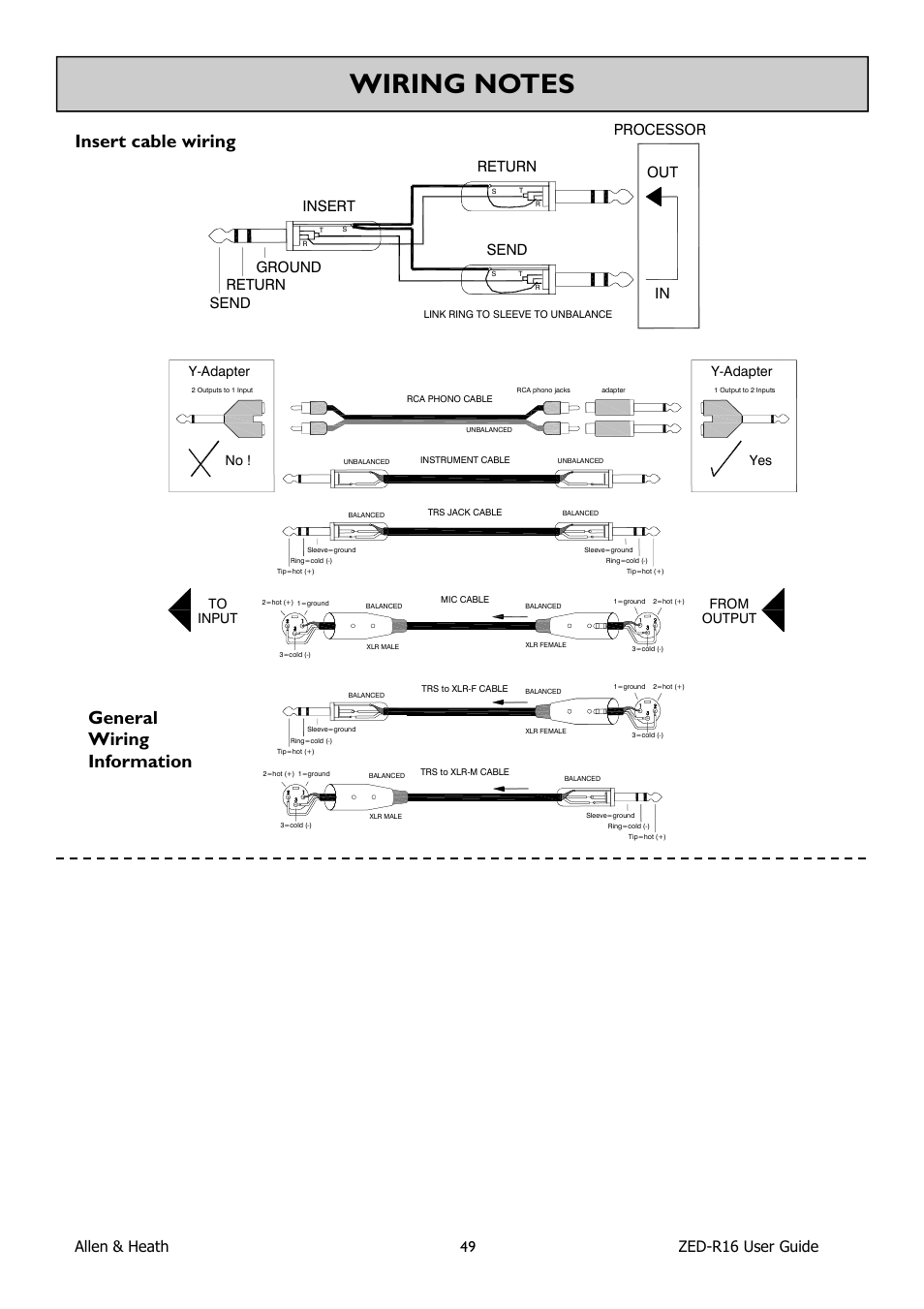

Insert cable wiring, General wiring information, Allen & heath 49 zed-r16 user guide – Allen&Heath ZED-R16 User Manual
Page 49: Y-adapter no, Y-adapter yes
