Allen & Heath 25 ZED-10FX User Guide
L
R
+16
-6
-9
-20
-30
-16
-12
-3
0
+3
+6
+9
Aux
+10
LEVEL
+10
+6
Source
Playback
Mix
Phones
MAIN MIX
OUT
AUX
OUT
FX
PH
ON
ES
S
ELE
CT
0
0
LEVEL
AUX MIX
LEVEL
LEVEL
Record
+10
0
0
Monitor
Phones
O/P Level
Switch

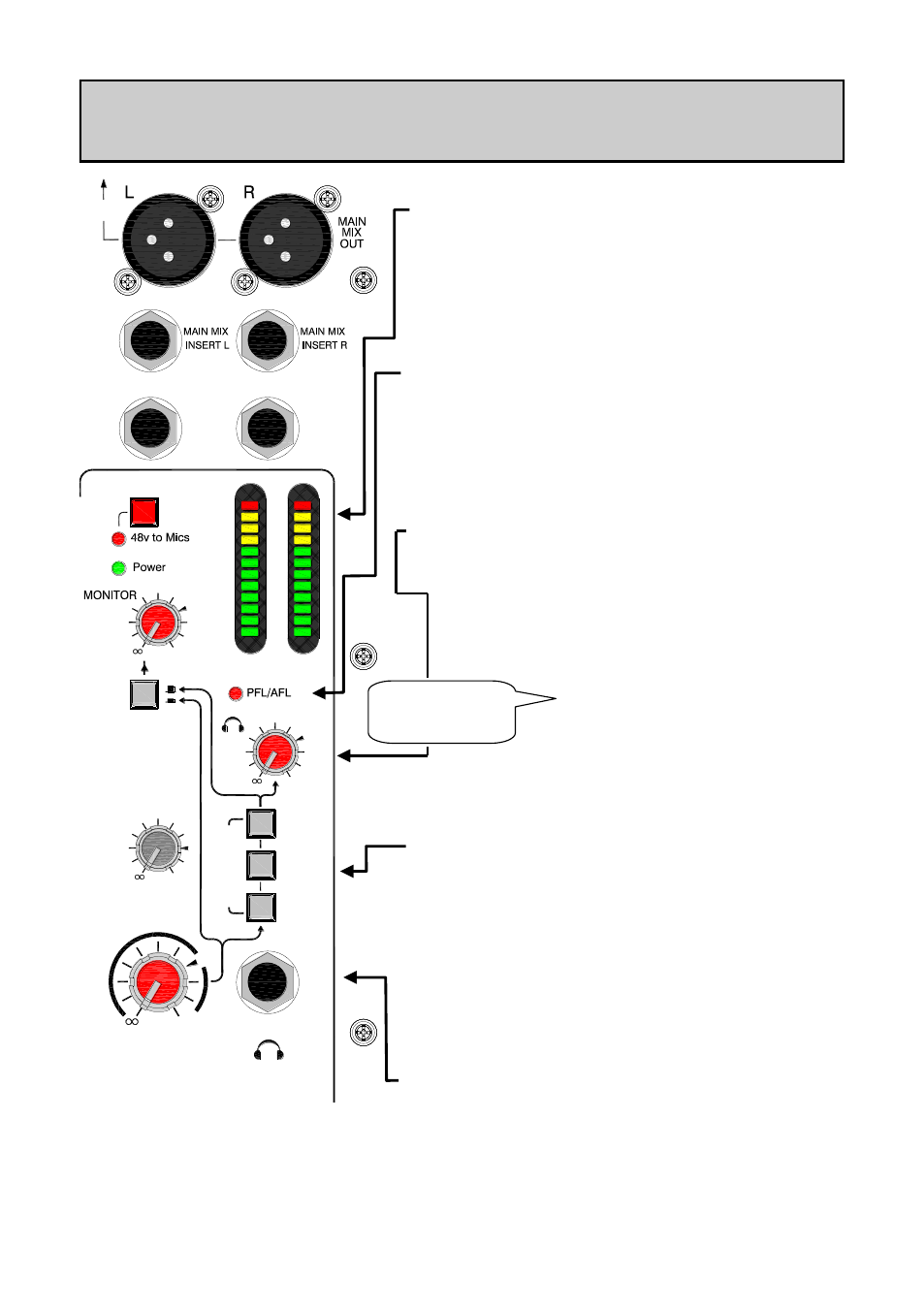

Stereo Meters
12 Segment LED meters with fast attack (4mS) and
medium decay (1S).
The meters display the signals selected by the
Phones Select switches, or the mono Listen signal
(PFL) if activated by any of the Listen switches.
MASTER SECTION
PFL (Pre-Fade Listen) active LED
A red LED to indicate a Listen switch has been
pressed on one of the channels.
Doing this will override the Phones select source to
the headphones and send the Listen signal to the
meters.
Headphones level
Controls the volume of signal to the headphones.
Warning ! To avoid damage to
your hearing do not operate the
headphones or sound system at
e x ce ss ive ly h igh volu me .
Continued exposure to high
volume sound can cause frequency
selective or wide range hearing
loss.
!
Phones Source Selector switches
These switches allow you to choose what you hear
on the headphones. With all switches up the default
is the main stereo Mix, then you can choose be-
tween the Playback input (USB Input if nothing is
plugged into the jacks), the Aux bus output, or the
Record bus output. Pressing any Listen switch will
override the selection and allow you to monitor
individual channels.
Headphones Output
Standard 1/4” (6.25mm) jack socket wired Tip=Left,
Ring=Right, Sleeve=Ground.
