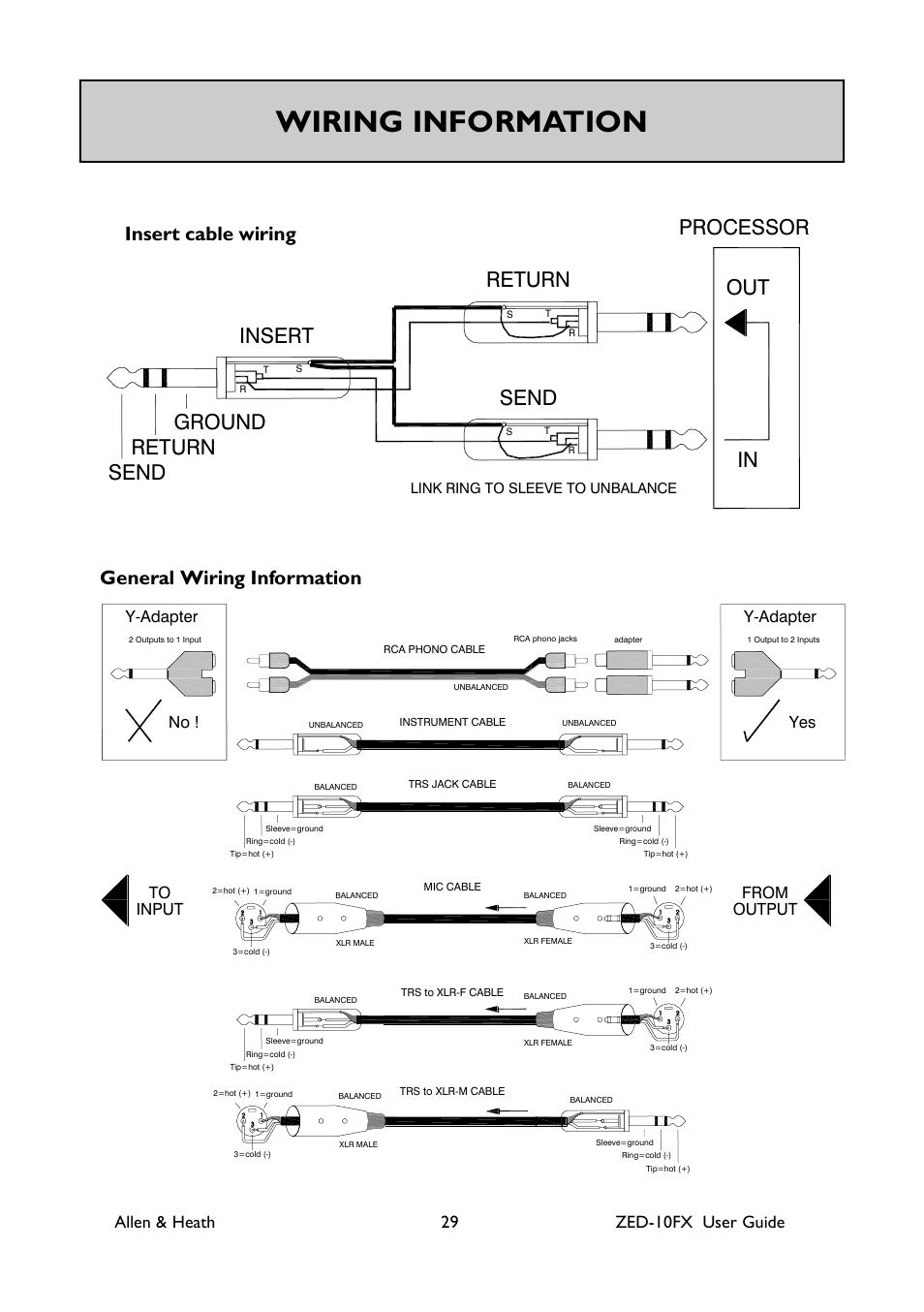

Wiring information, Insert cable wiring, General wiring information – Allen&Heath ZED-10FX User Manual
Page 29: Allen & heath 29 zed-10fx user guide, Y-adapter no, Y-adapter yes
