APPLICATION EXAMPLES

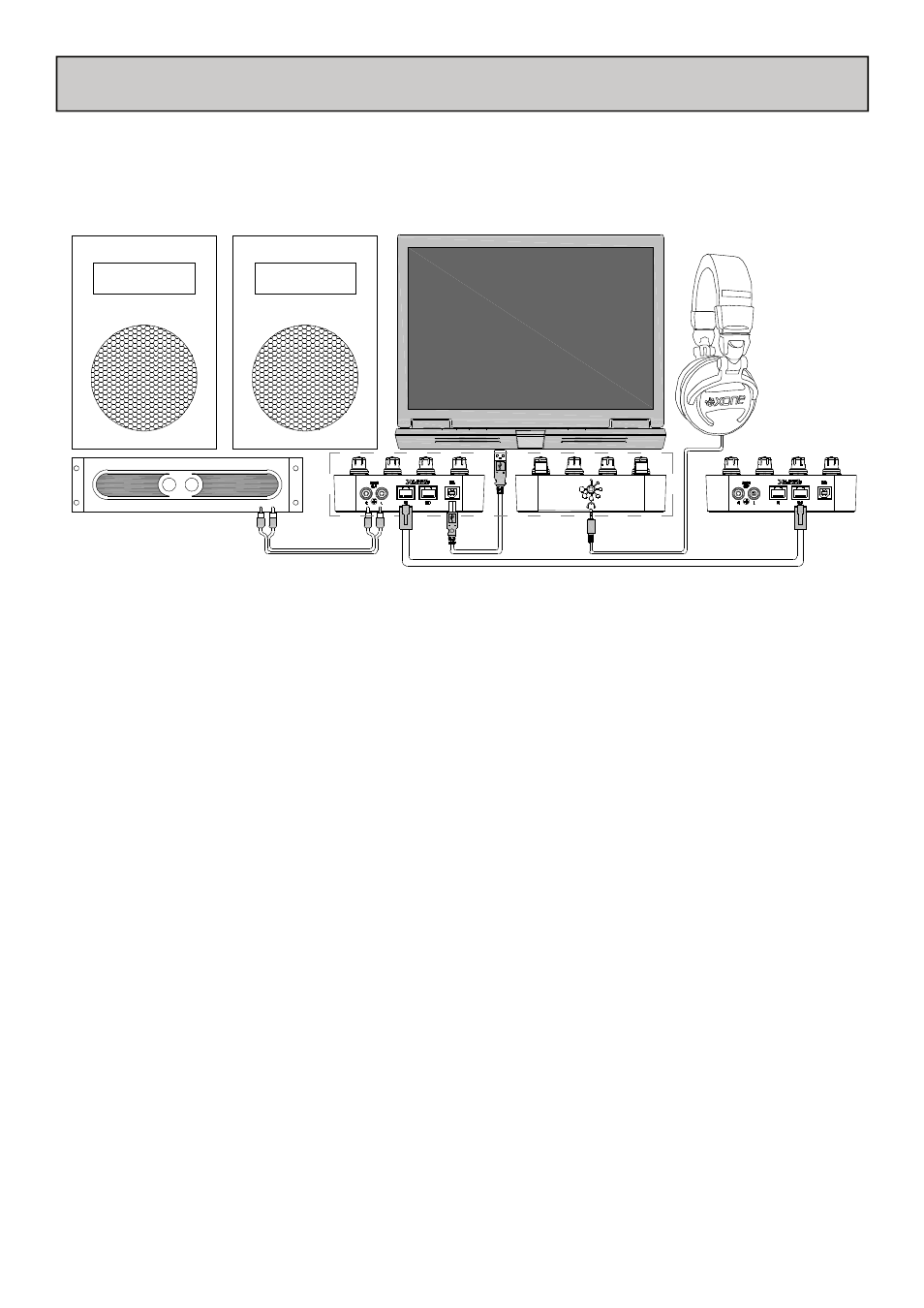

The above diagram shows a setup using two Xone:K2s. The front and rear panels are shown on the
’Master’ unit, joined by the dashed line.
In this configuration, the XONE:K2’s are linked together using the X:LINK bus. This gives twice the
amount of control but still only utilises one USB port.
The XONE:K2 Master output is wired to a speaker system.
For more information on the X:LINK setup see THE X:LINK PROTOCOL on Page 18.
PC DRIVER TYPE
In this particular application, as the Master Output and the headphones are in use, the ASIO driver
must be used.
MAC
The XONE:K2 is Class Compliant and does not need a specific driver.
SOUNDCARD MAPPING
PC ASIO:
In DAW application, set Monitor (or Cue) Output to Soundcard Output 1-2 and
Master (Mix) Output to Soundcard Output 3-4
MAC:
In DAW application, set Monitor (or Cue) Output to Soundcard Output 1-2 and
Master (Mix) Output to Soundcard Output 3-4
DUAL SETUP (PHONES AND MIX)
