iLive xDR-16 Getting Started Guide 9 AP8331 iss.2
Adding the xDR-16 expander
Auto detection
When connected for the first time, the xDR-16 looks
for a MixRack with the
default 192.168.1.1 address.
It will connect automatically if it finds it.

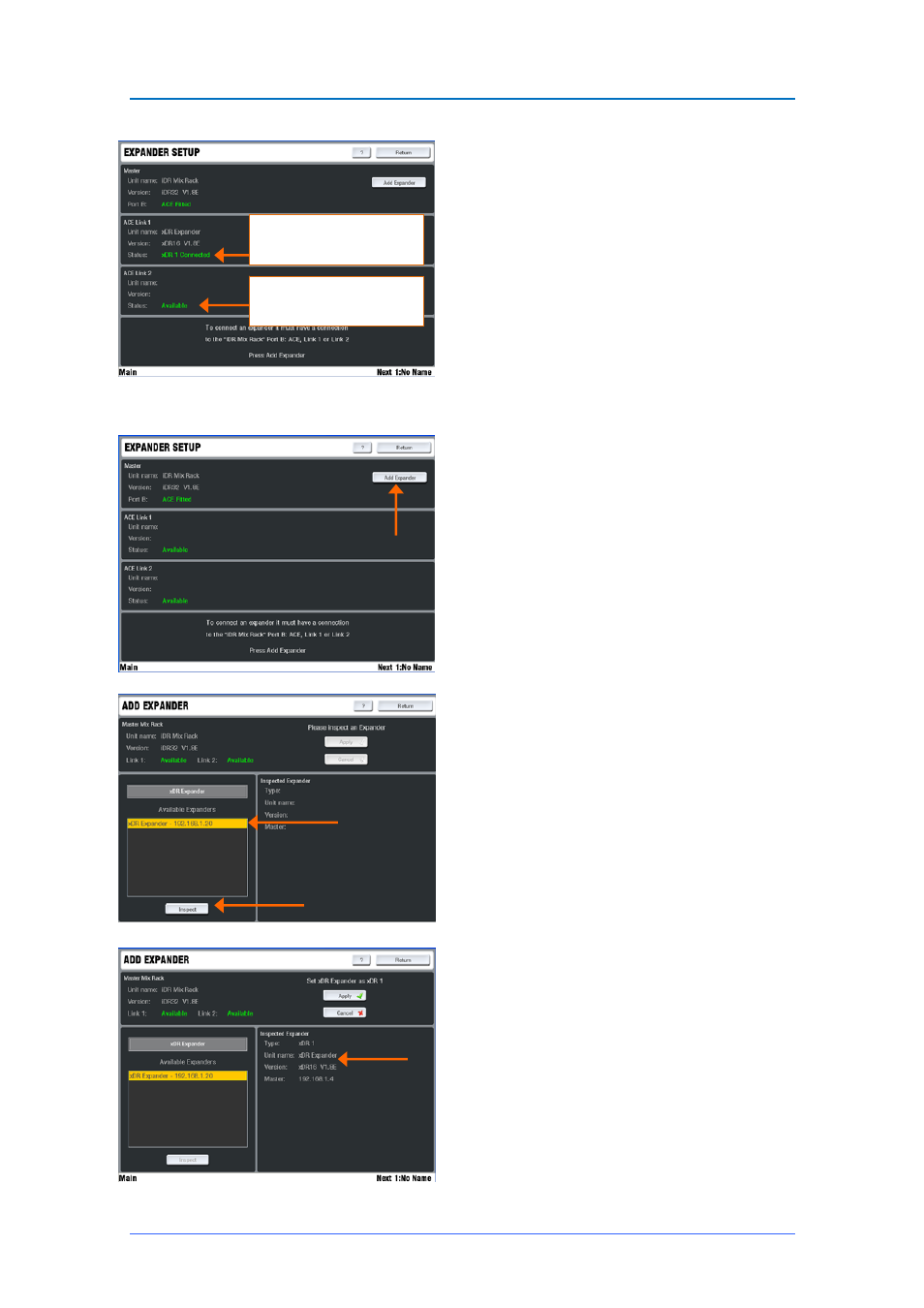

To check expander status go to the TouchScreen
UTILTY / Network / Expander Setup page.
Manually add the expanders
If the MixRack IP address is not set to its default
192.168.1.1 then you will need to add the xDR
expander manually using the TouchScreen
UTILTY
/ Network / Expander Setup page. This needs
only to be done the first time the xDR is connected
to the iLive system.
Touch the Add Expander button.
Note - If you are adding two xDR expanders then
make sure you have changed the name and IP
address of one or both so that they can be uniquely
identified on the network.
The list displays the available xDR expanders.
Highlight the one you want to add.
Touch Apply to inspect the expander.
The Inspection window displays information about
the expander.
Type Shows which ACE port it is connected to,
Unit name The network name of the expander,
Version The firmware version of the xDR-16,
Master The IP address of the MixRack it
currently points to (last MixRack connected).
To add the expander touch the Apply button.
An xDR-16 is connected
to ACE Link 1
Link 2 is available but
no expander fitted
