iLive xDR-16 Getting Started Guide 14 AP8331 iss.2

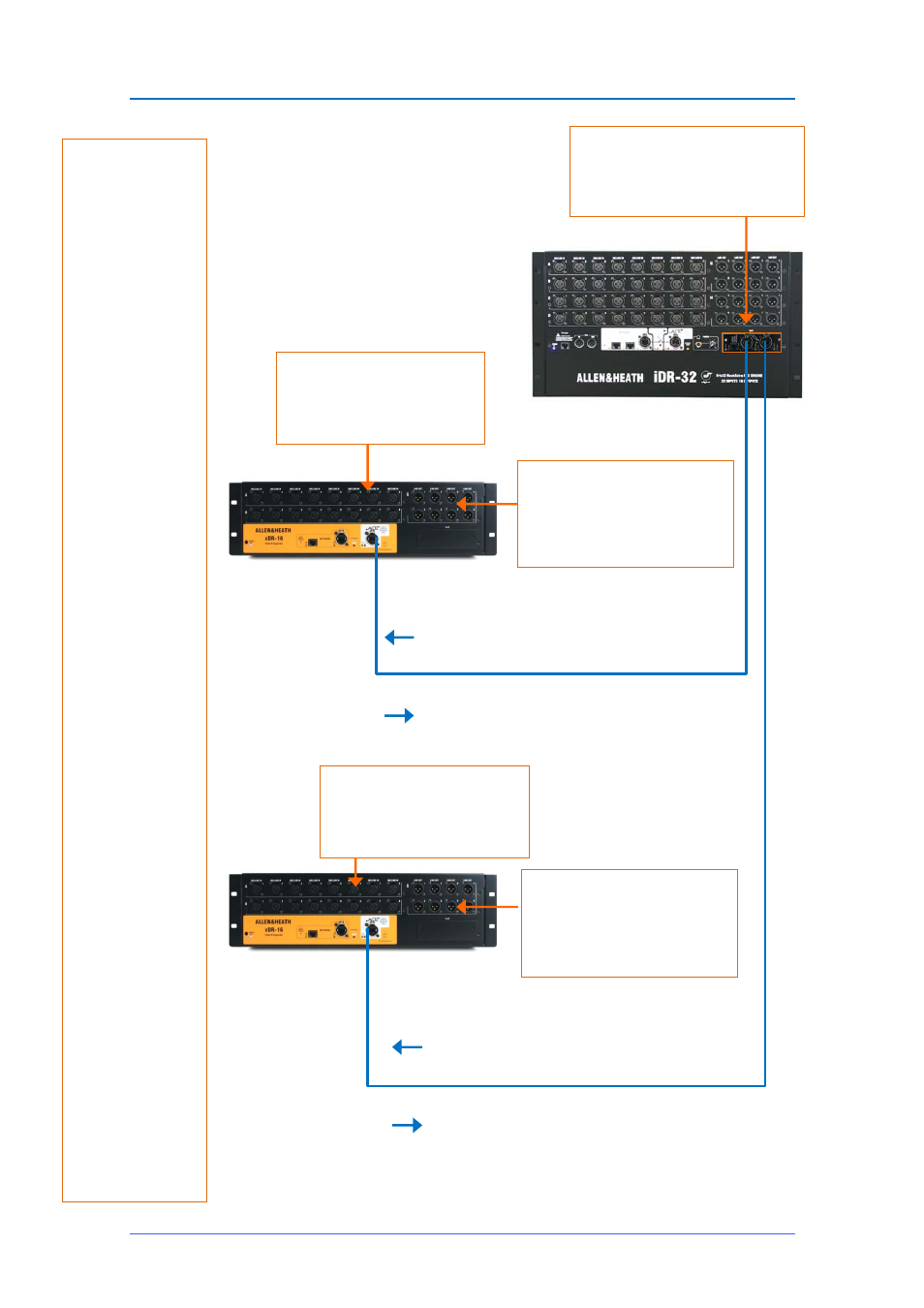

The xDR input/output routing
Master MixRack
xDR 1
xDR 2
ACE 1-64 = Map to XLR out G1-8 in block of 8
ACE 1-64 = xDR Port B out 1-64
ACE 1-16 = From Mic Preamp A1 – B8
ACE 17-64 = xDR Port B in 1-48 (One xDR expander – Mode 2)
ACE 17-32 = xDR Port B in 1-16 (Two xDR expanders – Mode 3)
ACE 1-64 = Map to XLR out G1-8 in block of 8
ACE 1-64 = xDR Port B out 1-64
ACE 33-48 = Mic Preamp A1 – B8
ACE 49-64 = xDR Port B in 1-16 (Two xDR expanders Mode 3)
MixRack Port B (ACE)
Map signals to Port B ACE using
the OUTPUTS screen.
XLR mic preamps identified:
X1-A1 to X1-B8
Port B inputs identified
X1-1 to X1-16
Choose which block of 8 ACE
channels feeds the xDR 2 XLR
outputs using the MIXRACK
SETUP / Mixer Pref /
Expanders screen.
Outputs:
Port B map 1-64.
For the
MMO card:
ACE1 = ADAT1
ACE2 = ADAT2
ACE3 = ADAT3
ACE4 = ADAT4
ACE5 = ADAT5
ACE6 = ADAT6
ACE7 = ADAT7
ACE8 = ADAT8
ACE9 = ADAT9
ACE10 = ADAT10
ACE11 = ADAT11
ACE12 = ADAT12
ACE13 = ADAT13
ACE14 = ADAT14
ACE15 = ADAT15
ACE16 = ADAT16
ACE17 = ADAT17
ACE18 = ADAT18
ACE19 = ADAT19
ACE20 = ADAT20
ACE21 = ADAT21
ACE22 = ADAT22
ACE23 = ADAT23
ACE24 = ADAT24
ACE25 = iDR A1
ACE26 = iDR A2
ACE27 = iDR A3
ACE28 = iDR A4
ACE29 = iDR A5
ACE30 = iDR A6
ACE31 = iDR A7
ACE32 = iDR A8
ACE33 = iDR B1
ACE34 = iDR B2
ACE35 = iDR B3
ACE36 = iDR B4
ACE37 = iDR B5
ACE38 = iDR B6
ACE39 = iDR B7
ACE40 = iDR B8
ACE41 = Aviom1
ACE42 = Aviom2
ACE43 = Aviom3
ACE44 = Aviom4
ACE45 = Aviom5
ACE46 = Aviom6
ACE47 = Aviom7
ACE48 = Aviom8
ACE49 = Aviom9
ACE50 = Aviom10
ACE51 = Aviom11
ACE52 = Aviom12
ACE53 = Aviom13
ACE54 = Aviom14
ACE55 = Aviom15
ACE56 = Aviom16
XLR mic preamps identified:
X2-A1 to X2-B8
Port B inputs identified
X2-1 to X2-16
Choose which block of 8 ACE
channels feeds the xDR 1 XLR
outputs using the
MIXRACK
SETUP / Mixer Pref /
Expanders screen.
