iDR MixRack Getting Started Guide 4 AP7445 iss.4

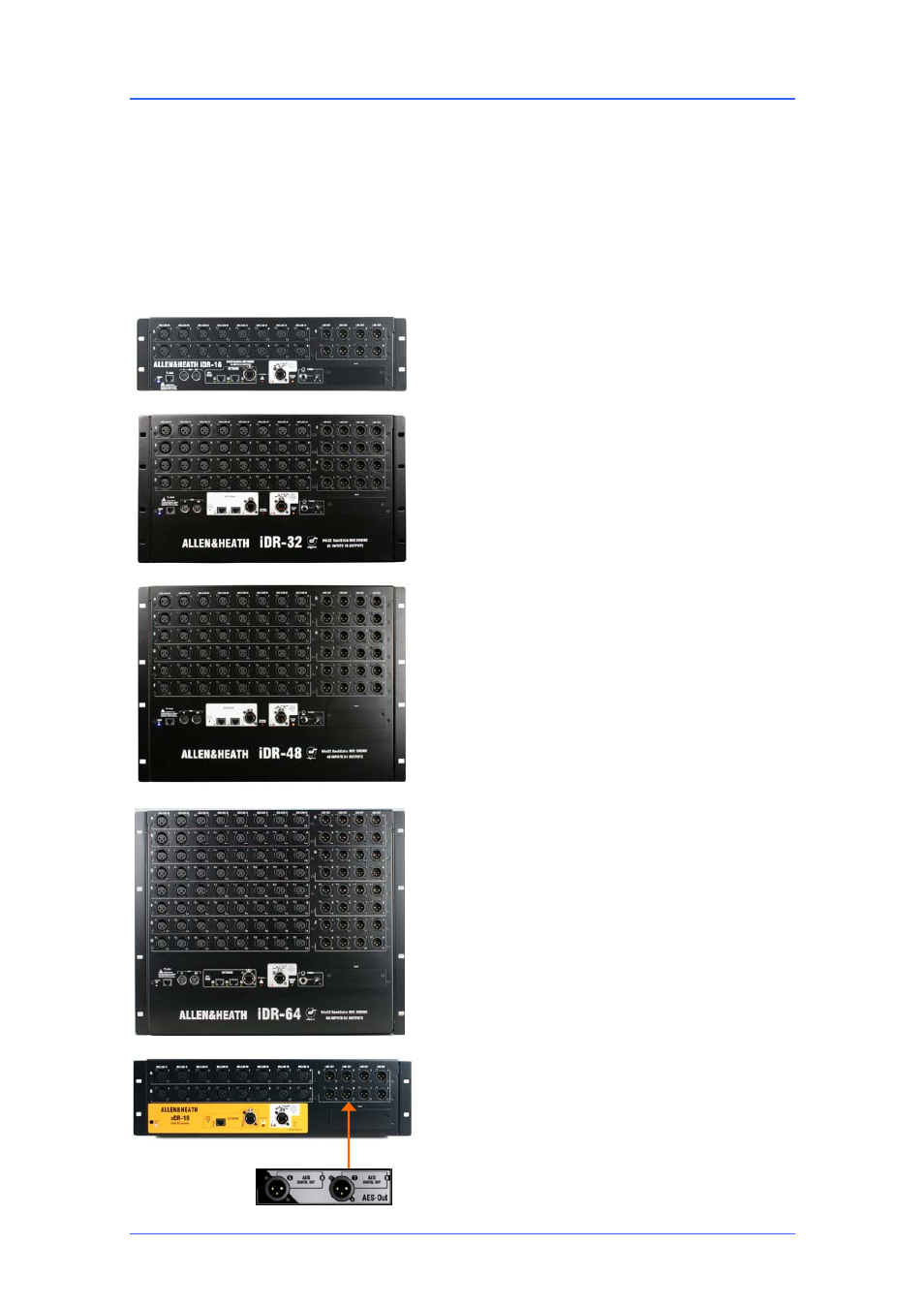

Fixed Format MixRacks
iLive has two types of MixRack – Modular and fixed format. This guide is for fixed format iLive. Refer to
the Allen & Heath web site to find out more about the modular iDR10 and iDR0 MixRacks.
There are 4 sizes of fixed format MixRack available. All feature the same 64x32, 8FX DSP mix engine and
have audio and control network capability. The difference is the number of physical input and output
sockets available. All models can work with the full 64 channels by patching additional sources via Port A
(surface audio) and Port B (expander), or by adding one or two iDR-16 expander racks via Port B.
Each size has two versions available – All analogue XLR out, or the last 4 sockets replaced with two dual
channel AES digital outputs. Existing racks can be modified to have one or more AES-Out option cards
fitted.
iDR-16 Smallest, 3U fixed format MixRack for
compact applications mixing up to 16 mics, or
FOH/Monitor systems with digital mic split.
Order codes:
IDR-16/*
16 mic/line in, 8 XLR out
IDR-16-DO/* 16 mic/line, 4 XLR, 2 dual AES
iDR-32 6U fixed format MixRack equivalent to a
32 channel console.
Order codes:
IDR-32/* 32 mic/line in, 16 XLR out
IDR-32-DO/* 32 mic/line, 12 XLR, 2 dual AES
iDR-48 8U fixed format MixRack equivalent to a
48 channel console.
Order codes:
IDR-48/*
48 mic/line in, 24 XLR out
IDR-48-DO/* 48 mic/line, 20 XLR, 2 dual AES
iDR-64 Largest, 9U fixed format MixRack
equivalent to a 64 channel console.
Order codes:
IDR-64/*
64 mic/line in, 32 XLR out
IDR-64-DO/* 64 mic/line, 28 XLR, 2 dual AES
xDR-16 I/O expander rack adding more input
and output sockets plus a Port B card slot.
Requires ACE
TM fitted to MixRack Port B.
Order codes:
XDR-16/* 16 mic/line in, 8 XLR out
XDR-16-DO/* 16 mic/line, 4 XLR, 2 dual AES
AES-Out option Existing MixRacks can be
upgraded to replace one or more I/O cards to
provide AES digital outputs. The rack must be
running firmware V1.9 before the card is fitted. This
work should be carried out by a service agent.
Order code:
004-388KIT
AES digital out option kit
8 mic/line, 2 dual channel AES
