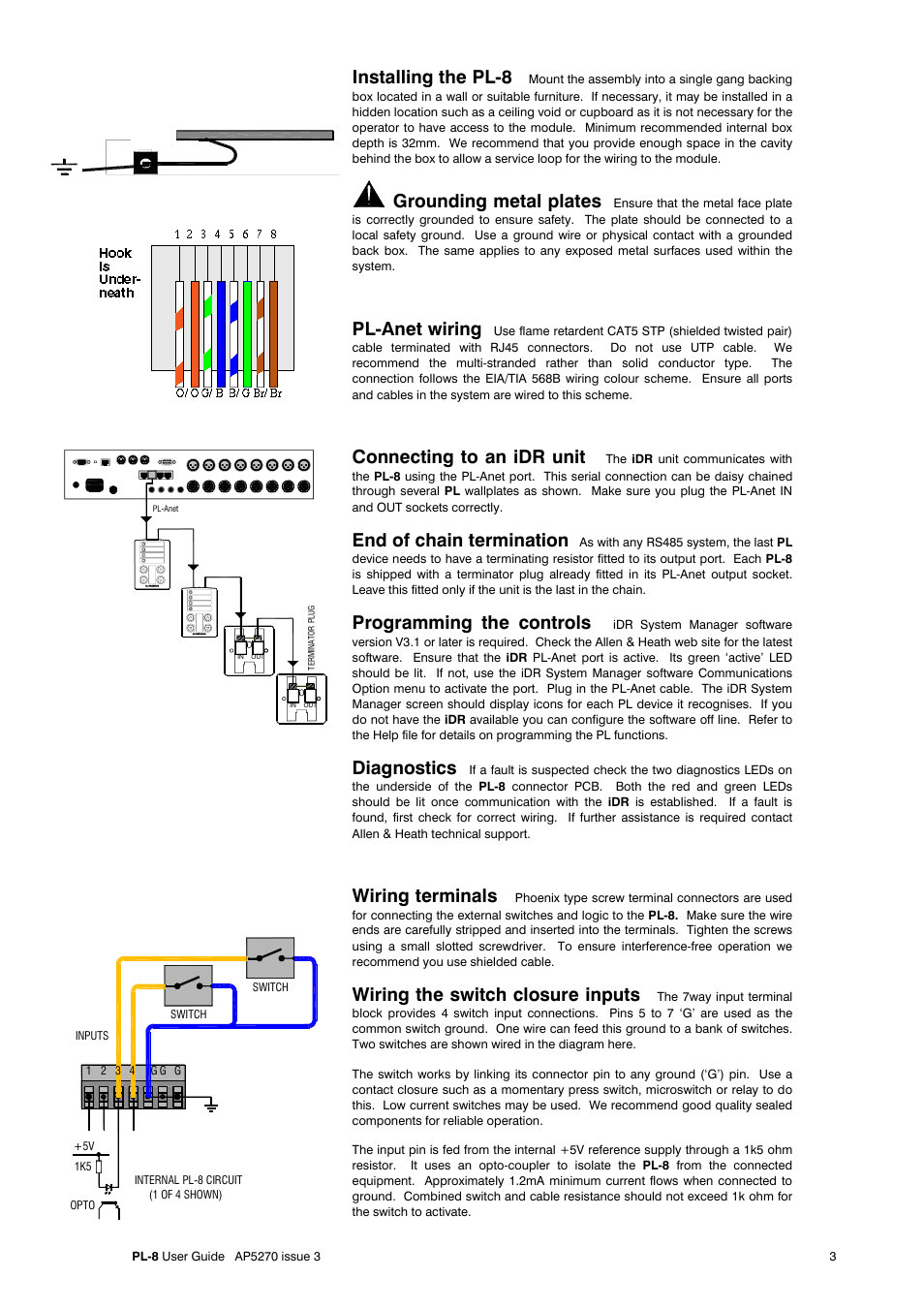

Installing the pl-8, Grounding metal plates, Pl-anet wiring – Allen&Heath PL-8 User Manual
Page 3: Connecting to an idr unit, End of chain termination, Programming the controls, Diagnostics, Wiring terminals, Wiring the switch closure inputs
