4 IDR-in/out User Guide AP4774

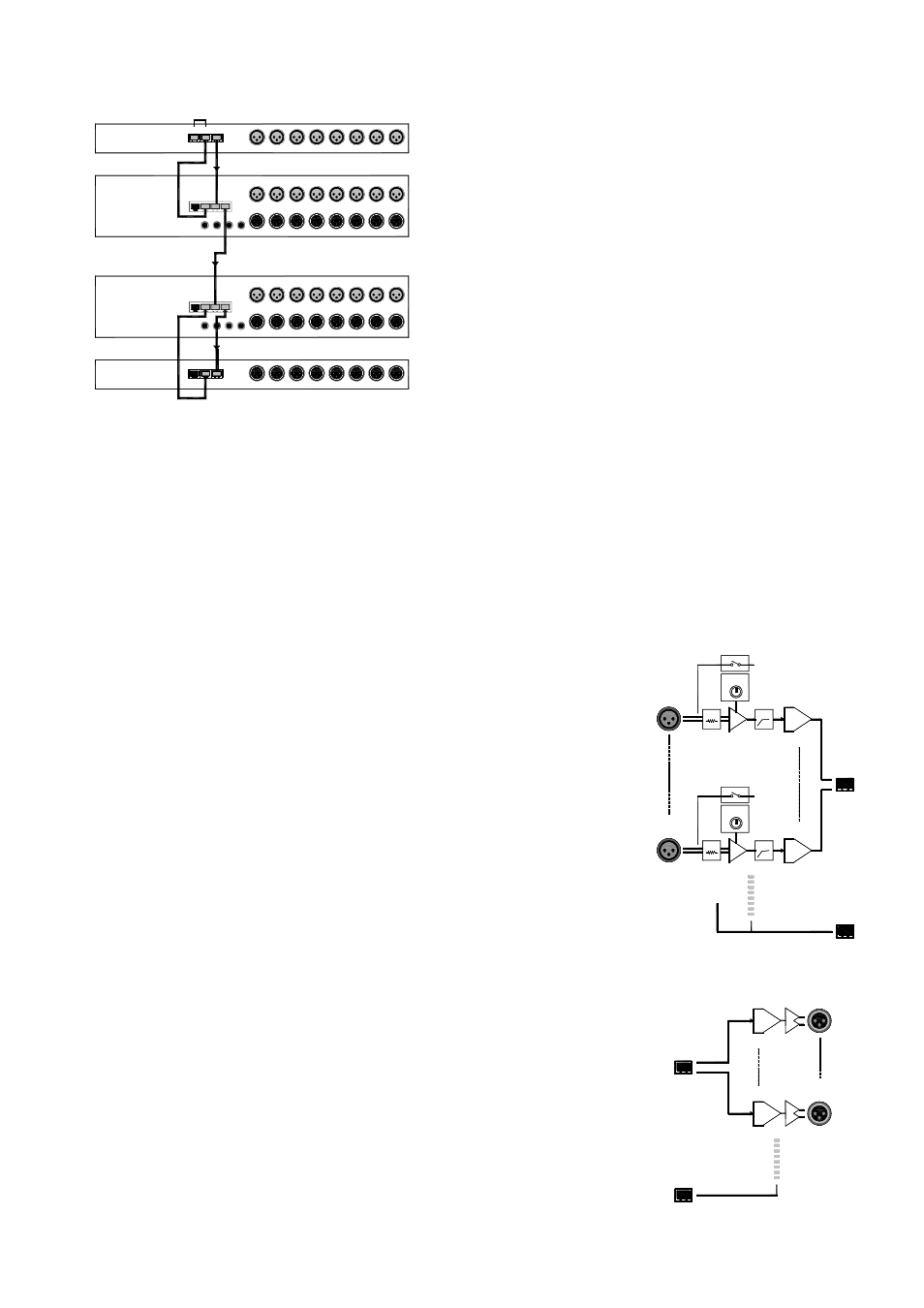

Expanded multiple iDR system
This diagram
shows an iDR system with two iDR-8 units and both expanders
fitted. A system could also be created with iDR-4 units or a mix
of iDR4 and iDR-8 units. DR-Link is only required to connect to
the expanders, not between the main units. Make sure you
connect DR-Link to the iDR associated with each expander.
Make sure you plug into the correct DR-Link socket. In this
case do not daisy chain DR-Link from one expander to the
other.
Use CAT5 STP cable. Maximum cable length is 250 metres.
Maximum audio matrix is 16x16. The audio link cable carries 8
channels. This can provide a distributed system with 8
common channels and 8 local channels at each unit.
IN
DR-
LINK
DR-
LINK
DR
-LINK
AU
DIO
IN OUT
IN OUT
iDR Unit A 8A 7A 6A 5A 4A 3A 2A 1A
8 7 6 5 4 3 2 1
IN
OUT
IN OUT
iDR Unit B 8B 7B 6B 5B 4B 3B 2B 1B
8 7 6 5 4 3 2 1
IN
OUT
OUT iDR-in
16A 15A 14A 13A 12A 11A 10A 9A IN
DR-
LINK
iDR-out
16B 15B 14B 13B 12B 11B 10B 9B OUT
Mic/Line Inputs x8
Female 3pin XLR
Electronically balanced, pin 2 hot
Impedance 2k (pad out),>10k ohm (pad in)
Sensitivity -50dBu to +5dBu
Gain range -15 to +50dB in 3dB steps
Pad -20dB
Sensitivity (pad out) -50 to -5dBu
Sensitivity (pad in) -30 to +15dBu
Maximum input level +33dBu
Pre converter soft limiter -4dBFS, switchable
Phantom power +48V DC switched
Line Outputs x8
Male 3pin XLR
Electronically balanced, pin 2 hot
Impedance <75 ohms
Maximum output +18dBu
Expander Input / Output Port
RJ45 connector
Proprietary 8 channel digital audio
Connects to iDR-4 or iDR-8 main unit
CAT5 STP cable up to 250 metres (825 feet)
Converters
24bit resolution
A/D dynamic range 109dB A-weighted
106dB unweighted
D/A dynamic range 115dB A-weighted
112dB unweighted
DR-Link Port
Serial control of iDR expander units
Proprietary Allen & Heath control protocol
RJ45 connector
IN and OUT ports provided to allow daisy
chaining through multiple units
CAT5 STP cable up to 300 metres (1000 feet)
Performance
Frequency response 20Hz-20kHz +0/-0.5dB
Crosstalk <-80dB @ 1kHz, 0dB gain
THD+noise <0.01% @ 1kHz, 0dBu
Residual output noise <-93dBu
Input to output noise @ 0dB gain <-87dBu
Input to output noise @ 50dB gain <-73dBu
Latency <2.4ms expander XLR to/from iDR XLR
This is <0.084ms additional to iDR
Status LEDs
Power –mains power on
Link – iDR-Link control communicating
Lock –audio communicating
Soft LEDs
Assignable by the installer
iDR-in 8x front panel
iDR-out 8x front panel
3-colour – green, yellow, red, off
Function 3-colour signal meters
Mute on/off
Static patch related
Power Supply
Universal mains input switched mode design
IEC 3pin
Country dependent mains lead supplied
Rear panel power on/off switch
AC mains input 100-240V AC 50/60Hz
25VA max
Fuse T500mAL 20mm
Mechanical
1U rack 483 x 232 x 44mm
19” x 9.1” x 1.7”
Desk 443 x 232 x 48mm
17.4” x 9.1” 1.9”
Weight 3.5kg, 7.7lbs
GAIN
+48V
PAD LIMIT
ANALOG
AUDIO OUT
1
8
iDR-in
DR-LINK
DAC
OUTPUT 1
ANALOG
AUDIO IN
CONTROL
SOFT LEDs 1-8
CONTROL
SOFT LEDs 1-8
DR-LINK
1
8
LIMITERS
PREAMPS AND
iDR-out
INPUT 8
+
- ADC
GAIN
+48V
PAD LIMIT
ANALOG
DAC
OUTPUT 8
ANALOG
INPUT 1
+
- ADC
