iDR D-in/out User Guide AP6636 1

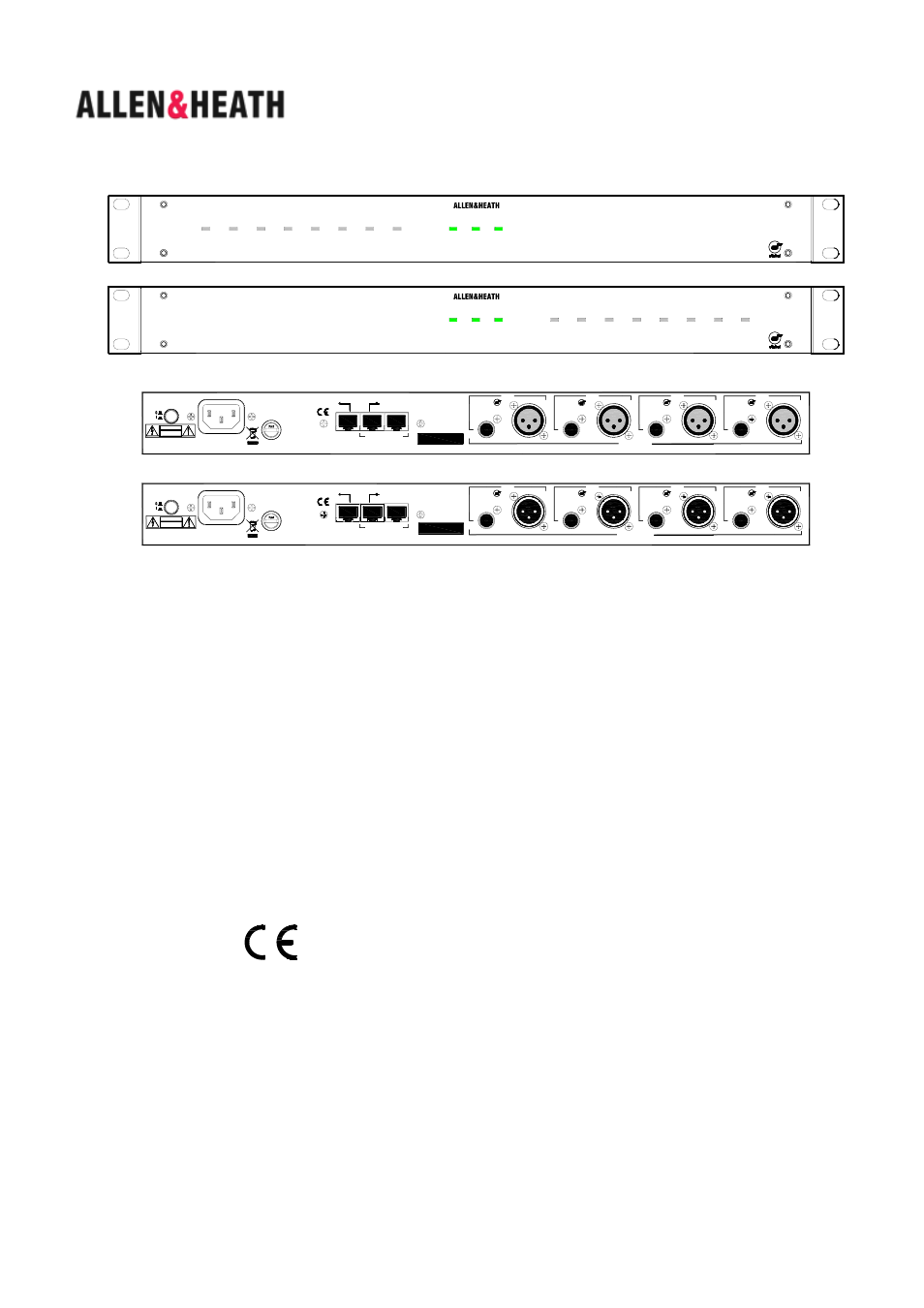

iDR D-in and iDR D-out are add-on digital audio expander units for the Allen & Heath iDR-4 and iDR-8 audio mix
processors. They provide AES3 and SPDIF format digital audio inputs and outputs to add to the analogue audio
connections on the main unit. The iDR D-in has 8 inputs arranged as 4 pairs. Either the AES3 (XLR) or the SPDIF
(RCA phono) input may be selected for each pair. The iDR D-out has 8 outputs arranged as 4 pairs. These provide
AES3 and SPDIF outputs simultaneously available. Only one input and one output expander may be added to the iDR
system bringing it up to a maximum 16x16 audio matrix. This may be any combination of the analogue and digital
expanders available for the iDR system. These units do not have any processing built in. They simply convert the
AES3 and SPDIF formats to work with the 8 channel wide iDR digital bus which feeds the main unit via a CAT5 STP
cable. The processing and mixing is handled by the main iDR-4 or iDR-8 unit which features the full 16x16 DSP matrix.
The iDR System Manager software is used to select either the AES3 or the SPDIF connection for each expander input
pair. Both expander units have 8 front panel LEDs in addition to the 3 status indicators. These are 3-colour soft LEDs
which can be assigned as audio meters, mute indicators or patch related indicators. They are programmed in the
usual way using the iDR System Manager software. Control of the expanders is via the DR-Link port using a CAT5 STP
cable. This means that two CAT5 cables are required to interconnect an expander to the main unit. Maximum distance
between the units is 250 metres. Local mains power is required.
This product complies with the European Electromagnetic
Compatibility directives 89/336/EEC & 92/31/EEC and the
European Low Voltage Directives 73/23/EEC & 93/68/EEC.
NOTE: Do not remove the cover of the unit. There are no user serviceable
parts inside. Any changes or modifications to the equipment not approved by
Allen & Heath could void the compliance of the equipment and therefore the
users authority to operate it.
iDR D-in/out User Guide AP6636 Issue 1
Copyright © 2008 Allen & Heath Limited. All rights reserved
Whilst we believe the information in this guide to be reliable we do not assume
responsibility for inaccuracies. We also reserve the right to make changes in
the interest of further product development.
iDR D-in/out DIGITAL EXPANDERS
AP6636
User Guide
AES IN
1
AES IN
2 3
AES IN
4
AES IN EXPANDER INPUTS
previous
DIGITAL INPUTS
Made in the UK by ALLEN&HEATH LIMITED
DIGITAL EXPANDER
AUDIO OUT OUT DR-LINK IN ALLEN&HEATH
47-63Hz ~ 25W MAX
100 - 240V~ S/N
250V
FUSE: T500mA L
20mm iDR D-in
next
S/PDIF IN S/PDIF IN S/PDIF IN S/PDIF IN
REPLACE FUSE WITH SAME TYPE AND RATING.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE
ATTENTION: REMPLACER PAR UN FUSIBLE STRICTEMENT IDENTIQUE EN VALEURS.
THIS APPARATUS MUST BE EARTHED. CET APPAREIL DOIT ETRE MIS A LA TERRE
DO NOT OPEN
CAUTION
RISK OF ELECTRIC SHOCK
AVIS: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR.
Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan
Apparatet må tilkoples jordet stikkontakt
Apparaten skall anslutas till jordat uttag
iDR D-in
DIGITAL AUDIO INPUT EXPANDER
THIS APPARATUS MUST BE EARTHED. CET APPAREIL DOIT ETRE MIS A LA TERRE
DO NOT OPEN
CAUTION
RISK OF ELECTRIC SHOCK
AVIS: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR.
Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan Apparatet må tilkoples jordet stikkontakt
Apparaten skall anslutas till jordat uttag
REPLACE FUSE WITH SAME TYPE AND RATING.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE
ATTENTION: REMPLACER PAR UN FUSIBLE STRICTEMENT IDENTIQUE EN VALEURS.
power lock link
lock link power iDR D-out
DIGITAL AUDIO OUTPUT EXPANDER
FUSE: T500mA L
250V 20mm
DIGITAL OUTPUTS
EXPANDER OUTPUTS
previous
AUDIO IN DR-LINK OUT
DIGITAL EXPANDER
IN
Made in the UK by ALLEN&HEATH LIMITED
S/N
iDR D-out
ALLEN&HEATH
100 - 240V~
47-63Hz ~ 25W MAX
next
AES OUT
4 3 2 1
AES OUT AES OUT AES OUT
S/PDIF OUT S/PDIF OUT S/PDIF OUT S/PDIF OUT
