LAMP SOCKETS
PHONES SOCKET
The Range
• ML3000-24 24 mono, 2 stereo inputs
• ML3000-32 32 mono, 2 stereo inputs
• ML3000-40 40 mono, 2 stereo inputs
• ML3000-48 48 mono, 2 stereo inputs
• ML3000-24B 20 mono, 6 stereo inputs
• ML3000-32B 28 mono, 6 stereo inputs
• ML3000-40B 36 mono, 6 stereo inputs
• ML3000-48B 44 mono, 6 stereo inputs
• RPS11 3U Power Supply Unit
• 002-223 2.8 metre DC power lead
• AP2725 RPS11 Power Supply User Guide
• AP4511 ML3000 Service Manual
• AL4061 Gooseneck lamp 18” LEDlamp
For early models:
• RPSD2 Power Supply Combiner
• AP2263 RPSD2 combiner User Guide

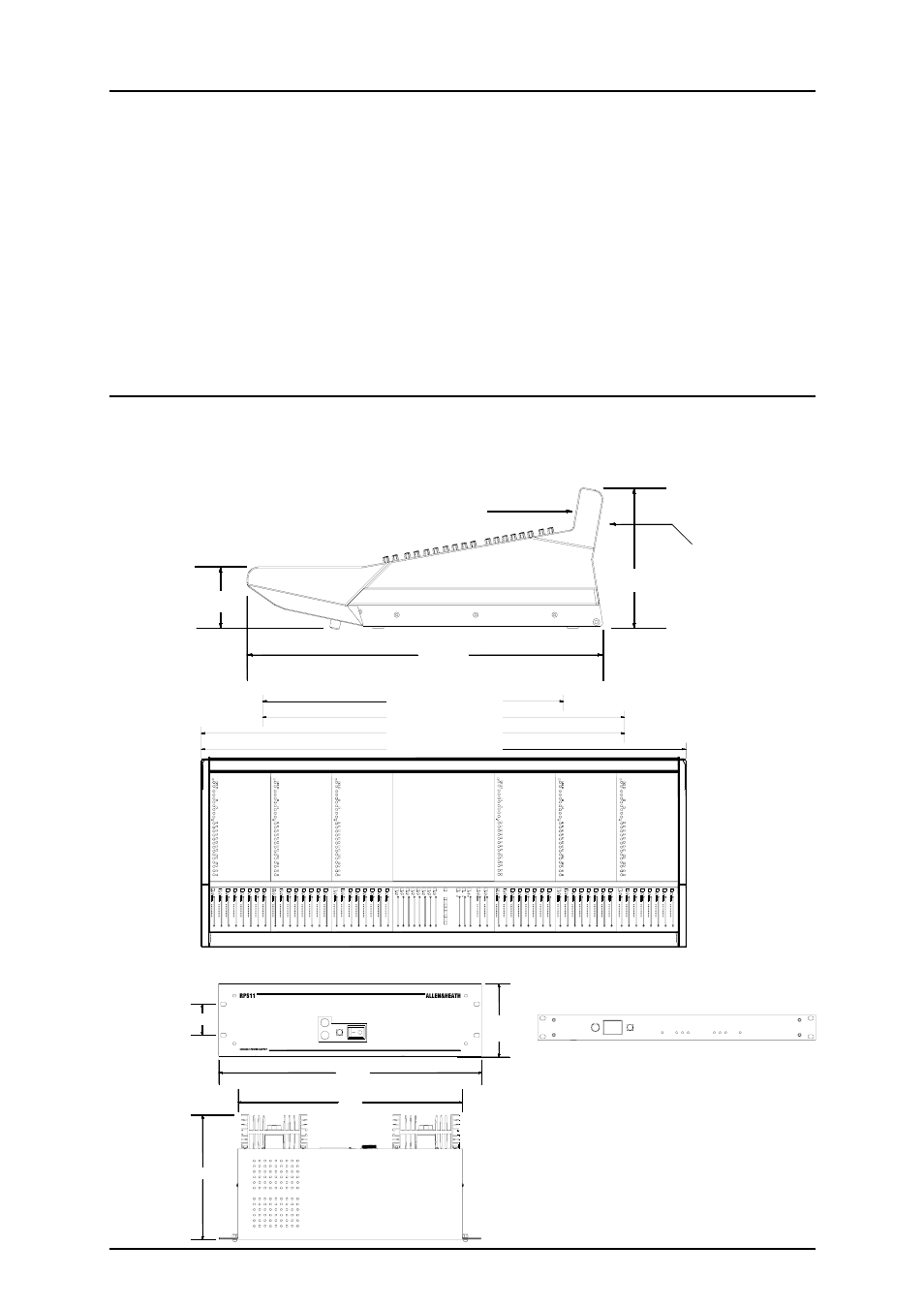

Installation Details
Weights 24 Channel 34 kg (75 lbs)
32 Channel 41 kg (90 lbs)
40 Channel 48 kg (106 lbs)
48 Channel 55 kg (121 lbs)
RPS11 psu 9.5 kg (21 lbs)
For early models: Refer to the RPSD2
user guide for instructions on linking
two RPS11 power supplies for
redundant supply backup.
Refer to the power supply user guide
for safety and installation instructions.
Heed all warnings printed in the user
guide and on the power unit.
482.6
134
417
FC 57
229
(3U)
ML3000-24 = 1141
ML3000-48 = 1906
ML3000-40 = 1651
ML3000-32 = 1396
