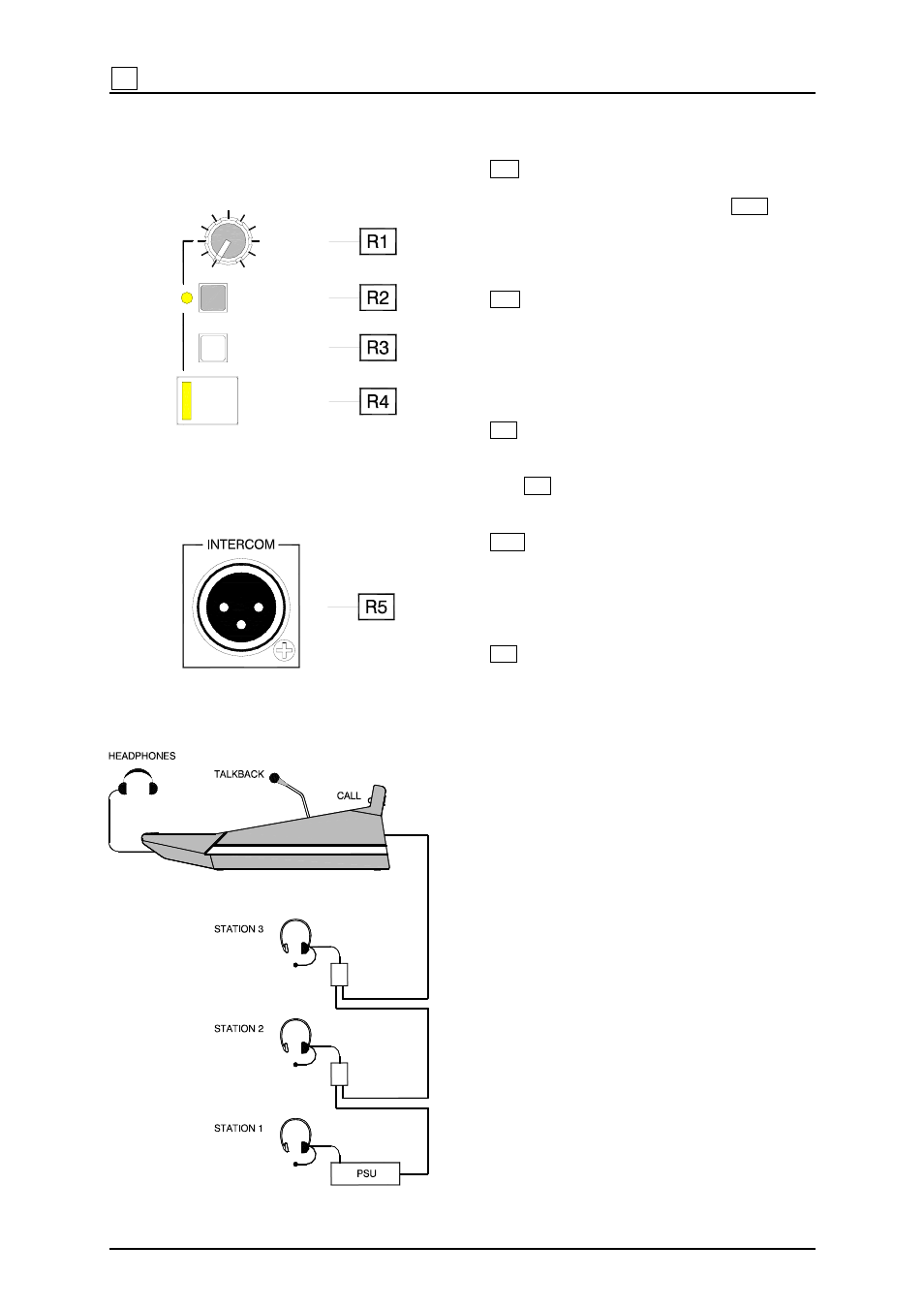

R INTERCOM
R1 INTERCOM TRIM. Adjusts the level of the
intercom signal in the console headphones. This is
not affected by the PHONES level O8 . The
console monitor and intercom listen signals are
independently controlled.
R2 LISTEN. Press this switch to route the
intercom signal to the console headphones. You
can choose when you want to listen in to the
intercom. This prevents background noise when
you are trying to monitor the console signals.
R3 CALL. Press this momentary action switch to
signal the intercom. This lights the call lamps on all
connected intercom stations as well as the CALL
lamp U1 in the meterpod.
R4 TALK TO INTERCOM. Press this
momentary switch to talk to all connected intercom
stations. It does not affect any of the console
outputs.
R5 CONNECTOR. Rear panel 3-pin XLR female
socket. Connect to the intercom ring using a 2 core
shielded audio cable such as a microphone cable.
The Intercom Explained
A Clearcom compatible interface is built into the
console. This industry standard intercom system
provides two way talk and signal communication so
that technicians and stage crew can communicate
during set up and performance. It uses a three wire
connection such as a microphone cable. The
intercom interfaces with the talkback mic and
console headphones system. This avoids the
difficulty faced by operators in checking problem
sources such as radio mics in the console
headphones while communicating with stage crew
via a separate intercom headset.
It is useful to be able to turn off the intercom audio
while checking console signals and to reduce
unwanted background audio while running the
show. A large yellow lamp in the meterpod lights to
attract the attention of the operator when the
intercom is being signalled, especially useful if
LISTEN is turned off.
The controls are logically grouped near the talkback
section for easy single handed operation of the
listen, signal and talk functions.
LISTEN
TRIM
max min
TALK TO
INTERCOM
CALL
INTERCOM
