SPECIFICATIONS
0 dBu = 0.775 Volts rms 0 dBV = 1 Volt rms
HEADROOM: .............................. +21dB channels CROSSTALK: Referred to driven channel at 1kHz
+23dB mix to output Channel fader off................................................<-90dB
Channel off <-90dB
MAX OUTPUT:............................. XLR +27dBu 600 ohm max load
jack +21dBu 2kohm max load NOISE: Measured rms 22Hz to 22kHz bandwidth
Mic input EIN referred to 150 ohm source .........<-128dB
METERS: ........L, R...................... peak reading 12 segment LED LR output residual noise.....................................<-97dBu 101dB S/N
LR faders unity mix noise ..................................<-84dBu 88dB S/N
PEAK LEDs: ................................ Turn on 5dB before clipping
POWER SUPPLY:........................ internal
FREQUENCY RESPONSE: 20Hz to 50kHz +0/-1dB AC Mains input: IEC socket with lead supplied
100 to 240V AC @ 50/60Hz
DISTORTION: THD+Noise at +14dBu 1kHz factory wired to country voltage
Channel to mix output.........................................0.008% Power consumption...................... 30W max
Mains Fuse rating: ....................... 100-120VAC use T630mA 20mm
WEIGHT: unpacked 12kg, packed 14kg 220-240VAC use T315mA 20mm

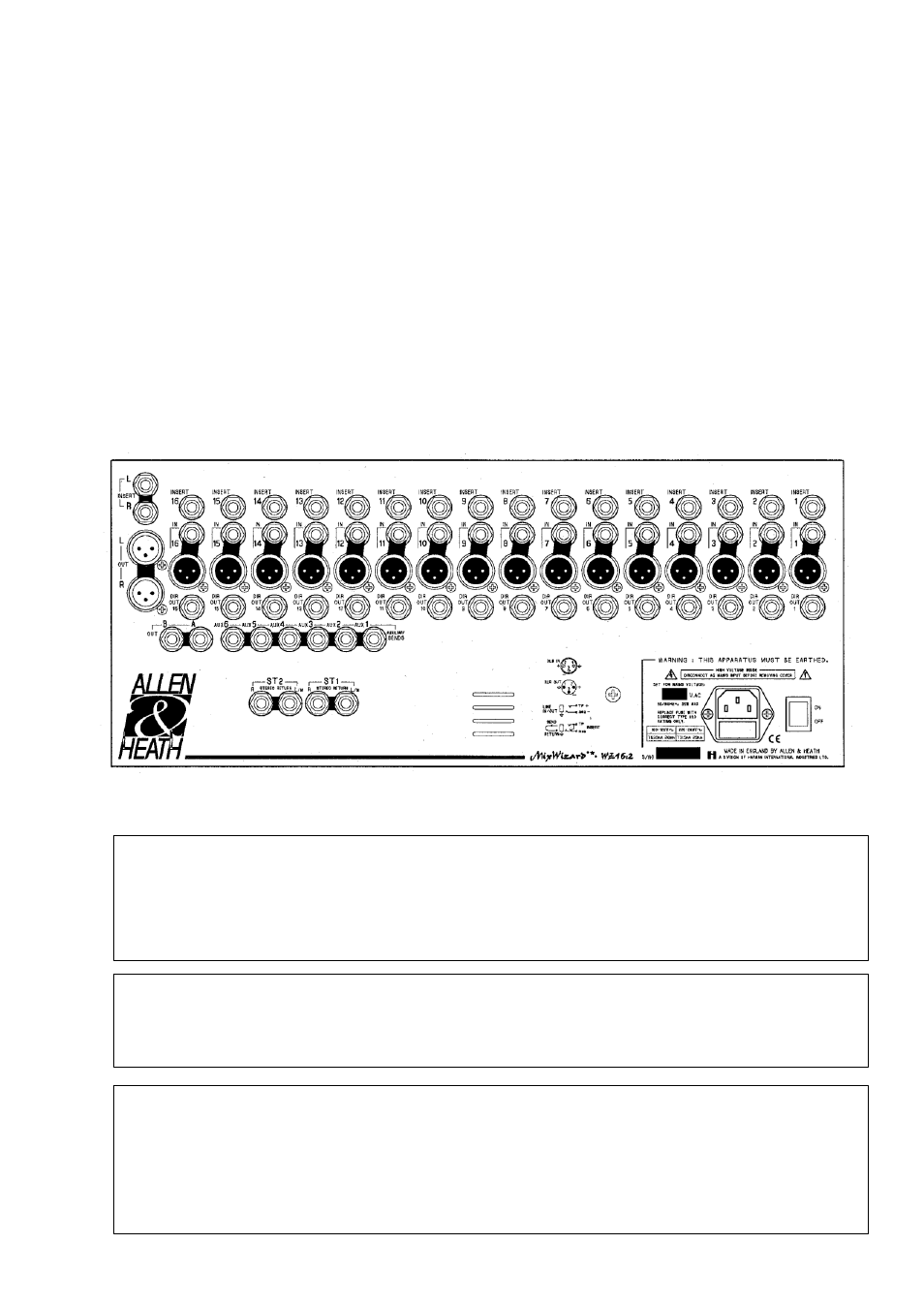

CONNECTIONS
INPUTS:
Channel 1-16 IN ............. XLR............................pin 2 hot, 3 cold, balanced
TRS jack.....................tip hot, ring cold
PAD out ............ 2 k ohm .......... variable -60 to -20dBu
PAD in ............... >10k ohm........ variable -30 to +10dBu
Stereo Return IN..............TRS jack.....................tip hot, ring cold ........................ >10k ohm........-10dBV (+4dBu option)
INSERTS:
Channel 1-16 Insert......... TRS jack....................tip send, ring return, unbal .................... <75 ohm, >10k ohm.... 0dBu
L-R mix ............................ TRS jack....................tip send, ring return, unbal .................... <75 ohm, >10k ohm.... -2dBu
OUTPUTS:
L-R main OUT ................XLR ............................ pin 2 hot, 3 cold, balanced ....................<75 ohm ..........+4 dBu
A-B additional OUT.........TRS jack..................... tip hot, ring cold, impedance bal ............<75 ohm ..........-2dBu
Aux 1-6 OUT...................TRS jack..................... tip hot, ring cold, impedance bal ............<75 ohm ..........-2dBu
Balance option for A -B and Aux 1-6 OUT ................................. <75 ohm...........+4dBu
Direct 1-16 OUT .............TRS jack..................... tip hot, ring cold, impedance bal ............<75 ohm ..........0dBu
PHONES OUT................TRS jack..................... tip left, ring right ........... for stereo headphones 30 to 600 ohms
