STEP 8
Turn off supply power before wiring ALL1000RM motor switch. Turn off motor switch in square box.
Wire motor switch with 110V wiring. The 110V motor feed must be kept separate from 110V light switch
leg. Keep motor and light neutrals separate. Motor neutral is white and 14 gauge. Only wire motor switch
at this time. See Diagram G.
Never wire the ALL1000RM improperly. Make sure electricity is turned off when installing and/or
performing maintenance on the ALL1000RM. Improper wiring and/or electricity could cause death,
personal injury, and/or property damage.
Do Not Wire Light
Switch At This Time
10 awg
Light Neutral
14 awg
Motor Neutral
14 awg
Motor Hot
110V Incoming
Hot For Motor

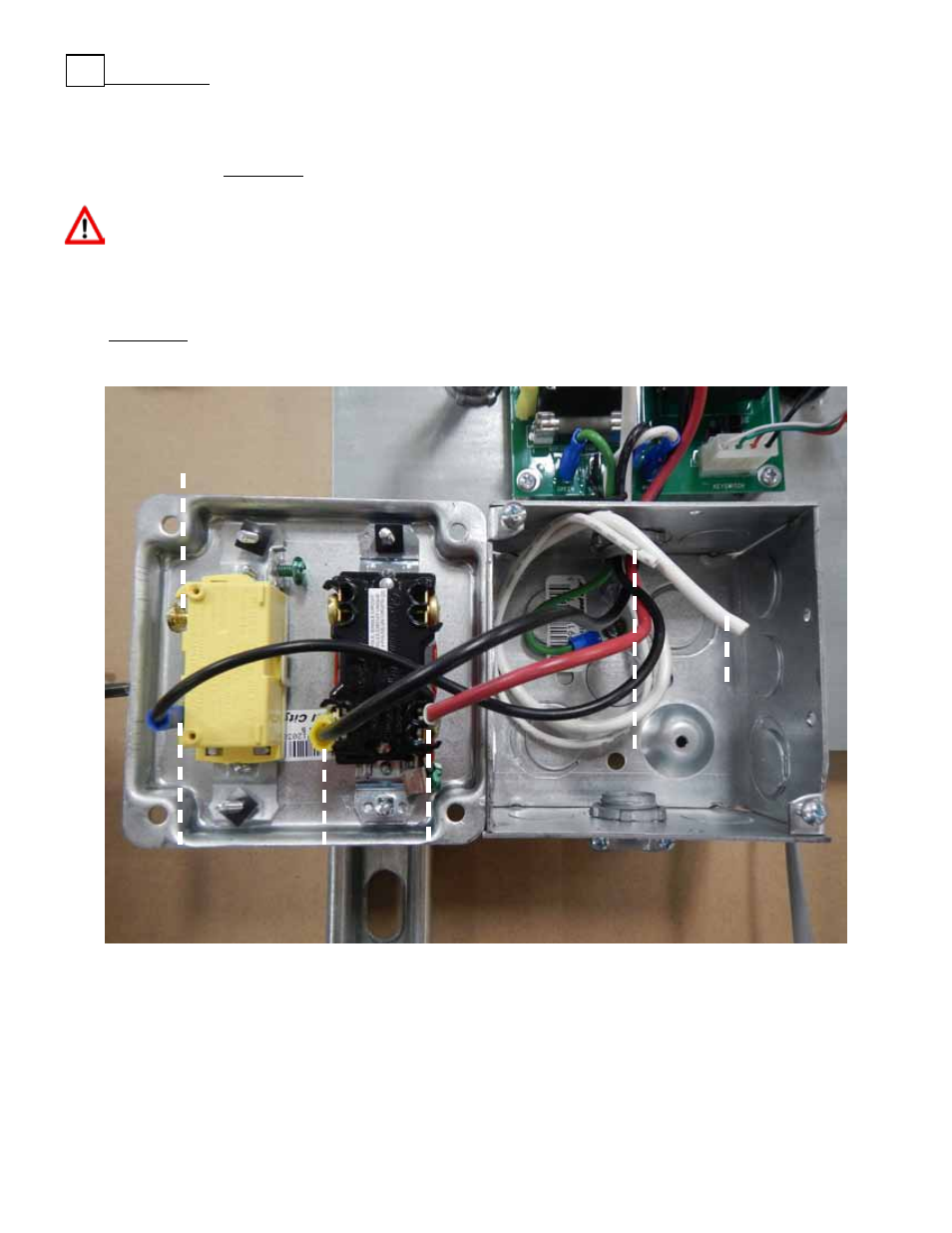

Diagram G
Black
12 awg
Light Hot
Circuit 1
Red
12 awg
Light Hot
Circuit 2
