AirLive WMM-3000AP Use

r’s Manual

successfully.

Support Type:

The AP supports the types of 802.1x Authentication:

PEAP-CHAPv2 and PEAP-TLS.

Note.

1.PC1 is on Windows XP platform without Service Pack 1.

2.PC2 is on Windows XP platform with Service Pack 1a.

3.PEAP is supported on Windows XP with Service Pack 1 only.

4.Windows XP with Service Pack 1 allows 802.1x authentication only when data encryption

function is enable.

Appendix C WDS Setting

How to setup and work:

First, check the Wlan-mac address of AP1,AP2 and AP3.Please goto command mode and use

“Arp –a ”.

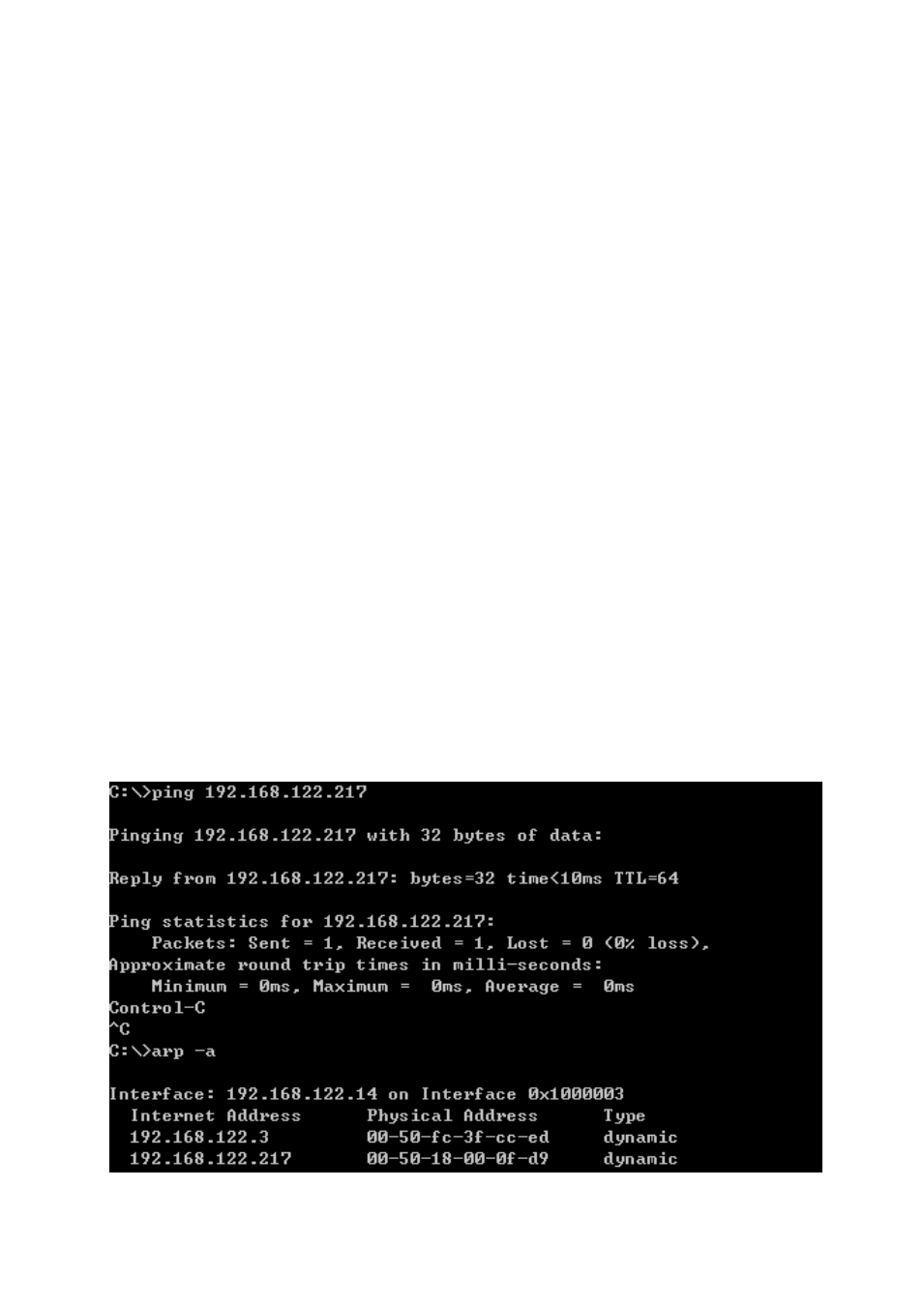

If you can not find the information of Mac, please make the cable to plug in lan-port of ap and ping the

lan ip address then arp

–a. There are some information in the screen. For example:
