6 AirLive SNMP-GSH2416 User’s Manual
1-4. View of SNMP-GSH2416 SNMP Managed Gigabit Switch
1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs)
There are 8 TP Gigabit Ethernet ports and 16 SFP fiber ports for optional
removable modules on the front panel of the switch. LED display area, locating on
the left side of the panel, contains a Power LED, which indicates the power status
and 24 ports working status of the switch.

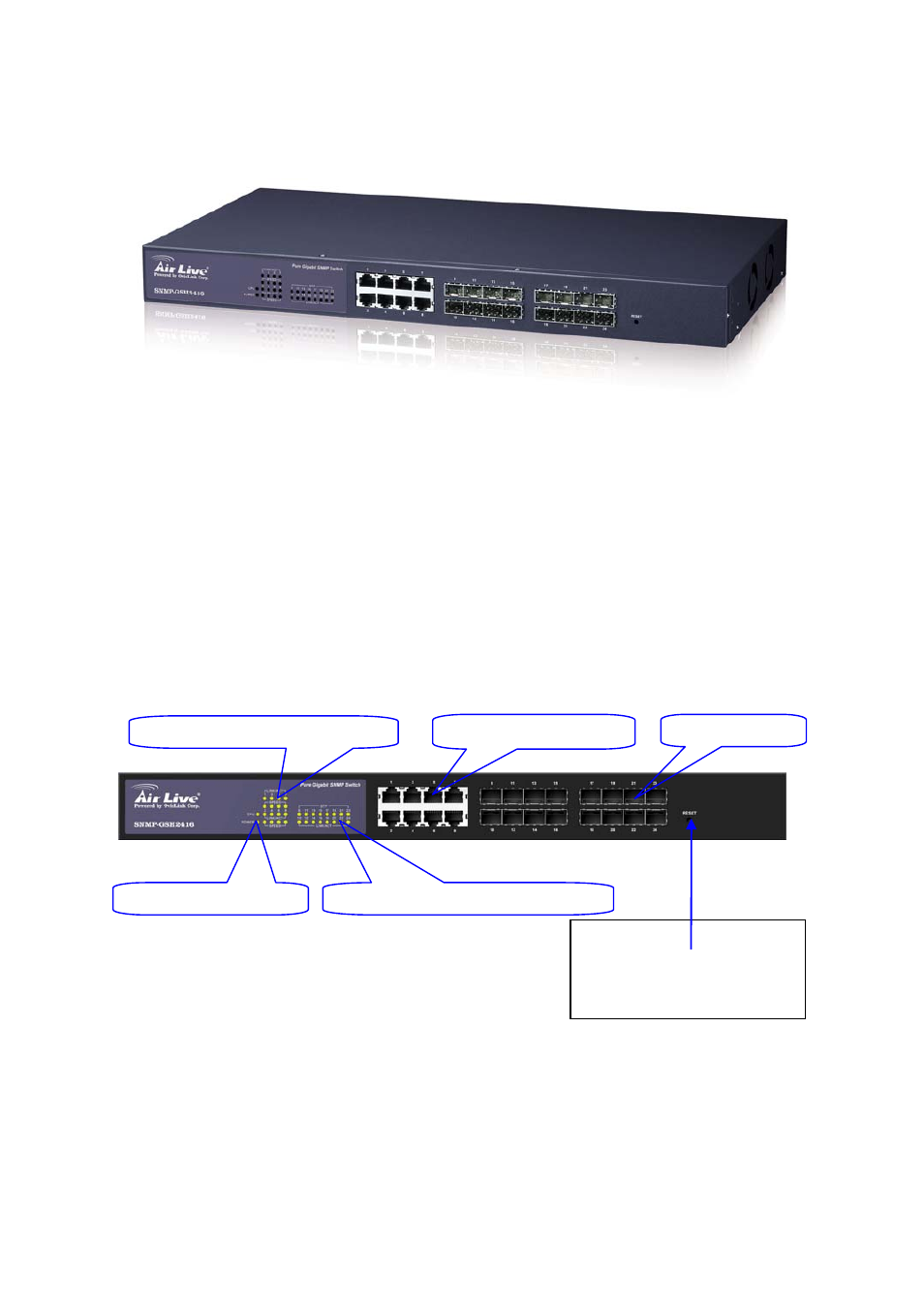

Fig. 1-1 Full View of 8-Port TP + 16-Port SFP L2 Managed Gigabit Switch
Fig. 1-2 Front View of 8-Port TP + 16-Port SFP L2 Managed Gigabit Switch
RESET Button:
RESET button is used to
reset the management
system.
Power Indication LED
Gigabit Ethernet Port TP Port Status Indication LEDs SFP Fiber Port
Fiber Port Status Indication LEDs
