4. Administrating the Device
AirLive PoE-2600HD/
WN-2600HD User’s Manual 64
z Max Frame Rate:
Defines the targeted frame rate of this profile. For example, set the frame rate to 15
fps, then the image will be updated for 15 frames per second as possible. User need
to set reasonable max frame rate versus video quality under the limited bandwidth.
z GOP Control:
Defines the Intra/Inter-frame (I/P) ratio of this profile. For example, set the GOP to 30,
then the video stream will have one Intra-frame every 30 frames.

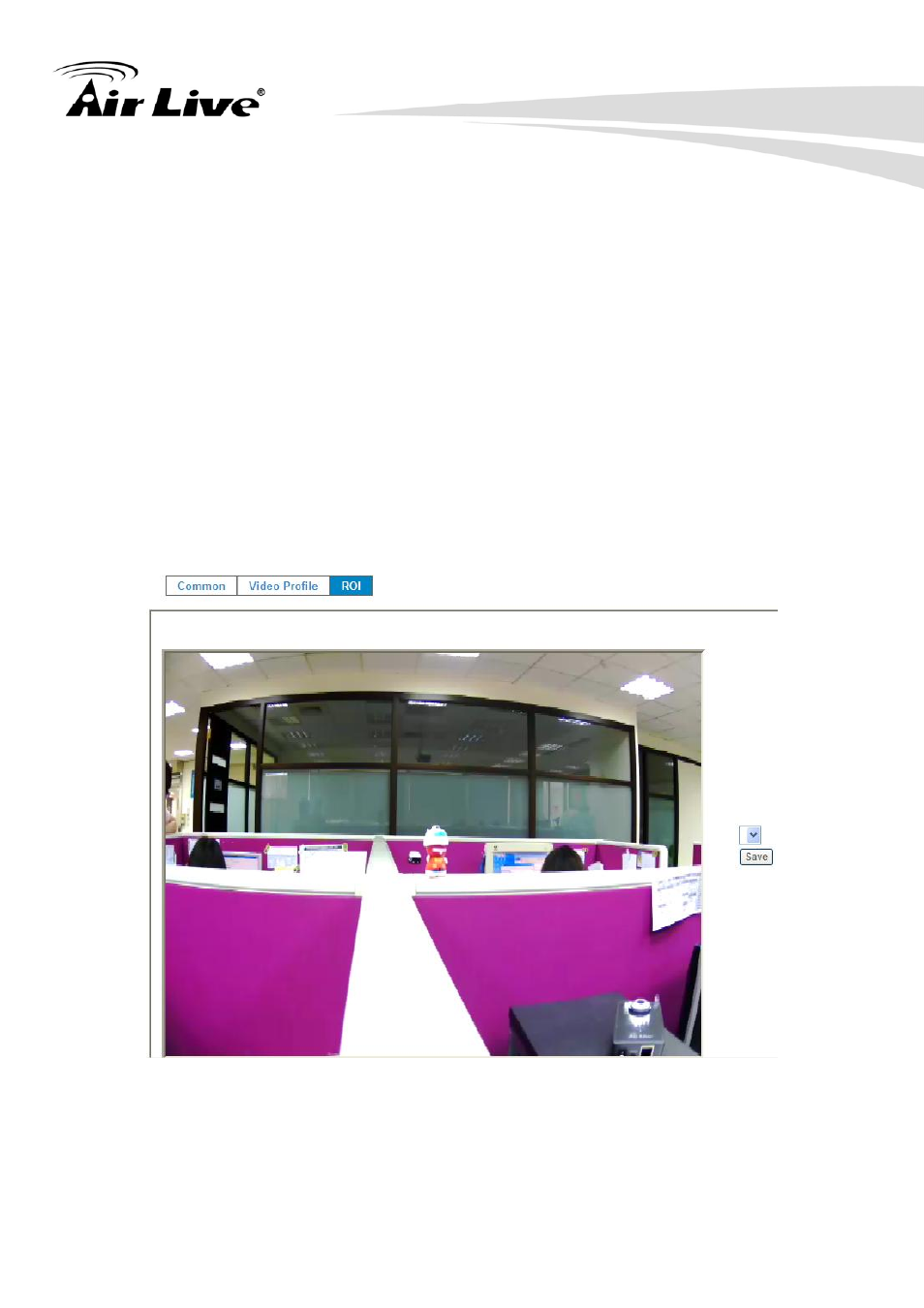

4.4.3 ROI
ROI means Region of Interest. Use this page to specify ROI window which ROI is QVGA
resolution.
