AirLive IP-200PHD-24 User Manual
Page 13
1. Introduction
AirLive IP-200PHD-24/IP-200PHD-24B
User’s Manual
8
Note: Use the power adapter, 12VDC, included in the package and connect it
to wall outlet for AC power.

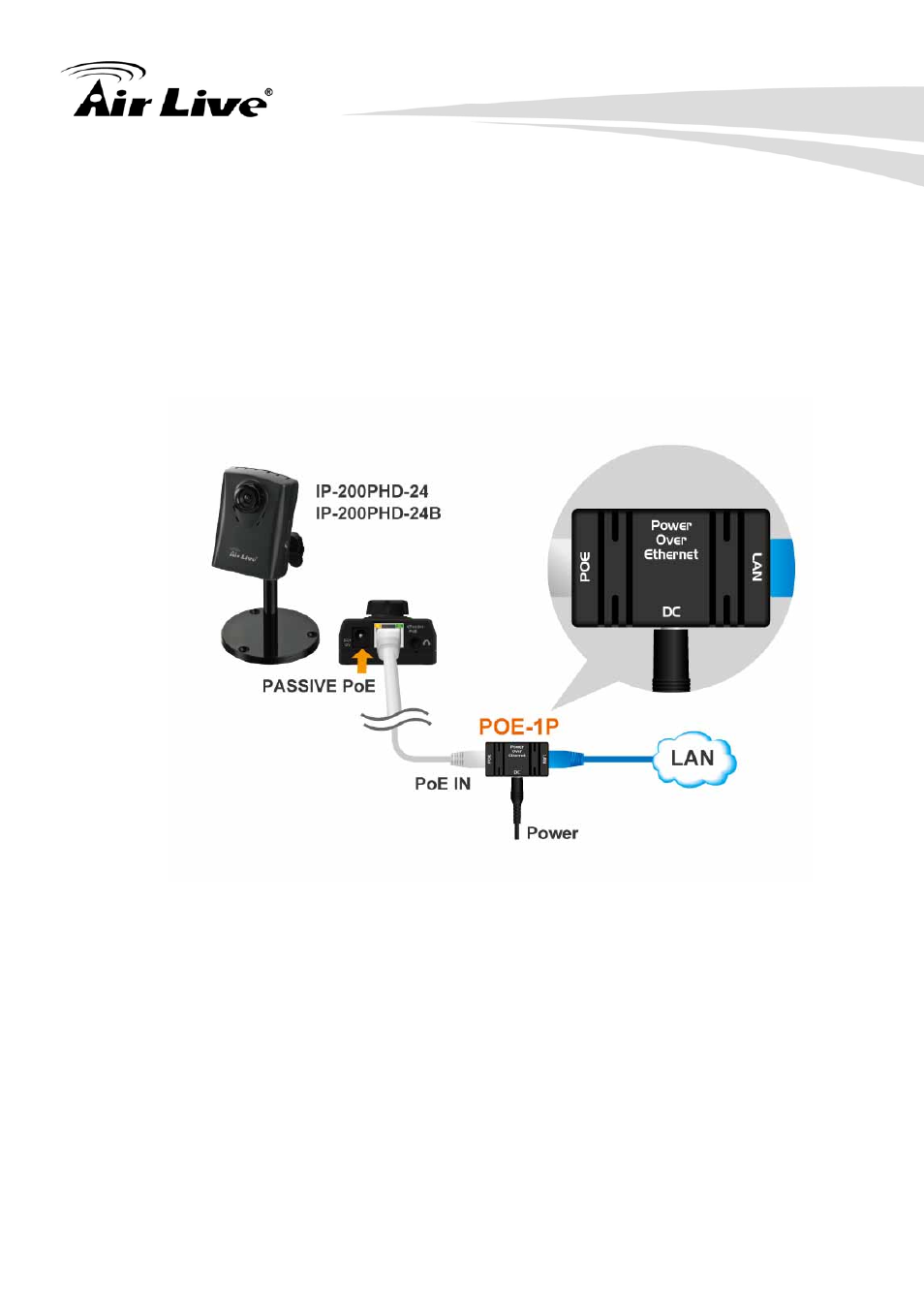

5. Use PoE-1P to connect to a network device. The
IP-200PHD-24/IP-200PHD-24B is using DC 12V passive PoE and you can
use PoE-1P as PoE splitter or PoE injector to connect to your network
device and there is no need additional power adapter.
Note: This device works with 12 to 24 volt passive PoE. It does not work with
48V 802.3af switches. Do not plug in to 802.3af or 803.3at PoE switch, it can
cost damage to the camera.
