Gigabit Ethernret Switch
Live-800G English
English

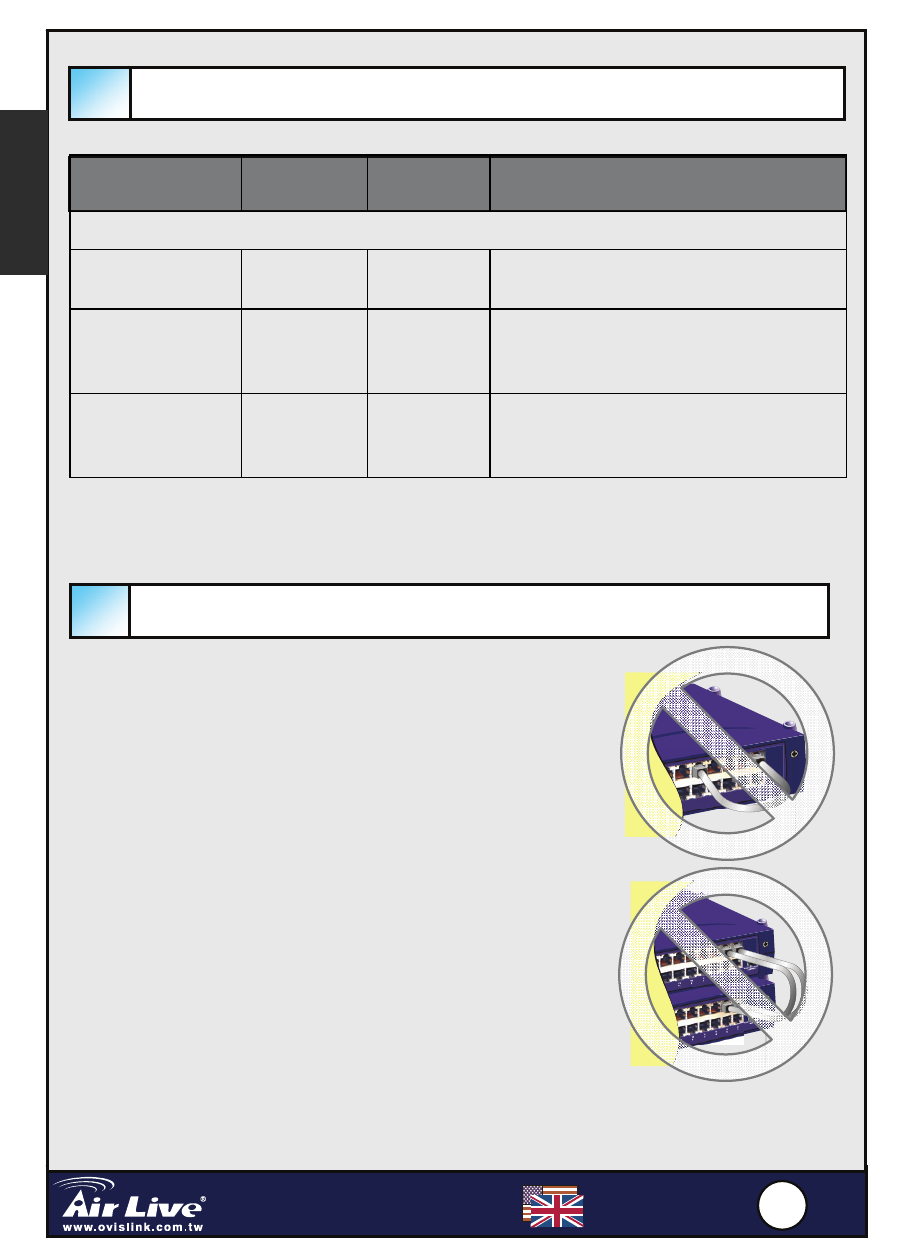

LED & Cabling Rules
Connectivity Rules
ˆ ˆ Please avoid forming a network loop (see the
diagram on the right) when connecting the cables.
A network loop can cause the network to shutdown..
ˆ ˆ The maximum cable distance is 100 meter
ˆ ˆ Always check the LED lights for trouble shooting
ˆ ˆ Computers and network devices must be in the
same IP subnet in order to see each other. For
example, 198.168.0.1 can not see 192.192.1.1 for
Class C subnet. You can find out the computer’s IP
address by typing “IPCONFIG” in WinNT/2000/XP’s
command line. For Win9x, run “WINIPCFG”.
ˆ ˆ Avoid operating device in 10Mbps full duplex mode
if the device does not have auto-negotiation
function.
LED
indicator
Color Status Meaning
All Models
Power ● Green ON
OFF Power ON
Power OFF
Link/Act ● Green ON
Blinking
OFF Connection is made
Transmitting/Receiving
No connection is made
100/1000Mbps ● Orange
● Green ON
ON
100Mbps
1000Mbps
