8

XENYX 1622FX/1832FX/2222FX/2442FX

+

If you want to monitor the signal of just one AUX

bus, none of the other SOLO SWITCHES should be

pressed and the MODE switch should be in the SOLO

position (not depressed).

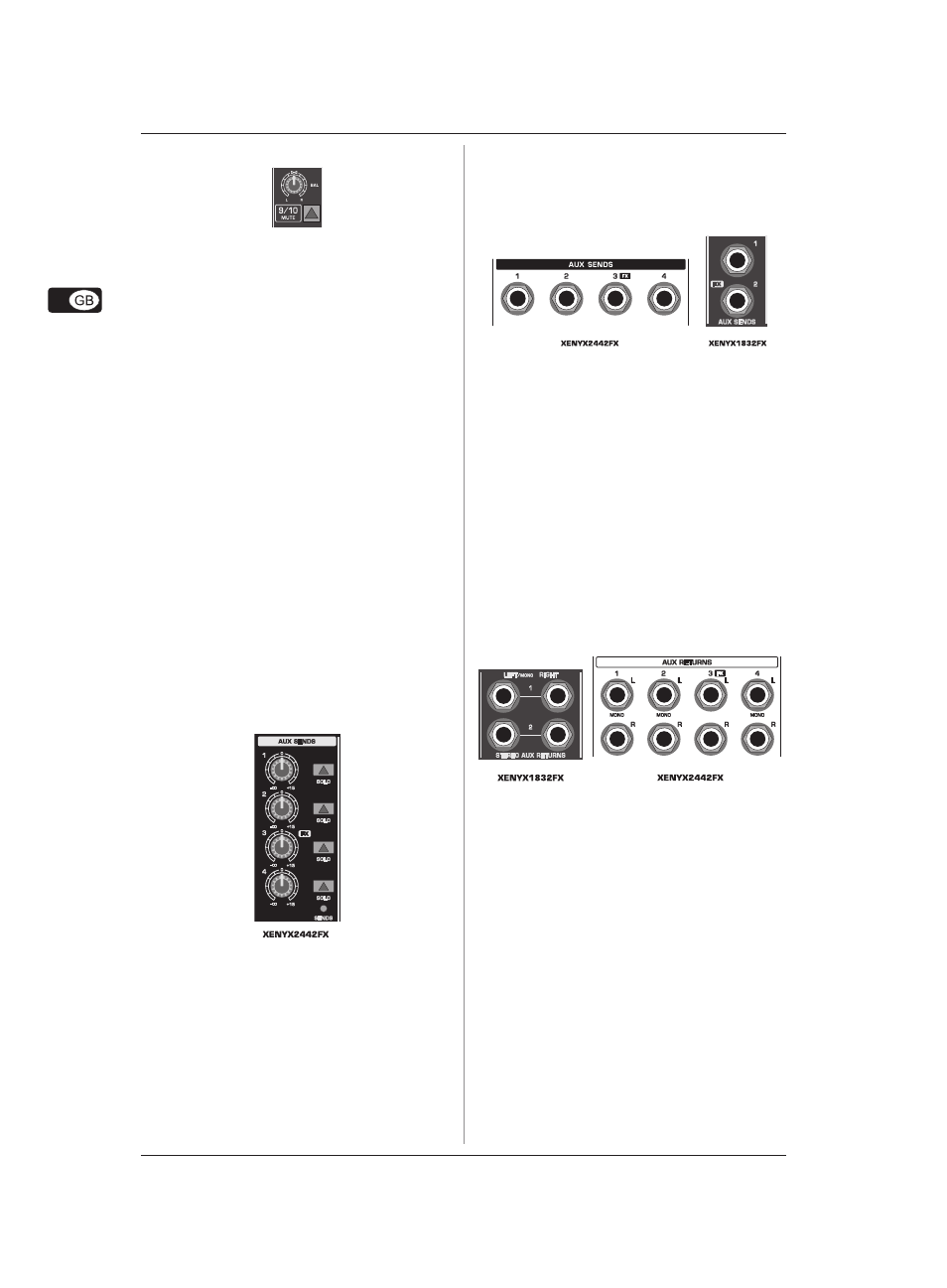

2.3.2 Aux send jacks

Fig. 2.8: Aux send jacks

AUX SEND jacks

The AUX SEND jack should be used when hooking up a monitor

power amp or active monitor speaker system. The relevant aux

path should be set pre-fader.

+

On the 2222FX, aux send 1 is hard wired

as pre-fader and hence called MON. Model 1832FX

has a dedicated monitor output (MON OUT jack), cf.

chapter 2.3.4.

As already mentioned, the aux sends in the channels—if set

post-fader—can be used to connect to external effects devices.
AUX SEND (FX)

The AUX SEND (FX) jack carries the master aux mix (from the

channel’s FX controls). You can connect this to an external

effects device to process the FX bus. The processed signal can

then be brought from the effects device back into the STEREO

AUX RETURN jacks.

2.3.3 Stereo aux return connectors

Fig. 2.9: The aux return connectors

+

On the 2222FX, 1832FX and 1622FX the STEREO AUX

RETURN jacks are located on the front panel of the

unit.

STEREO AUX RETURN

The STEREO AUX RETURN 1 jacks generally serve as the

return for the effects mix (created using the post-fader aux

sends) by connecting the output of an external effects device. If

only the left jack is connected, the AUX RETURN is automatically

switched to mono.

+

You can also use these jacks as additional line

inputs.

All stereo aux returns are balanced, but can of course also be

used with unbalanced connectors. If you use an aux send for

monitoring, the associated unused stereo aux returns are

available for other line level signals (e.g. keyboards).

+

A signal fed into the stereo return jacks can be

output via an aux send jack. More information on

this can be found in chapter 2.3.5 “STEREO AUX

RETURN 1/2 (TO AUX SEND)”.

STEREO AUX RETURN FX

The STEREO AUX RETURN FX jacks accept the effects mix

2.2.4 Routing switch, solo and channel fader

Fig. 2.6: Balance control and mute switch

BAL

The BAL(ANCE) control has a similar function to the PAN control

in the mono channels.

The balance control determines the levels of the left and right

input signals relative to each other before both signals are routed

to the left/right main mix bus (or odd/even subgroup).

The remaining control elements in the stereo channels perform

the same functions as their counterparts in the mono channels

(MUTE switch, MUTE and CLIP LEDs, SOLO switch, SUB and

MAIN switches and channel fader).

2.3 Interface panel and main section

Where it was useful to trace the signal flow from top to bottom

in order to gain an understanding of the channel strips, we now

look at the mixing console from left to right. The signals are, so to

speak, collected from the same point on each of the channel

strips and then routed to the main section all together.

2.3.1 MON control, aux sends 1, 2 and 3 (FX)

Turning up the AUX 1 control in a channel routes the signal to

the aux send bus 1.

+

As the 1832FX is equipped with an additional monitor

path, its first aux control in the channel strips is

named MON. The console also has a dedicated

master fader (MON SEND) for this aux path.

AUX SEND 1, 2 and 4

The AUX SEND 1 control governs the master send level of the

mix created by the individual channel AUX 1 sends.

Likewise, the AUX SEND 2 contol is the master control for the

aux 2 bus, and AUX SEND 4 controls the AUX 4 bus.

Fig. 2.7: The AUX SEND controls of the main section!

AUX SEND 3 (FX)

The FX control determines the signal level for effects

processing, i.e. regulates the level to an external (or the inter-

nal) effects device.

1622FX and 1832FX: On these consoles, this function is

performed by the AUX SEND 2 control (FX).
SOLO

You can use the SOLO switch to separately monitor the aux

sends via the CONTROL ROOM/PHONES outputs and check

these with the level meters.

2. CONTROL ELEMENTS AND CONNECTORS
