XENYX 1622FX/1832FX/2222FX/2442FX

s

Mix:
All other mixing console functions fall under this vital category.

Creating a mix means primarily adjusting the volume levels

of individual instruments and voices to one another as well

as giving them the appropriate weight within the overall

frequency spectrum. Likewise, you’ll have to sensibly

spread individual voices across the stereo image of a signal.

At the end of this process, adjusting the level of the entire

mix to other equipment in the signal path is required (e. g.

recorder/crossover/amplifier).

The control surface of BEHRINGER mixing consoles is opti-

mized in such a way that these functions become easy to fulfil

while the signal path remains simple to follow.

1.2 The user’s manual

The user’s manual is designed to give you both an overview of

the controls, as well as detailed information on how to use them.

In order to help you understand the links between the controls,

we have arranged them in groups according to their function. If

you need to know more about specific issues, please visit our

website at http://www.behringer.com. Additional information and

explanations about various music industry/audio technology

terminology can be found on individual product pages as well as

in the glossary.

+

The block diagram supplied with the mixing console

gives you an overview of the connections between

the inputs and outputs, as well as the associated

switches and controls.

1.3 Before you get started

1.3.1 Shipment

Your mixing console was carefully packed in the factory to

guarantee safe transport. Nevertheless, we recommend that

you carefully examine the packaging and its contents for any

signs of physical damage, which may have occurred during

transit.

+

If the unit is damaged, please do NOT return it to us,

but notify your dealer and the shipping company

immediately, otherwise claims for damage or

replacement may not be granted.

1.3.2 Initial operation

Be sure that there is enough space around the unit for cooling

purposes and to avoid over-heating please do not place your

mixing console on high-temperature devices such as radiators

or power amps. The console is connected to the mains via the

supplied cable. The console meets the required safety standards.

Blown fuses must only be replaced by fuses of the same type

and rating.

+

Please note that all units must be properly

grounded. For your own safety, you should never

remove any ground connectors from electrical

devices or power cables, or render them in-

operative.

+

Please ensure that only qualified people install and

operate the mixing console. During installation and

operation, the user must have sufficient electrical

contact to earth, otherwise electrostatic discharges

might affect the operation of the unit.

1.3.3 Online registration

Please do remember to register your new BEHRINGER

equipment right after your purchase by visiting

www.behringer.com (alternatively www.behringer.de) and

kindly read the terms and conditions of our warranty carefully.

Should your BEHRINGER product malfunction, our goal is to

have it repaired as quickly as possible. To arrange for warranty

service, please contact the retailer from whom the equipment

was purchased. Should your BEHRINGER dealer not be located

in your vicinity, you may directly contact one of our subsidiaries.

Corresponding contact information is included in the original

equipment packaging (Global Contact Information/European

Contact Information). Should your country not be listed, please

contact the distributor nearest you. A list of distributors can be

found in the support area of our website (www.behringer.com).

Registering your purchase and equipment with us helps us

process your repair claims quicker and more efficiently.

Thank you for your cooperation!

2. CONTROL ELEMENTS AND

CONNECTORS

This chapter describes the various control elements of your

mixing console. All controls, switches and connectors will be

discussed in detail.

2.1 Mono channels

2.1.1 Microphone and line inputs

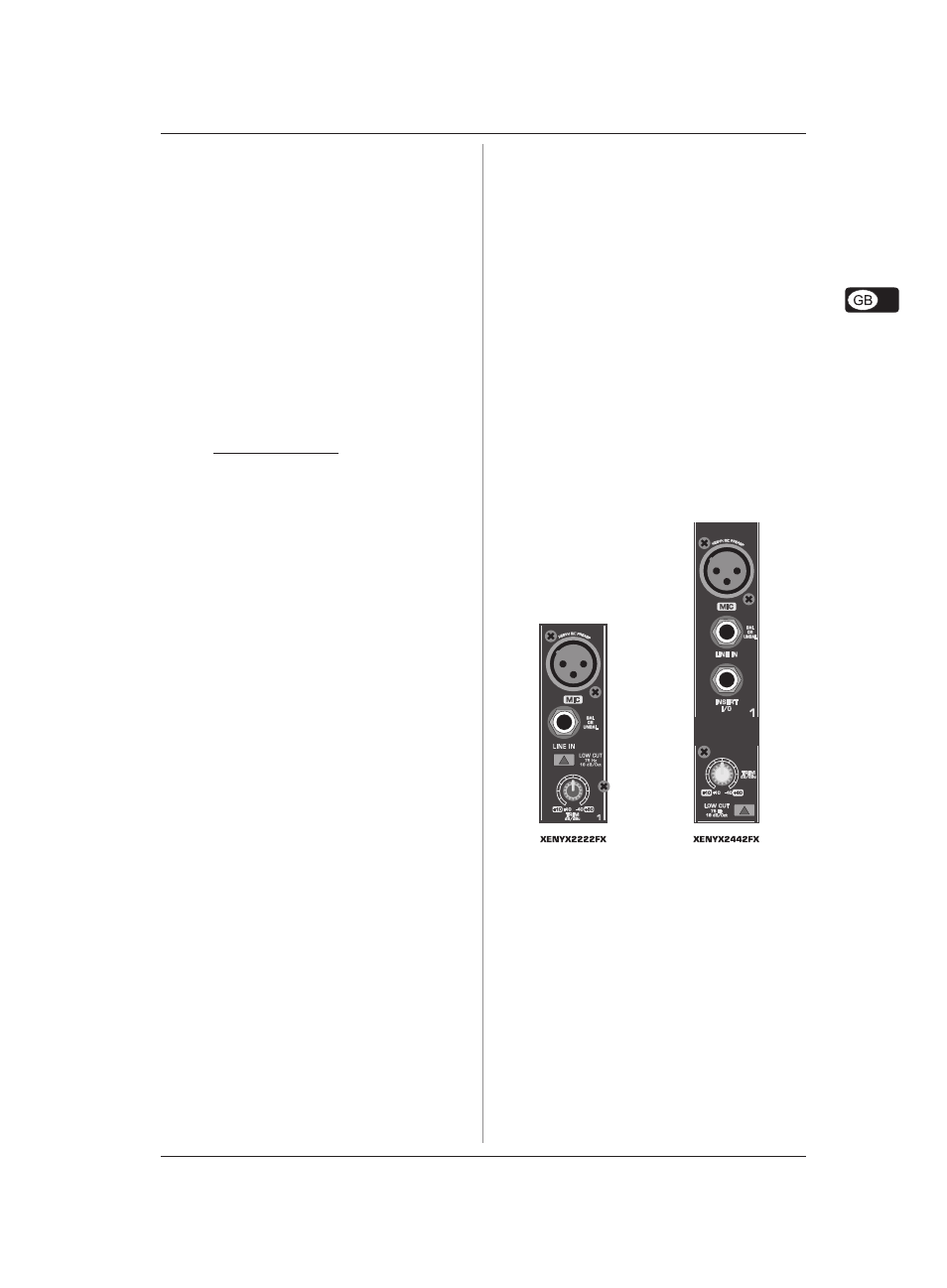

Fig. 2.1: Connectors and controls of mic/line inputs

MIC

Each mono input channel offers a balanced microphone input

via the XLR connector and also features switchable +48 V

phantom power supply for condenser microphones. The XENYX

preamps provide undistorted and noise-free gain as is typically

known only from costly outboard preamps.

+

Please mute your monitor system before you

switch on phantom power. Otherwise potentially

damaging thumps will be sent to your speakers.

Please also note the instructions in chapter 5.5

“Voltage supply, phantom power and fuse”.

LINE IN

Each mono input also has a balanced line input on a 1/4" jack.

You can also connect unbalanced devices using mono jacks to

these inputs.

+

Please remember that you can use either the

microphone input or the line input of a channel, but

not both at the same time!
