Terminals VMT5010
© ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen
31

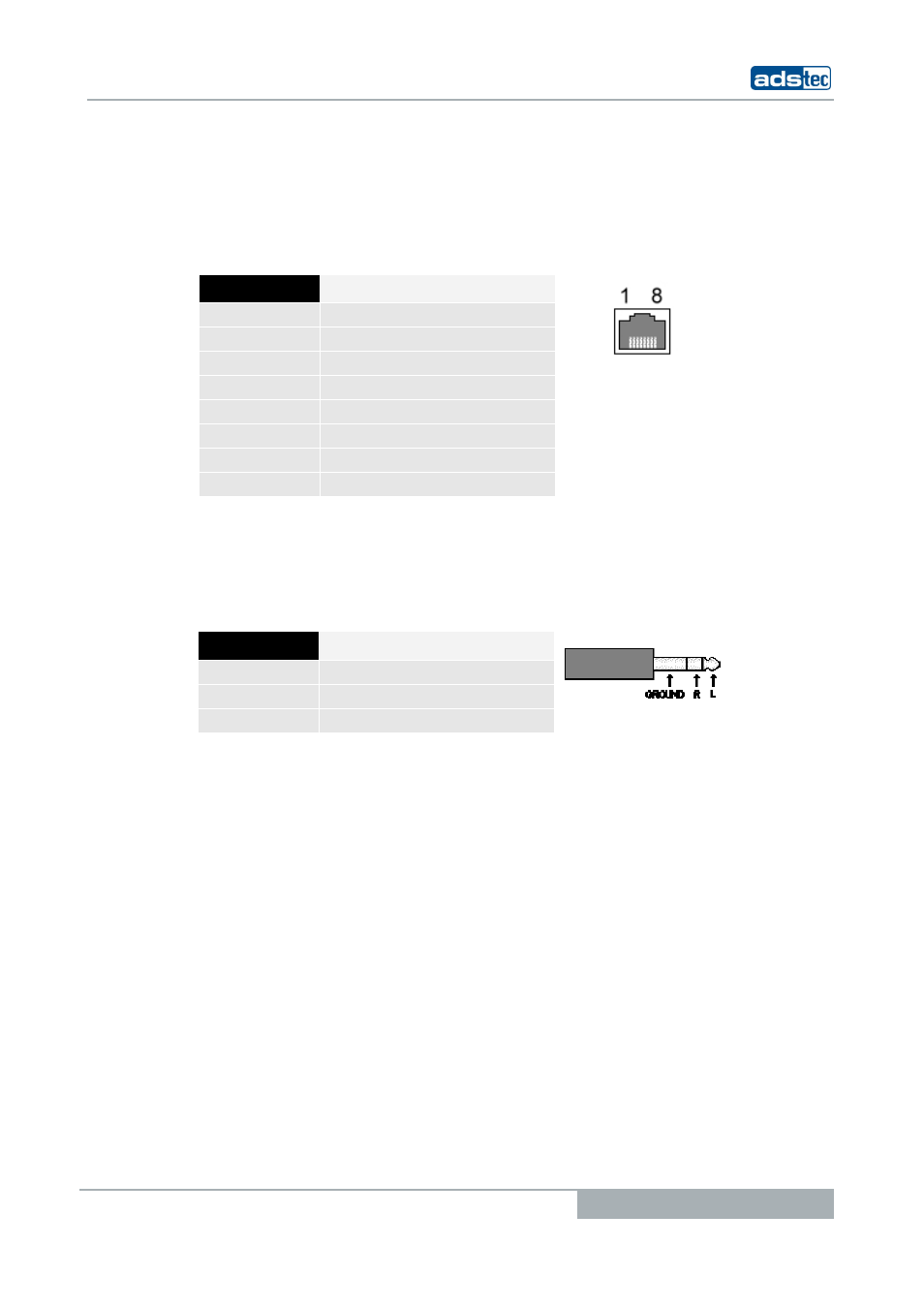

6.7 N ETWORK CONNECTION (RJ45)
If the drivers required for functioning are installed on the device, the control system may
be integrated in an Ethernet network supporting the 10/100 Mbit standard by using the
Ethernet 10/100BaseT network connector. Specifications of this network topology must be
observed in this case. You can install the drivers required for functioning from the enclosed
service CD, should they not be installed on the device.
PIN NUMBER SIGNAL NAME
1 TX +
2 TX -
3 RX +
4 NC
5 NC
6 RX -
7 NC
8 NC
Pos: 31 /Datentechnik/Schnittstellen/Line Out/Line Out / Sound für VMT-Serie @ 0\mod_1159172305673_681.doc @ 917 @
6.8 L
INE
O
UT
/ S
OUND
The Line Out connection of this device is a 3.5 mm socket which provides a stereo signal.
In order to use this connection, the matching plug must be wired up as follows.
Pos: 32 /Datentechnik/Schnittstellen/Funknetzwerkkarte/Funknetzwerkkarte für VMT-Serie @ 0\mod_1159172416532_681.doc @ 919 @
6.9 O PTIONAL RADIO NETWORK CARD
If a slot with a radio network card and an externally attached antenna is installed in the
device, and if this card is supported by the corresponding drivers in the operating system,
this device may be integrated in an Ethernet network supporting 11 Mbit or 54 Mbit
(802.11a/b/g compatible) connections. Specifications of this network topology must be
observed in this case.
Pos: 33 /Datentechnik/Laufwerke/Externe Laufwerke/Externe Laufwerke für OPC 5112 / 5115 / 5117 / IPC 1100 / CPC / PLC / OTC / ITC / VMT-Serie @ 0\mod_1158926656205_681.doc @ 880 @
Pos: 34 /Datentechnik/Laufwerke/Festplatte / Compact Flash/Festplatte Compact Flash für VMT-Serie @ 1\mod_1204714324328_681.doc @ 3409 @
PIN NUMBER SIGNAL NAME
Ground GND
R Signal, right-hand side
L Signal, left-hand side
