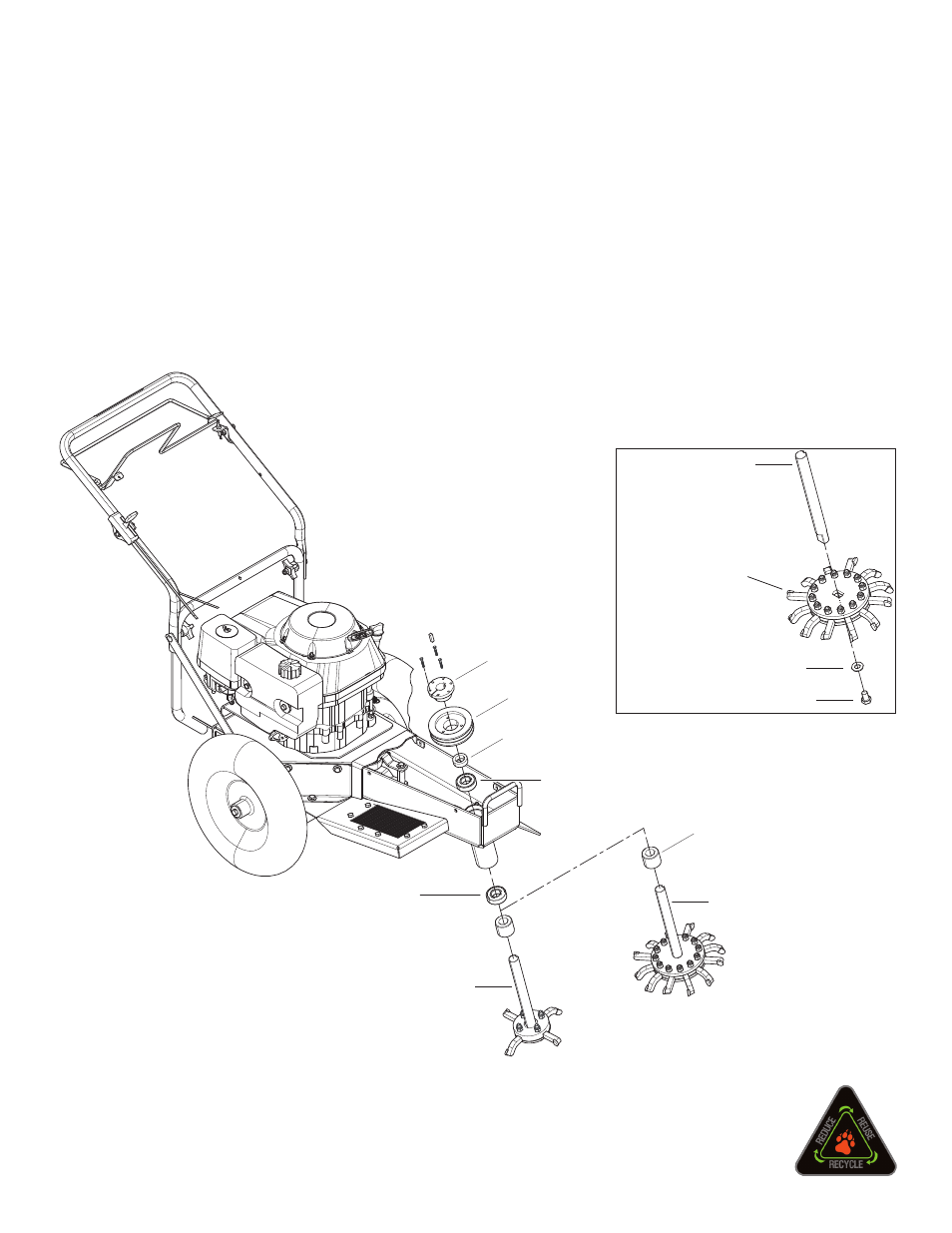

BUSHING

SHEAVE

12 BLADE

ASSEMBLY

4 BLADE

ASSEMBLY

SPACER

BEARING

BEARING

SPACER

5. Remove the three bolts in the bushing (shown below). Screw these three bolts into

the threaded holes that had been previously unused. Tighten the bolts an equal

amount until the bushing and sheave loosen and can be removed.

6. Loosen the set screw in bushing.

7. Remove the spacer, spindle and blades as shown below. Discard.

8. Replace with new spacer, spindle and blades. Assemble by inserting spindle into

cutter head and fastening with 1/2 X 3/4" bolt and washer. (See Figure 1.) Torque

bolt to 70 ft. lbs.

9. Replace bushing and sheave.

10. Insert bolts back into the non-threaded holes in the bushing and thread into sheave

before tightening evenly. Torque to 108 inch/lbs, making sure that the two pulleys are

alligned to ± 1/16 inch.

11. Tighten the belt by adjusting the motor position so there is a 1/32" gap between the

coils of the spring. Once the 1/32" gap is achieved, tighten down nut shown in step

4 tighten the engine mounting bolts shown in step 3.

SPINDLE

CUTTER HEAD ASSY.

WASHER

1/2 X 3/4" BOLT

Figure 1
