Instruction Sheet

7. Wrap the 48" length of conduit around the wires.
8. Mark the conduit at 17" from the point at which the

harness and conduit exit the hitch pole.

9. Run the harness through the hole in the machine

frame (see Fig. 3).

10. At the 17" point that you marked in Step 8, take the

GREEN/BROWN wire out of the conduit. Wrap this

wire with the 40" conduit (see below).

11. Run the rest of the 48" conduit (YELLOW/BROWN

wire) to the left fender.

12. Run the GREEN/BROWN wire up to the surface of the

machine near the hydraulic oil filter.

13. Split the YELLOW/BROWN excess wire. Cut off a

20" inch piece of YELLOW wire from the excess wire.

Solder an end of this yellow wire to the black wire that

comes from the license plate light plug.

14. Wrap this BLACK wire with the 15" conduit as shown

below. Run the conduit through the clamp on the

license angle.

15. Push the fir tree tie through the hole in the frame as

shown above and run the conduit through the tie.

16. Where the conduit around the YELLOW wire runs

out, route the YELLOW wire into the conduit with the

GREEN/BROWN wire. Run this conduit to the fender

(see Fig. 6).

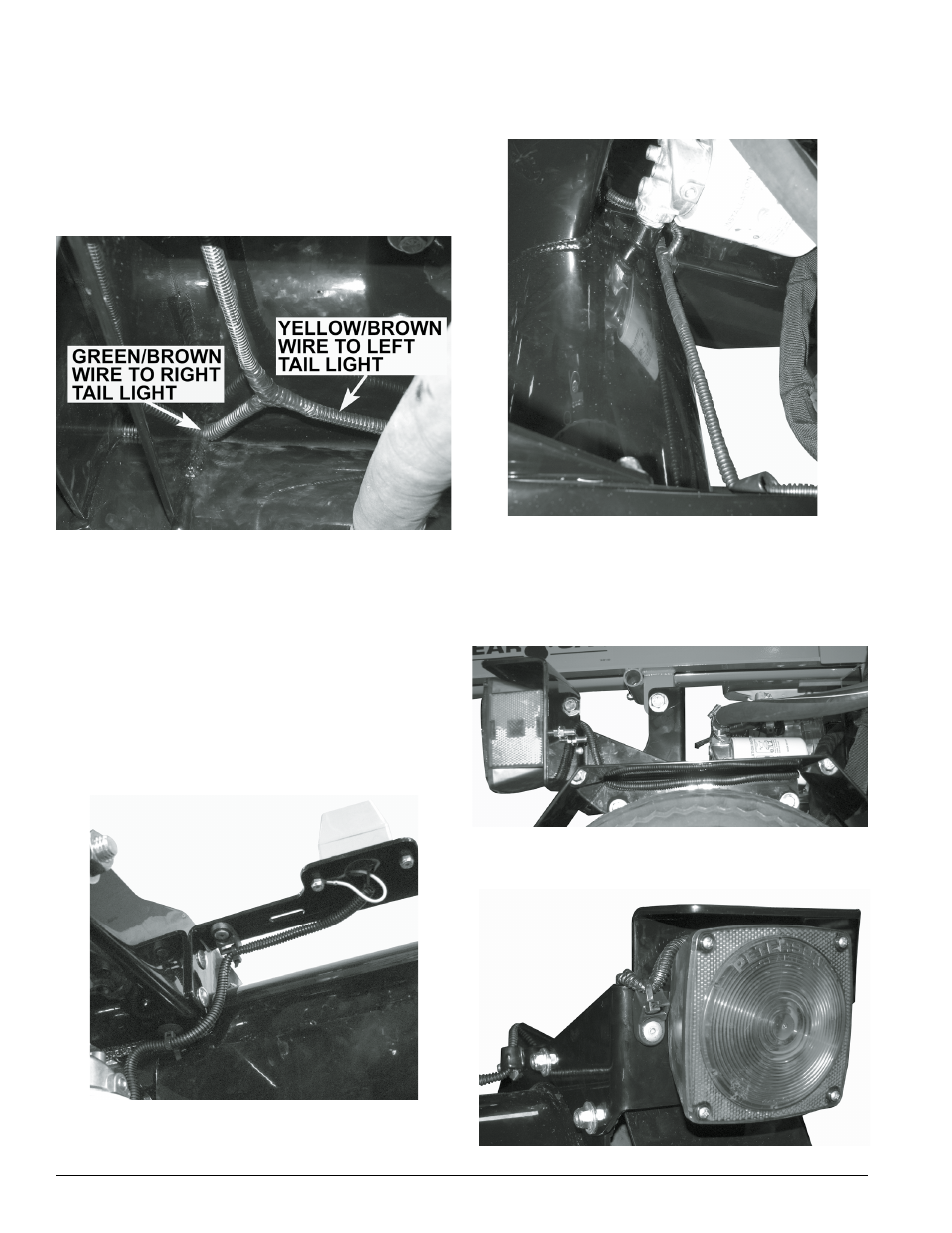

Fig. 4 Place where harness splits underneath the machine

Fig. 5 View from behind the license light

Fig. 6 Routing the conduit past the hydraulic filter to the fender

17. Run the conduit through the clamp on the fender, and

then into the fender itself. Run the conduit along the

inside top edge of the fender and out through the hole

by the light (see below).

18. Run the conduit through the clamp on the tail light.

Fig. 7

Fig. 8
