Echo SRM - 230S User Manual
Page 12
12
P
RE
- O
PERATION
OPERATION
WITH
BLADES

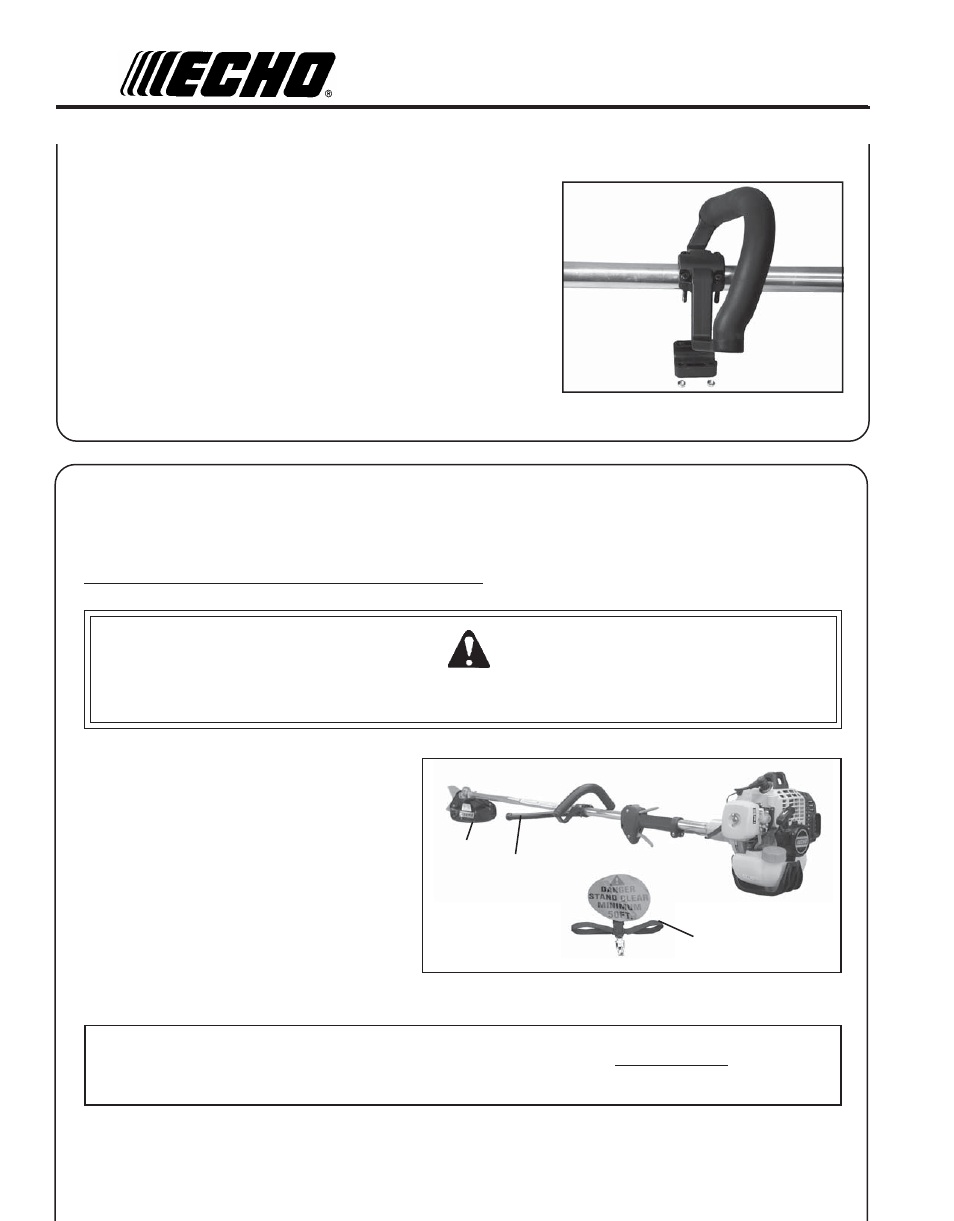

Preparing the Trimmer/Brush Cutter for Blade Use
WARNING
DANGER
Blade use DEMANDS specific Brush Cutter configuration. Operation without specified shield, handle, and harness
can result in serious personal injury. Follow installation instructions included in optional kits.
FRONT
HANDLE
INSTALLATION
A
C
B
Grass/Weed Blades Require:
Install Blade Conversion Kit, P/N 99944200415 -
Includes metal shield (A), barrier bar (B), and
shoulder harness (C).
1.
Position front handle for comfortable operation and secure screws.
NOTE
The Barrier Bar is used to restrict rearward movement of the unit. The Barrier Bar is NOT A HANDLE and should not
be gripped when using or carrying the unit.
