Echo SRM - 230S - Manual (Page 11)

G
RASS
T
RIMMER
/B
RUSH
C
UTTER
O
PERATOR
'
S
M
ANUAL
11
A
SSEMBLY
Tools Required: Screwdriver, Head Locking Tool
Parts Required: Plastic Shield, Shield Plate, three (3) 5mm x 16mm
screws, Nylon Line Head, Front Handle Assembly

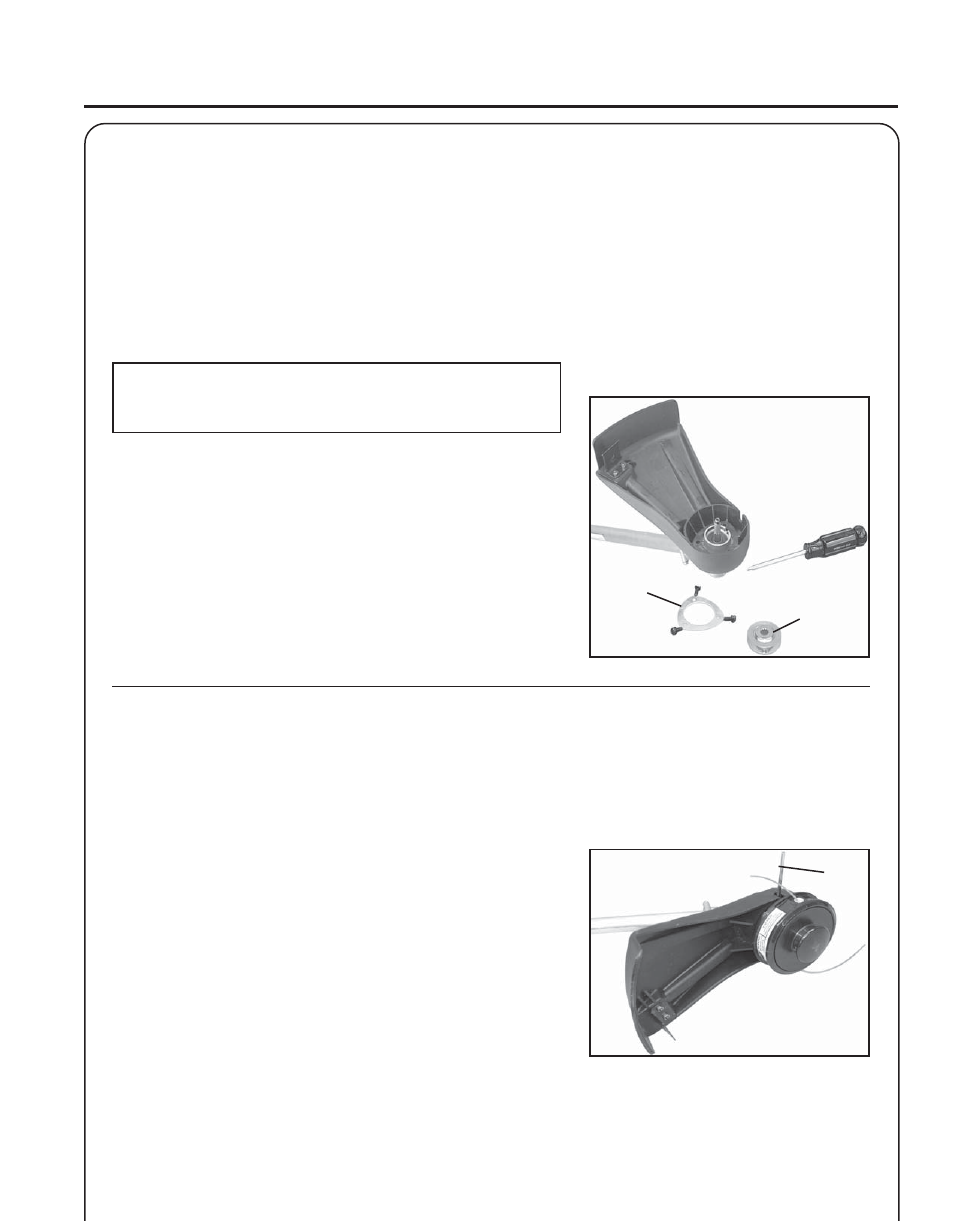

PLASTIC SHIELD INSTALLATION
(For Nylon Line Operation)
NOTE
The plastic shield is for use with the Nylon Line Head only.
Install Metal Shield when using plastic or metal blades.
1. Remove plastic sleeve and upper plate (A) from PTO shaft.
2. Install the shield on the bottom of the bearing housing flange.
3. Place shield plate (B) on shield, align holes and install three (3)
5x16 mm screws.
4. Install upper plate (A).
NYLON LINE HEAD INSTALLATION
(Use with Plastic Shield)
1. Be sure upper adaptor plate remains on PTO shaft.
2. Align locking hole in upper plate with notch in edge of gear
housing and insert head locking tool (C).
3. Thread line head onto shaft by turning it counter clockwise until
head is tight against upper plate.
4. Remove head locking tool.
B
A
C
