ASSEMBLY

X7502308106

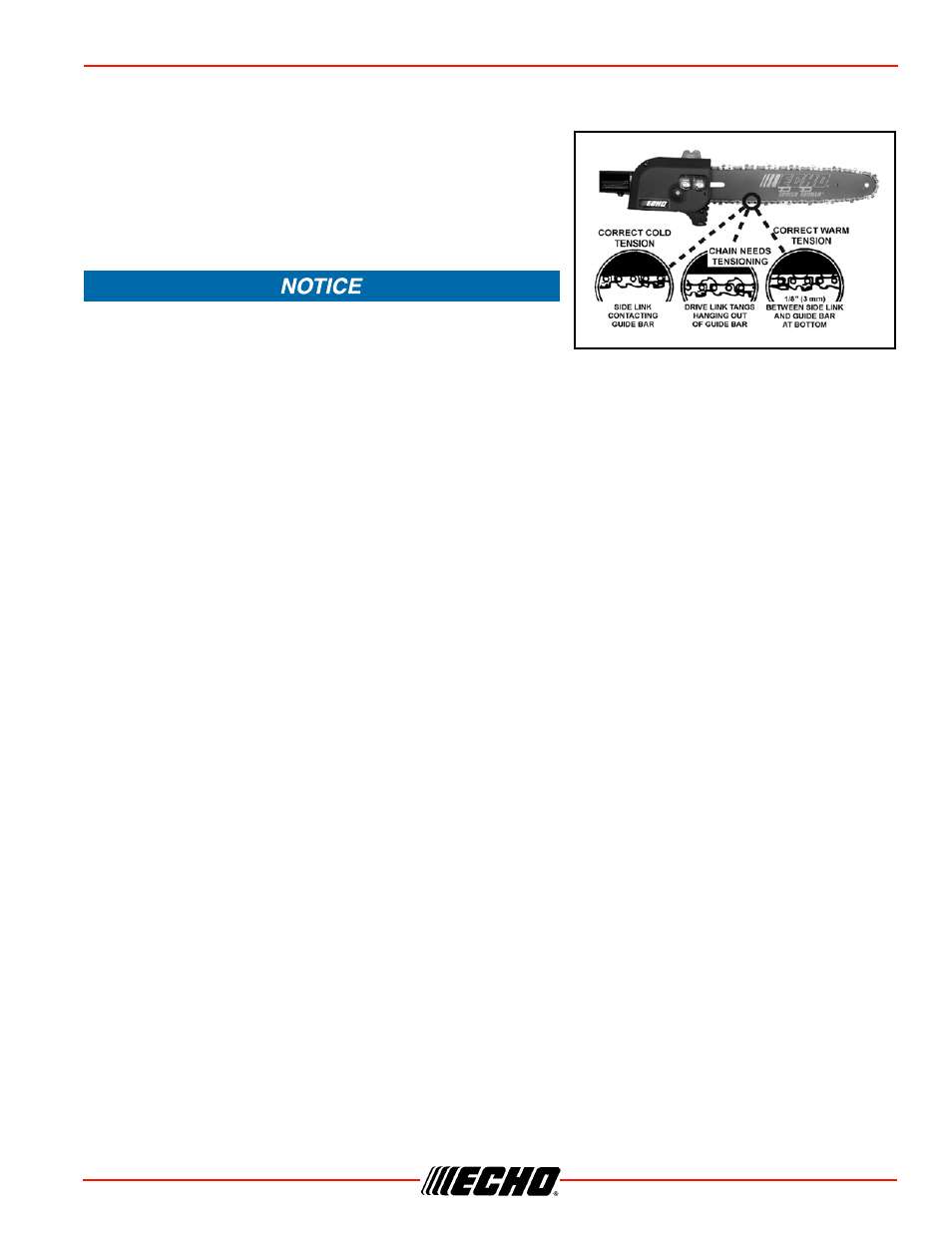

4. Hold the bar nose up, and turn the adjuster screw (B) clockwise until the chain fits snugly against the

underside of the bar, as shown. Cold Chain Only - turn adjuster screw CW an additional 1/8 - 1/4 turn.

5. Tighten both guide bar nuts with nose held up. Tighten rear

nut first.

6. Pull the chain around the guide bar by hand. Reduce the

chain tension if you feel tight spots.

7. When chain is properly tensioned, tighten guide bar nuts

securely.

Tighten guide bar nuts to 8 - 9 N•m (71 - 80 in. lbs.) DO NOT
over-tighten nuts. Damage may result

8. Keep chain properly tensioned at all times.

Note: All chains require frequent adjustment.

9. Connect spark plug lead.
