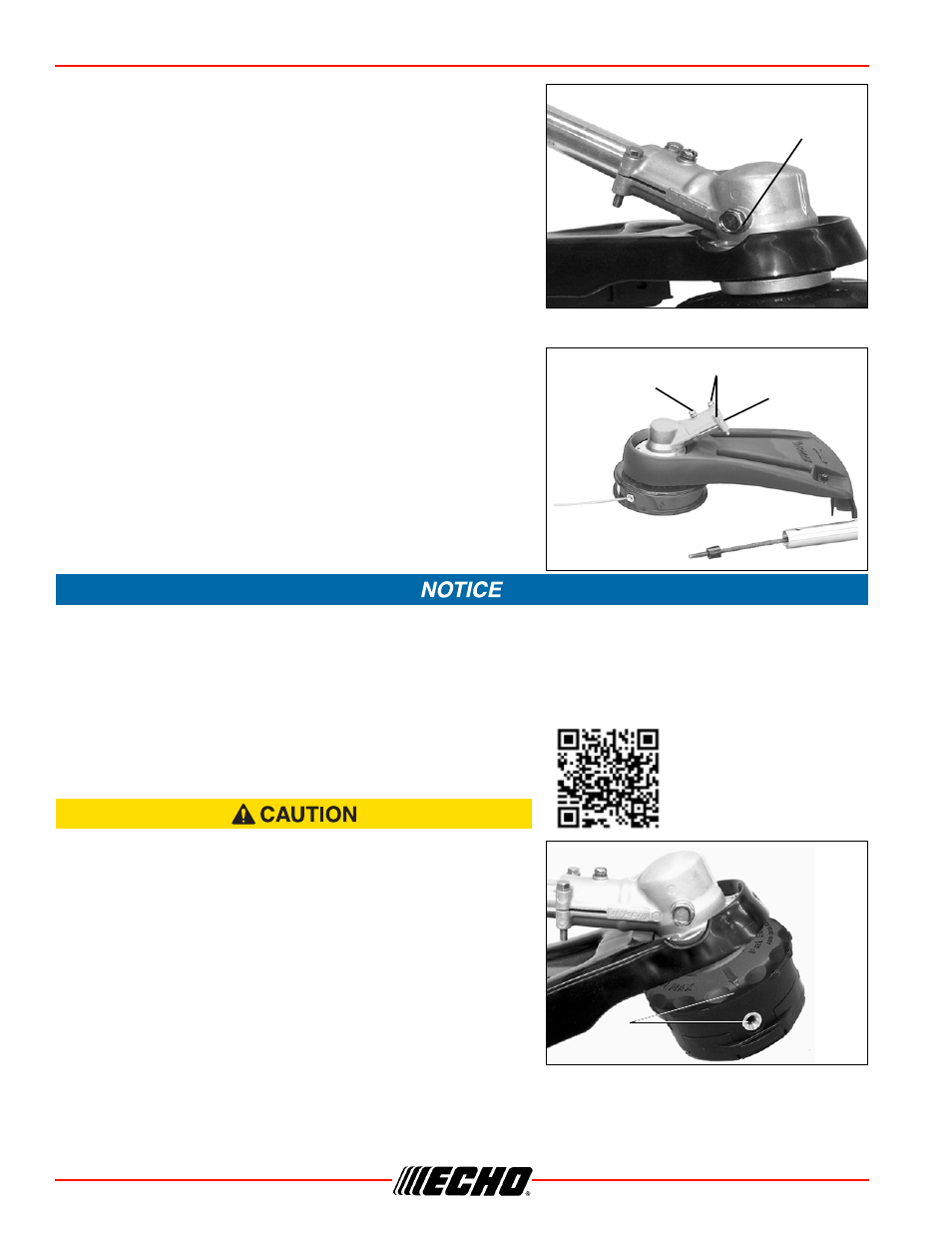

MAINTENANCE

99944200540

Gear Housing

1. Clean all loose debris from gear case.

2. Remove plug (A) and check level of grease. Grease should

fill gear case to bottom of grease plug hole.

3. Add grease if necessary using manual grease gun or

squeeze-type tube. Do not use high pressure grease gun.
DO NOT over-fill.

4. Install plug (A).

Drive Shaft (Lower)

1. Loosen screws (B) and remove center locating screw (C).

Pull gear case and shield from drive shaft housing.

2. Pull flexible cable from the drive shaft housing, wipe clean

and re-coat with a thin coating [15 ml (1/2 oz.)] of grease.

3. Slide the flexible cable back in the drive housing. DO NOT

get dirt on the flex cable.

4. Install the gear housing and shield assembly.

Flat edge of washers (D) must be against drive shaft.

Nylon Line Replacement

Wear Gloves or personal injury may result:

•

Cutoff knife is sharp.

•

Gearcase and surrounding area may be hot.

1. Cut one piece of line to recommended length.

.080 (2.0 mm) dia. – 20’ (6 m)
.095 (2.4 mm) dia. – 20’ (6 m)

2. Align arrows on top of knob with openings in eyelets.

For more information
scan this QR code.
