16 X7702093305
© 08/2013 ECHO Inc.
MAINTENANCE 99944200513
3. Add grease if necessary. DO NOT over-fill.
4. Install screw plug (C).

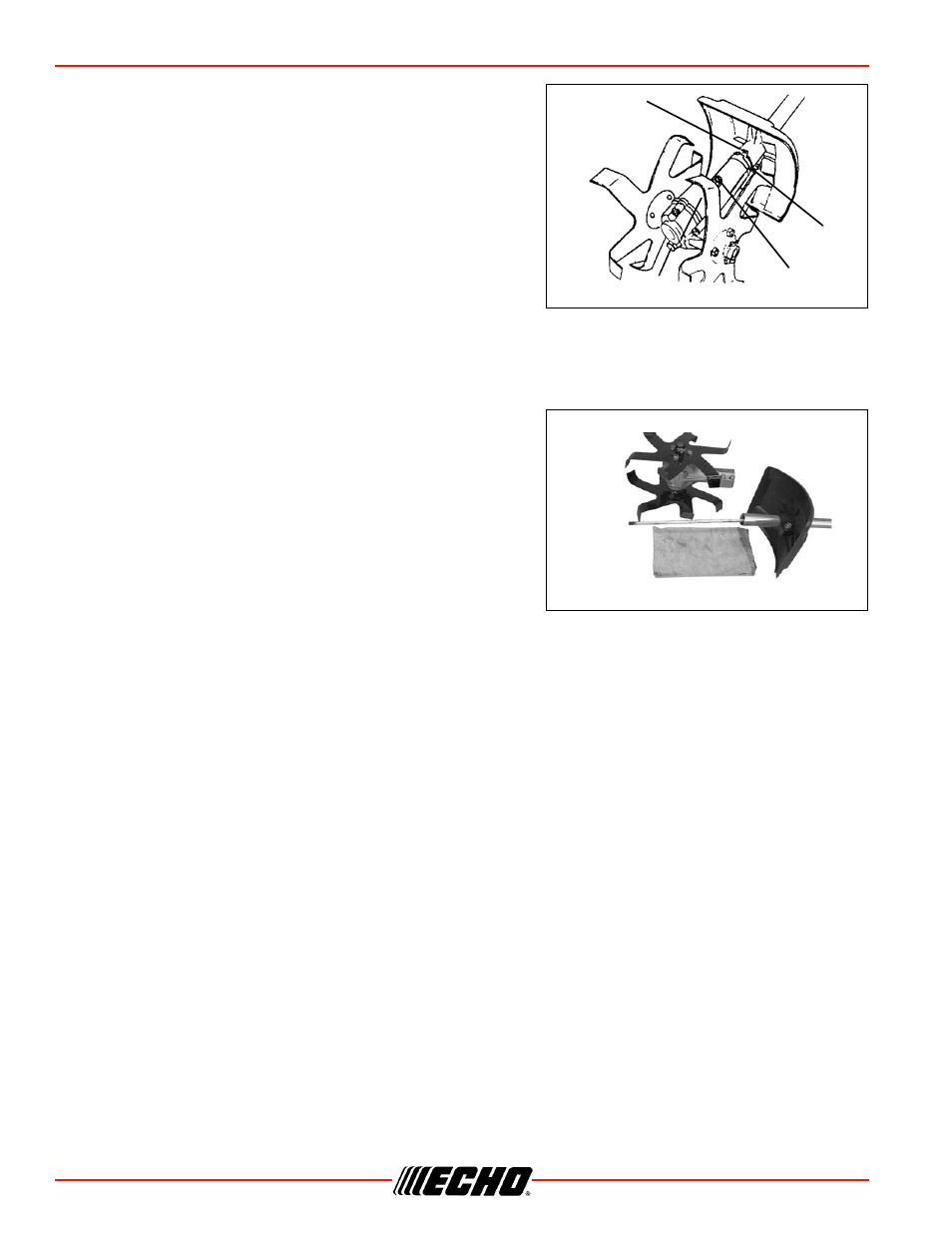

Drive Shaft (Lower)
1. Loosen gear housing mounting bolt (A) and remove gear
housing locator screw (B).
2. Pull gear box from drive shaft housing. Shield will remain on
drive shaft.
3. Pull flexible cable from the drive shaft housing, wipe clean
and re-coat with a thin coating [15 ml (1/2 oz.)] of grease.
4. Slide the flexible cable back in the drive housing. DO NOT
get dirt on the flex cable.
5. Assemble gear housing onto drive shaft correctly matching gear housing to shield cutout (D).
6. Install and tighten locator screw (B).
7. Tighten gear housing mounting bolt (A).
B
A
D
C
