OPERATION

X7532095607

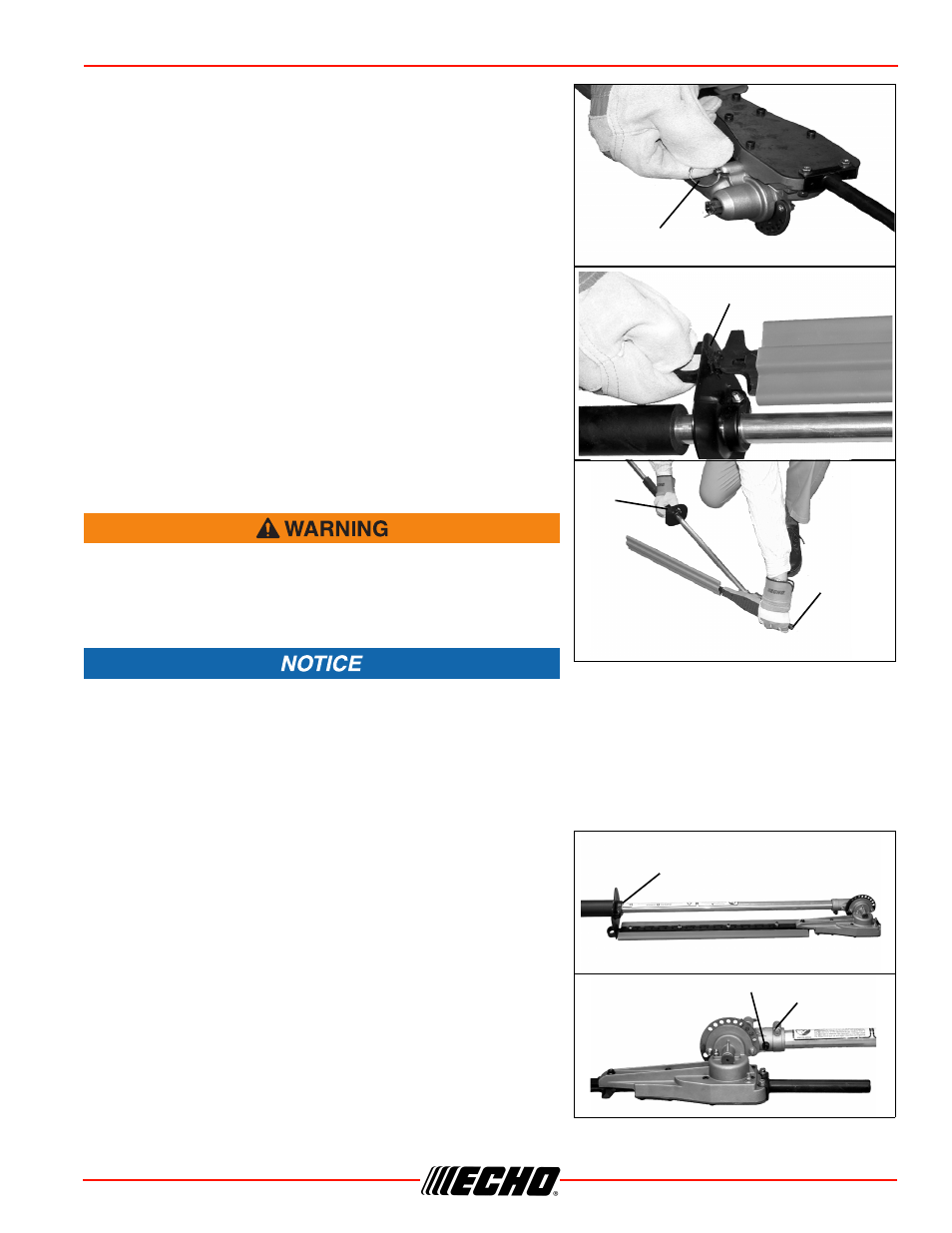

2. Pull out indexing ring (A), and turn ¼ turn to lockout

position.

3. Turn hedge clipper ¼ turn so that indexing ring faces

downward.

4. Release hand-guard blade lock (B) with right hand, while

holding blade-adjustment handle (C) with left hand.

5. Rotate blades to desired cutting position and hold in place.

6. Turn indexing ring ¼ turn to lock blade in place.

Gear case assembly becomes HOT during use. Always
grip assembly at blade-adjustment handle when making
cutting angle adjustments, otherwise serious injury may
result.

Always install blade cover, and return cutting assembly to folded/locked position for travel/storage.

Rotate Cutter Assembly

Always use the unit from the right-hand side of your body – NEVER from the left side. Rotate cutter
assembly 180 degrees on driveshaft in order to avoid cutting directly above your head, and to avoid contact
with hot muffler.

1. Loosen gearcase clamping screw (A), hand guard clamping

screw (B), and remove gearcase locating screw (C).

2. Rotate cutter assembly 180-degrees on driveshaft until

locating hole in driveshaft is visible through locating hole in
gearcase.

3. Install gearcase locating screw (C), and securely tighten all

hardware.
