DESCRIPTION

99944200532

DESCRIPTION

Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and that you understand and follow
the instructions on it. If a decal cannot be read, a new one can be ordered from your ECHO dealer. See
PARTS ORDERING instructions for specific information.

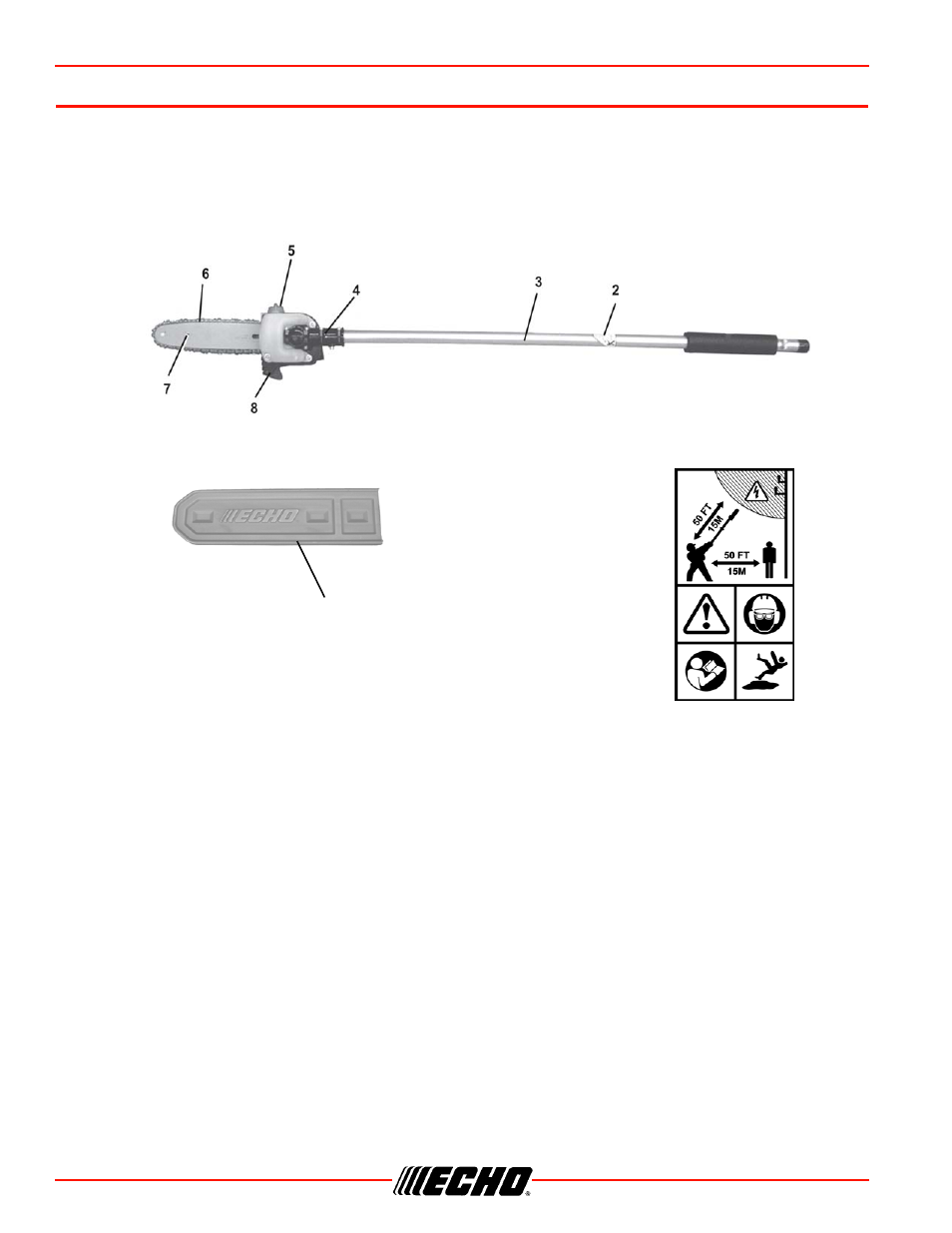

1. GRIP, FRONT - Cushioned grip for left hand.

2. SHAFT DECAL - Contain important safety information that must be followed.

3. LOWER DRIVE SHAFT ASSEMBLY - Contains a specially designed liner and the flexible drive shaft.

4. CUTTING ATTACHMENT - Sealed, gear ratio is 1.5:1 reduction..

5. AUTOMATIC OILER ASSEMBLY - Self oiling. Use high quality, low viscosity, non detergent bar and

chain oil.

6. SAW CHAIN - Chain, serving as a cutting tool.

7. GUIDE BAR - 254 mm (10 inch) Bar.

8. CUTTING SHOE - Used to capture and stabilize branch while cutting. Place cutting shoe against

branch, accelerate and lower saw chain into branch.

9. GUIDE BAR COVER - Used to cover guide bar and saw chain during transport and storage. Remove

guide bar cover before using unit.

Shaft Label
