Echo PE-230 Serial 06001001 - 06999999 - Manual (Page 9)

P
OWER
E
DGER
O
PERATOR
'
S
M
ANUAL
9
C
ONTENTS

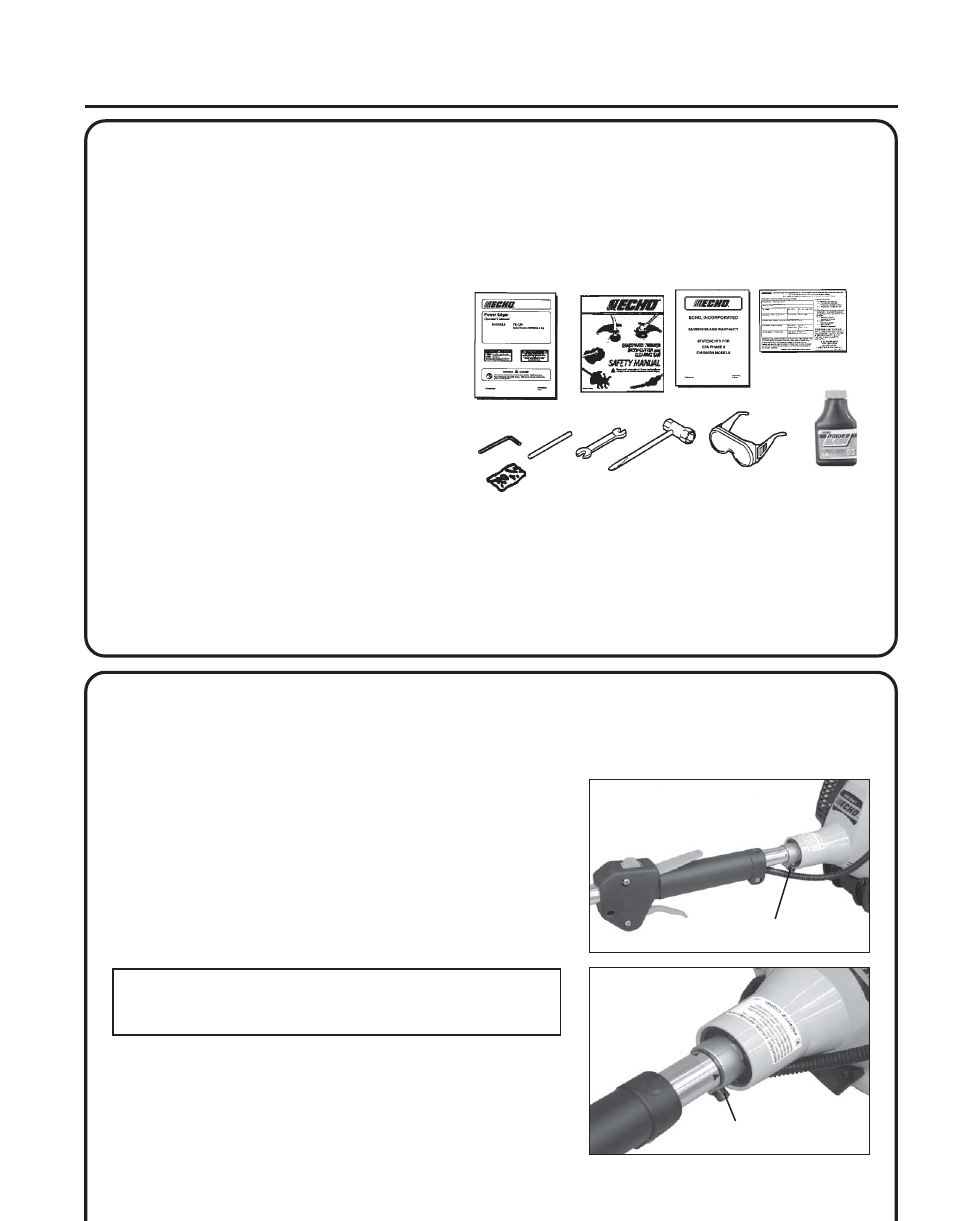

The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions,
shield installation and other assembly may be necessary.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
__ 1, Edger Assembly
__ 1, Power Head
__ 1, Drive Shaft Assembly
__ 1, Plastic Bag (Co-Pack)
__ 1, Operator's Manual
__ 1, Safety Manual
__ 1, Warranty Registration Card
__ 1, ECHO Emissions and Warranty Statement
__ 1, Echo Power Blend
TM 2-stroke oil sample
__ 1, Front Handle
__ 1, Lower Bracket, Front Handle
__ 4, 5 x 35 mm screws
__ 4, 5 mm nuts*
__ 1, T-Wrench
__ 2, split pin
__ 1, 4 mm Hexagon Wrench
__ 1, Locking Tool
__ 1, 8 x 10 mm Spanner Wrench
__ Safety Glasses
* 5mm nuts may not be needed.
A
SSEMBLY
DRIVE SHAFT
/
POWER HEAD
Tools Required: 4 mm Hex Wrench
Parts Required: Power Head, Drive Shaft Assembly
1. Loosen, the bolt (A) at engine drive shaft clamp.
2. Carefully fit drive shaft assembly to engine making sure that
inner drive shaft engages into clutch mount.
NOTE
Lower gear housing and head assembly must be in line with the
engine.
3. Turn drive shaft housing so that center line of housing is midway
between the two arrows on shaft.
4. Tighten bolt (A).
A
A
