10

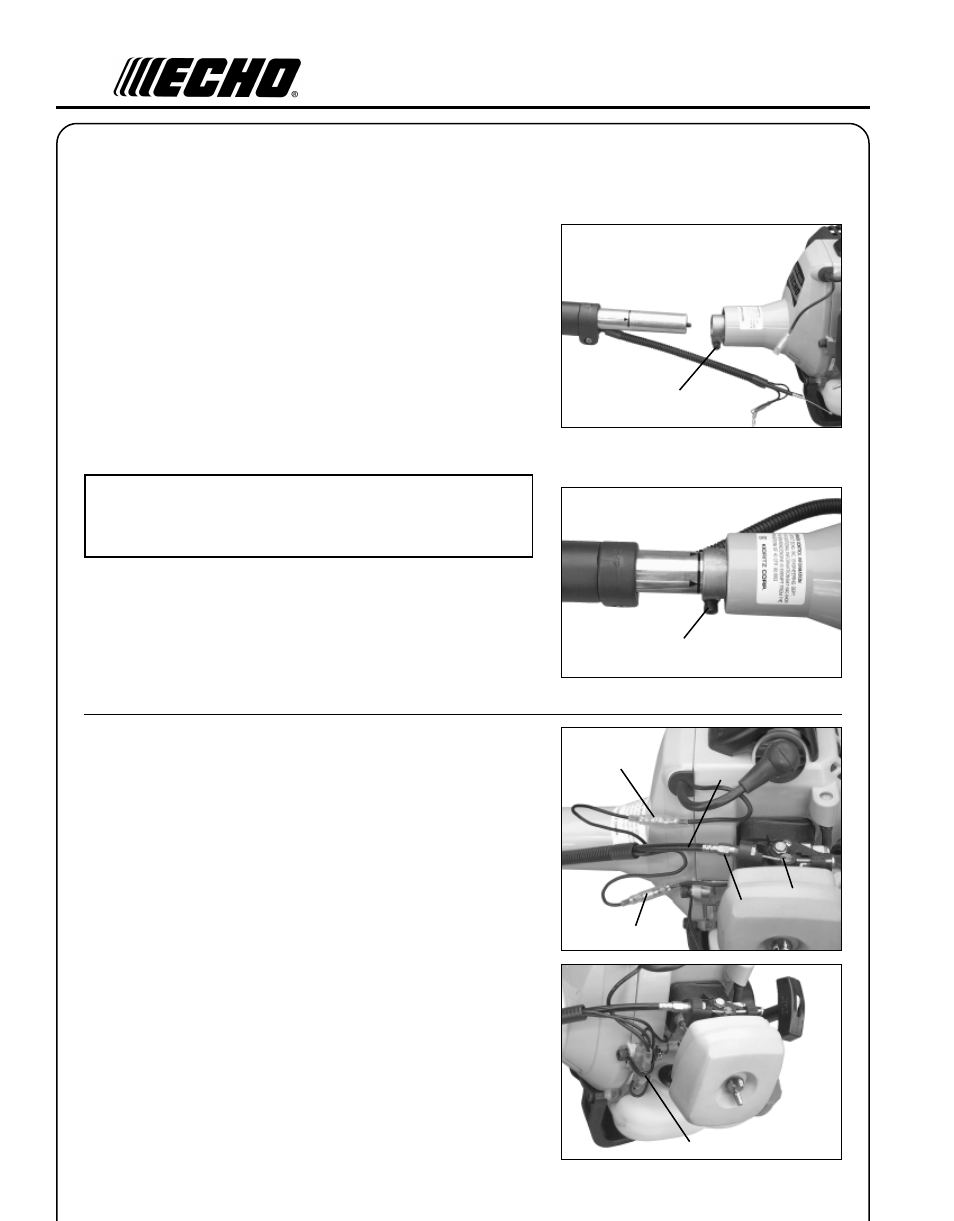

A

SSEMBLY

DRIVE

SHAFT

/

POWER

HEAD

Tools Required: 4 mm Hex Wrench

Parts Required: Power Head, Drive Shaft Assembly

1.

Loosen, the bolt (A) at engine drive shaft clamp.

2.

Carefully fit drive shaft assembly to engine making sure that
inner drive shaft engages into clutch mount.

NOTE
Lower gear housing and head assembly must be in line with the
engine.

3.

Turn drive shaft housing so that center line of housing is midway
between the two arrows on shaft.

4.

Tighten bolt (A).

THROTTLE

LINKAGE

AND

IGNITION

LEADS

1.

Connect ignition stop leads (A) and (B).

2.

Place throttle linkage (C) through adjustment fixture (D) and install
wire end into large carburetor throttle swivel hole (E). Check throttle
for freedom of movement and that wide open throttle / low idle
extremes are adjusted properly. The throttle linkage must be
adjusted by moving the adjustment fixture (D). Consult with your
Echo Dealer for correct adjustment procedure.

3.

Bundle and secure ignition leads against engine housing with clip
(F).

A

A

A

B

C

D

E

F
