5 4.5 INCH HYDRAULIC CHIPPER
Section
FEATURES & CONTROLS

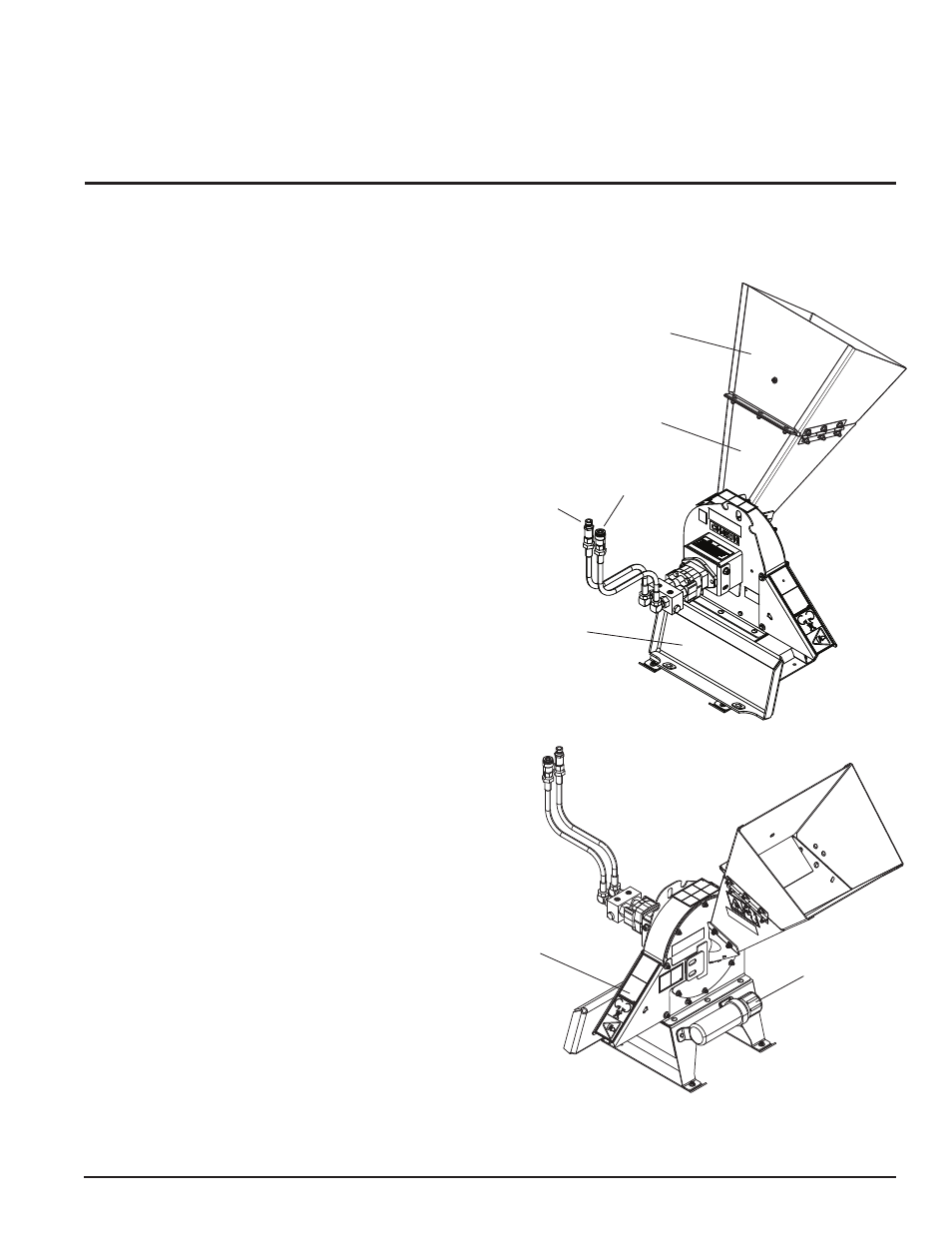

Understanding how your machine works will help you achieve the best results when using your machine. The following
descriptions define the features and controls of your machine.
3
MANUAL
CONTAINER
CHIPPER
DEFLECTOR
CHUTE EXTENSION
CHIPPER CHUTE
FEMALE
COUPLER
(PRESSURE)
MALE
COUPLER
UTILITY
LOADER
MOUNT
CHIPPER CHUTE
Feed branches no larger than 4.5 inches in diameter
into the chipper chute.
CHIPPER DEFLECTOR
Chipped material exits out the chipper deflector and
onto the ground. An optional chipper discharge tube
is also available (PN 74634-00).
CHUTE EXTENSION
An additional safety feature to keep the operator
from touching or being pulled into the chipper
blades. The extension should be unlatched and
rotated open on its hinge when transporting the
chipper.
FEMALE COUPLER/MALE COUPLER
Connect the couplers to the appropriate connectors
on the utility loader. Note that there is a zip tie
around the pressure hose.
MANUAL CONTAINER
Store your owner's manual in the manual
container.
UTILITY LOADER MOUNT
Use this mount to secure and transport the chipper
with a utility loader.
