4.5 INCH CHIPPER 18
SERVICE & MAINTENANCE
BEFORE INSPECTINg OR SERVICINg ANy PART OF THIS MACHINE, SHuT OFF POWER SOuRCE,
DISCONNECT SPARk Plug WIRE FROM SPARk Plug AND MAkE SuRE All MOVINg PARTS HAVE COME TO A COMPlETE STOP.
WaRNING
Check the condition of the drive belt(s) annually or after
every 25 hours of operation, whichever comes first. Replace
a cracked, frayed, worn or stretched drive belt. Only replace
drive belt with original banded type belt. Do not use single
type belts. To adjust the drive belt(s), proceed as follows:
5.8.1 ENGINE modELS
place the chipper engagement lever in the StaRt 1.
position.
Shut engine off.
2.
Disconnect battery cables (electric start models). 3.
Remove the seven 5/16" x 3/4" bolts securing the 4.
belt shield to the shield weldment. Remove the belt
shield.
To increase tension on the belt, do the following:
5.
5a. loosen the four carriage bolts attaching the engine
plate to the trailer.
5b. locate the two 5/16" x 3" bolts and 5/16" flange
nuts located on the side of the chipper between the
trailer and the engine plate (Figure 5.3).
5c. Tighten both 5/16" bolts equally to move the
engine away from the chipper housing until the
belt deflection is 7/16" when a 20 lb. load is placed
against the belt (Figure 5.4).
5d. Tighten the four carriage bolts securing the engine
plate to the trailer.
5e. Tighten both 5/16" flange nuts to ensure the proper
deflection is maintained.
To loosen tension on the belt, do the following: 6.
6a. loosen the four carriage bolts attaching the engine
plate to the trailer.
6b. loosen both 5/16" flange nuts.
6c. loosen both 5/16" x 3" adjustment bolts equally and
push the engine plate against the bolts. loosen
bolts until the belt deflection is 7/16" when a 20 lb.
load is placed against the belt (Figure 5.4).
6d. Tighten the four carriage bolts securing the engine
plate to the trailer.
6e. Tighten both 5/16" flange nuts to ensure the proper
deflection is maintained.
If the bolts and nuts between the engine plate and the 7.
trailer cannot be adjusted any further, and the tension
needs further adjustment, tighten the eyebolt until the
appropriate deflection is achieved.

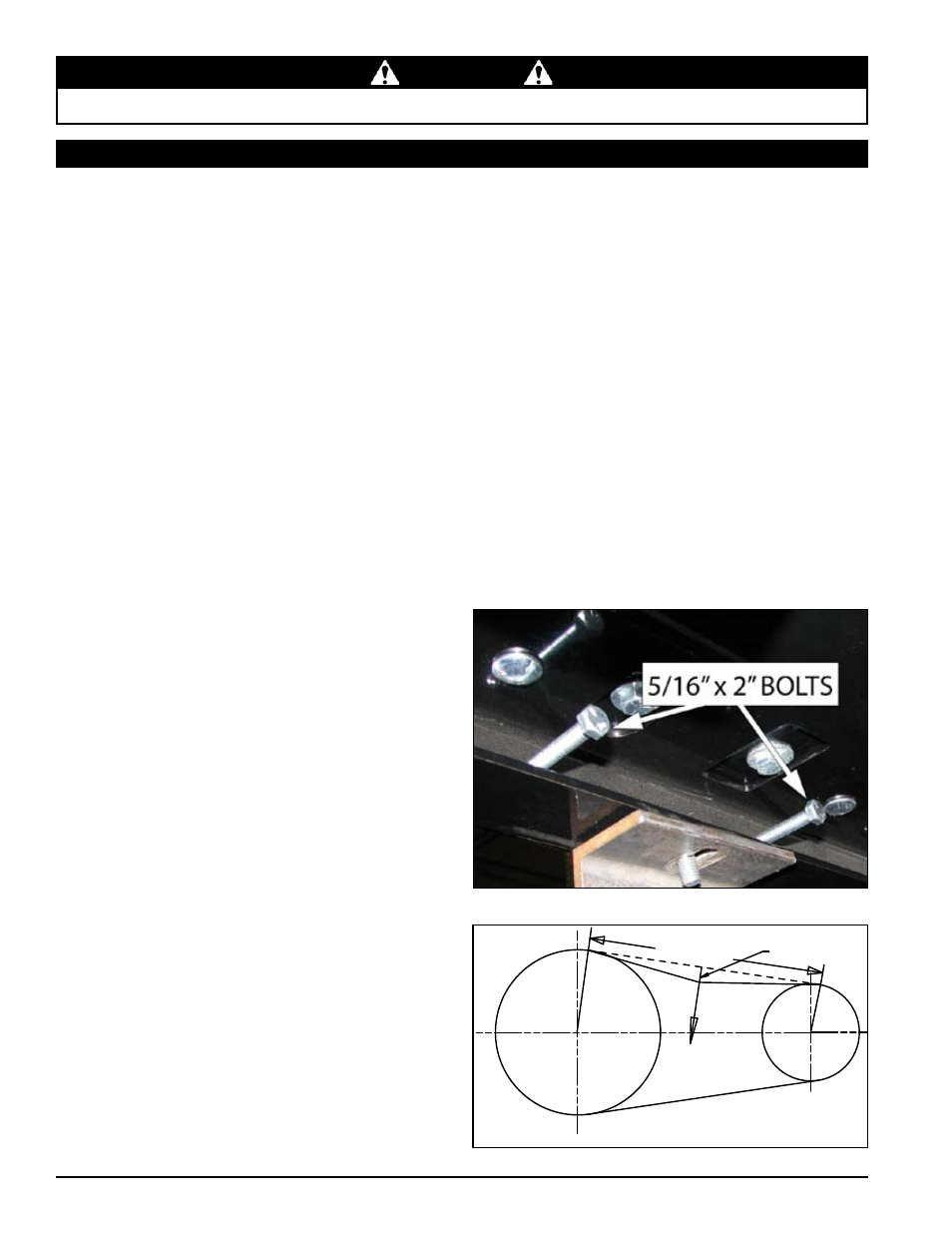

Figure 5.4, belt tension
Span Length
Force
20 lbs
7/16" Deflection
5.8 dRIvE bELT adJuSTmENT
Replace the belt if no adjustment is left (Section 5.9). 8.
Reinstall the belt shield. 9.
5.8.2 pTo modELS
Move the engagement lever to the RElEASE 1.
position.
Disengage PTO and shut off tractor engine.
2.
Remove the PTO shaft from the tractor and disconnect 3.
from the 3 point hitch.
Move the engagement lever to the CHIppInG
4.
position.
Remove the 5/16" bolts to take off either the front or
5.
rear belt shield.
Either tighten or loosen the eyebolt at the base of the
6.
idler until the belt deflection is 7/16" when a 20 lb. load
is placed against the belt.
Reinstall belt shields.
7.
Figure 5.3, adjustment bolts
