6 INCH CHIPPER

SERVICE & MAINTENANCE

BEFORE INSPECTINg OR SERVICINg ANy PART OF THIS MACHINE, SHuT OFF POWER SOuRCE,

DISENgAgE THE HyDRAulICS, AND MAKE SuRE All MOVINg PARTS HAVE COME TO A COMPlETE STOP.

WaRNING

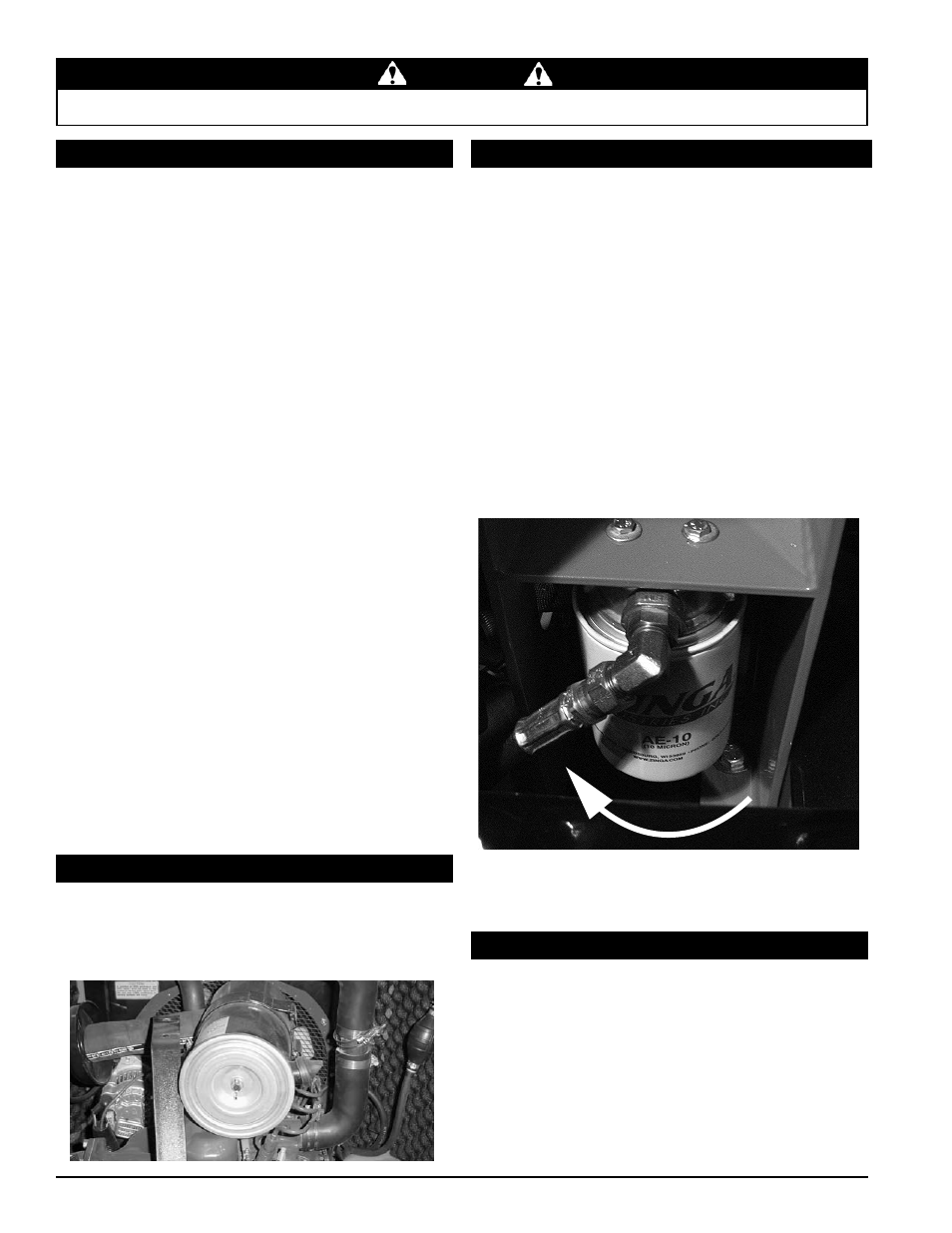

5.11 FILLING HYDRauLIC FLuID

5.13 CHaNGING HYDRauLIC oIL FILTER

Turn filter as directed to remove

5.12 aIR FILTER (DIESEL SHoWN)

Both the diesel and the gas engines used on the 6” chipper

have air filters. Refer to the engine owner's manual

included with your machine for specific instructions on

replacing and cleaning these filters.

5.14 TRaILER SERvICE TIpS

Hydraulic fluid drives the feed roller. Check the fluid

level daily and fill as needed. The fluid and filter should

be changed and system cleaned if the fluid becomes

contaminated with foreign matter (water, dirt, grease, etc.)

or if the fluid has been subjected to temperatures greater

than the maximum recommended.
The hydraulic pump requires premium hydraulic fluids

containing high quality rust, oxidation, and foam inhibitors.

These include premium turbine oils, API CD engine oils

per SAE J183, M2C33F or g automatic transmission

fluids meeting Allison C-3 or Caterpillar TO-2, and certain

specialty agricultural tractor fluids.
In the unlikely event that the oil is completely drained

from the hydraulic system, oil must be added and any air

bubbles must be purged from the system. To do this:

Clean all system components (reservoir, fittings,

1.

etc.).
Fill the hydraulic reservoir.

2.

Start the engine and run at the lowest possible RPM.

3.

As you purge air from the unit, the oil level in the

4.

reservoir will drop and bubbles may appear in the fluid.

Refill the reservoir as necessary.
Run the feed roller in both directions for several

5.

minutes until any remaining air purges from the unit.

Refill the reservoir as necessary.
Shut down the engine, check for and correct any

6.

fluid leaks, and check the reservoir level. Add fluid

if necessary. The hydraulic pump is now ready for

operation.

Change the hydraulic oil filter after the first 50 hours of

operation and every 200 hours thereafter.

To change the hydraulic oil filter:

using an oil filter wrench, turn the filter

1.

counterclockwise.
Once the filter becomes loose, turn it out the rest of the

2.

way with your hand.
Properly discard old filter.

3.

lube the rubber seal on the new filter (PN 16922) with

4.

clean hydraulic oil.
Install the filter onto the threaded pipe. Turn with your

5.

hand until the filter is finger tight.
using an oil filter wrench, tighten the filter another ½

6.

turn.
Check hydraulic oil level and fill if necessary.

7.

Check wheel bolt torque monthly.

1.

Check air pressure in tires monthly.

2.

Check and repack wheel bearings with grease every

3.

12 months.
When towing, always connect the safety chains. Make

4.

sure trailer hitch bolts are tight.
Check trailer lights periodically.

5.
