Instruction Sheet
CONNECTING ThE WIRES—RESET AND SAFETy CONTROLS
In the engine compartment, locate the wires (they are fixed together by tape). 1.
Locate the weather proof connectors on the wire harness attached to the new tray (see figure 1). The wires are red/ 2.
black for the Reset Control and red/light green for the Safety Control.
Figure 1 - Weather proof connectors
Match the colored wires from the harness on the new tray to the wires found in the engine compartment (described 3.
in step 1) and connect the connectors making sure they are locked.

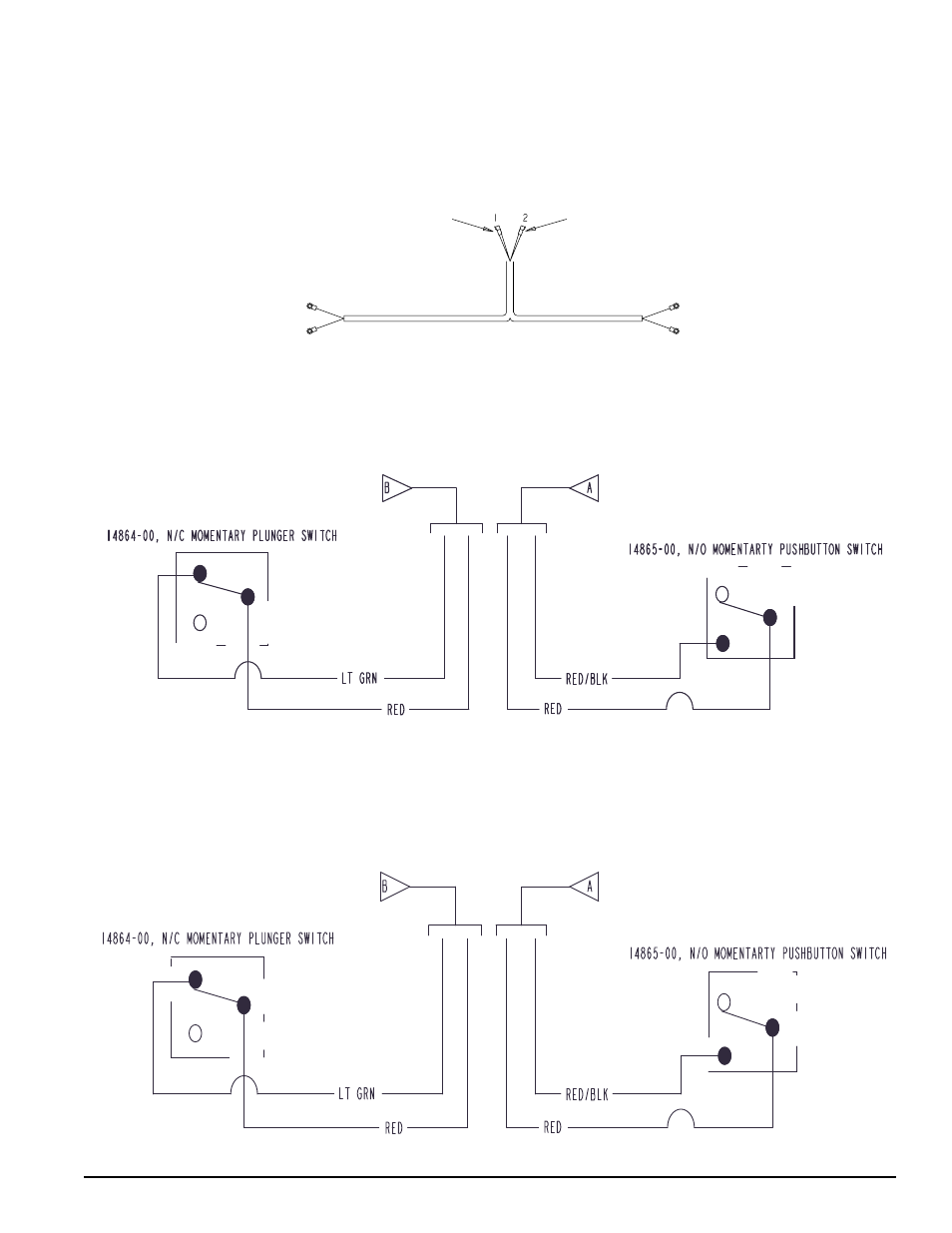

GAS SAFETy BAR SChEMATIC
DIESEL SAFETy BAR SChEMATIC
