7 TURNTABLE CHIPPER
ENGLIS
h
ASSEMBLY
2.6 FILLING ThE TaNk 2.8 aTTach chIppER chuTE
Mount the chipper chute to the chipper housing using
eight 3/8" x 1" bolts and locknuts. use three bolts on each
side and two on the bottom (Figure 2.1).
To insert the top bolts, rotate the feed roller until the
notches (one on each side) on the feed roller are aligned
with the top bolt holes.
Connect the three wires coming from the feed chute to the
connectors that are located underneath the feed roller.
do not operate this unit without the chipper chute
correctly installed. Rotating cutting blades can cause
serious personal injury.
WaRNING

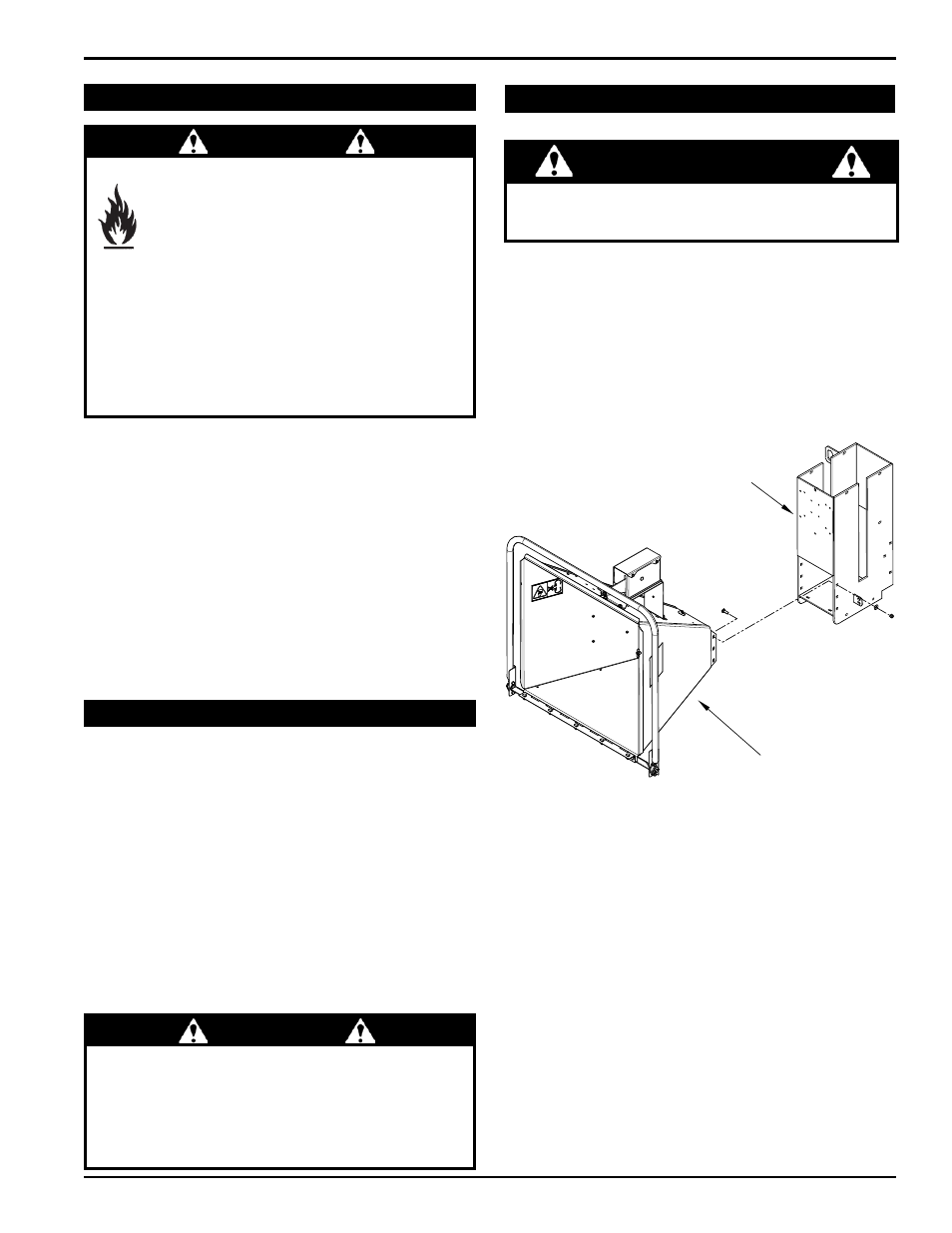

Figure 2.1 - Chipper Chute Assembly
use only those types of fuels that are recommended in
your engine owner’s manual.
To add fuel:
Stop engine, wait for all parts to stop moving and 1.
disconnect spark plug wire. Remove key from key
switch. Allow the engine and muffler to cool for at least
three minutes.
Clean area around fuel fill cap and remove cap.
2.
using a clean funnel, fill fuel tank to 1/2” below bottom 3.
of filler neck to provide space for any fuel expansion.
Install fuel fill cap securely and wipe up any spilled
gasoline.
daNGER
gasoline and diesel fuels are highly flammable and
their vapors are explosive. to prevent
personal injury or property damage:
Store fuel only in approved containers,
in well ventilated, unoccupied buildings,
away from sparks or flames. A container
with a capacity of 2 gallons or less with a pouring
spout is recommended. Do not fill the fuel tank while
the engine is hot or running, since spilled fuel could
ignite if it comes in contact with hot parts or sparks
from ignition. Do not start the engine near spilled fuel.
Never use fuel as a cleaning agent. DO NOT MIX OIl
WITH FuEl.
2.7 coNNEcT ThE baTTERY
you will need to purchase a battery. Choose a battery
that meets or exceeds the engine manufacturer’s
specifications. Consult your engine owner’s manual or
authorized dealer for specification details.
To install the battery:
Open the battery box and insert battery into the battery 1.
box.
Attach the positive (red) battery cable from the engine
2.
to the positive (+) battery terminal.
Attach the negative (black) battery cable from the
3.
engine to the negative (-) battery terminal.
Secure the cover on the battery box with the strap
WaRNING
To avoid sparks and a possible explosion or fire due
to a short circuit, do not touch the positive (+) battery
terminal and any surrounding metal with tools, jewelry
or other metal objects. When installing battery cables,
connect the positive (+) cable first and the negative (-)
cable last.
CHIPPER
CHUTE
HYDRAULIC
FEED
