8

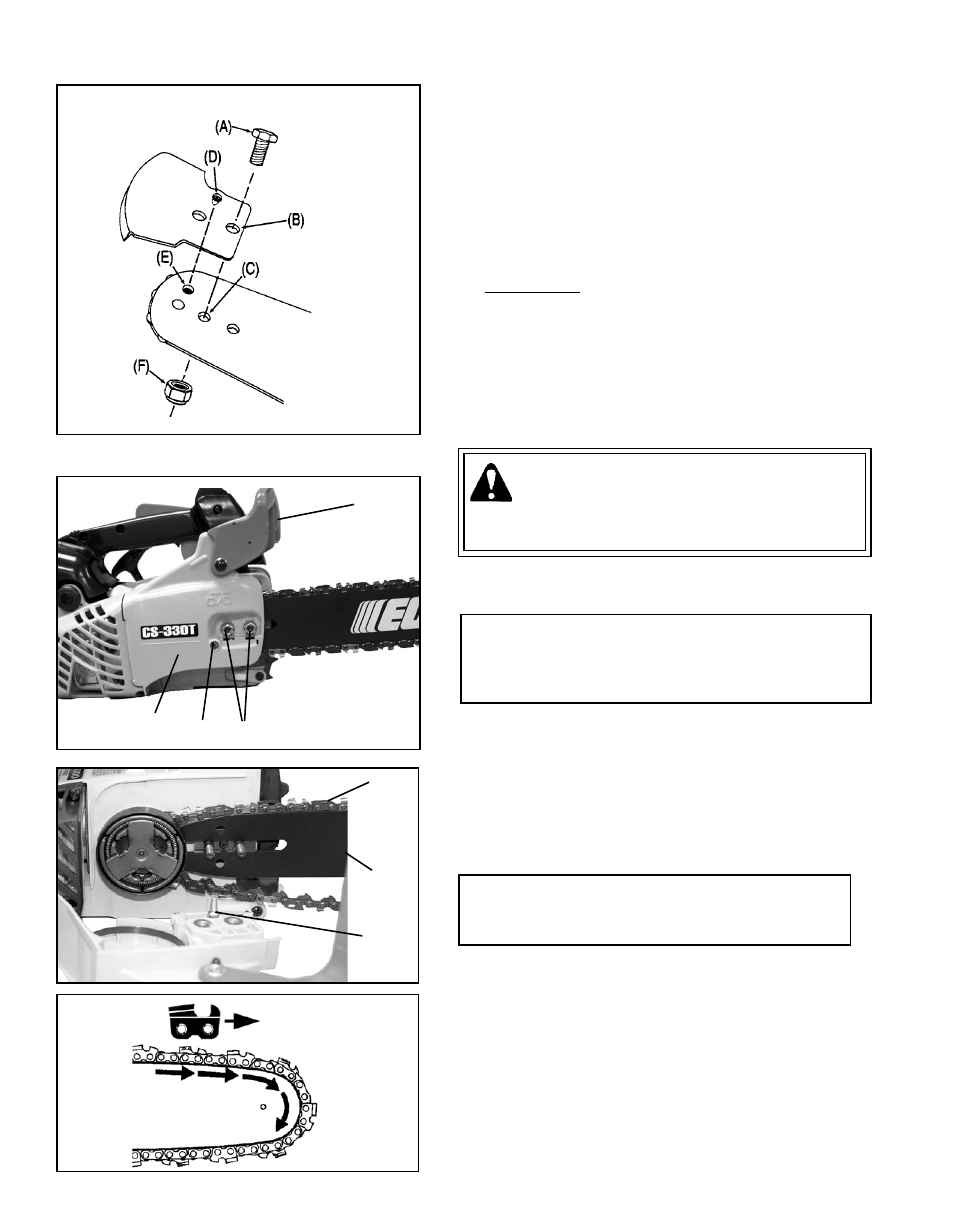

KICK GUARD® TO BAR INSTRUCTIONS
For saws with Kick Guard ® P/N 2894901 and symmetri-
cal or asymmetrical low-kick type guide bars.
1. Install bolt (A) in rear hole (B) of Kick Guard ® and
through front hole (C) in guide bar.
2.
IMPORTANT: Dimple in Kick Guard ® (D) must engage
recess in guide bar (E).
3. Tighten nut (F) and bolt (A) until snug. Make certain
Kick Guard ® is flush against guide bar.
H
G
J
GUIDE BAR AND SAW CHAIN-INSTALL/ RE-
MOVE
WARNING
Saw Chain is sharp! Always wear gloves when handling
assembly, otherwise serious personal injury may result.
1. Move chain brake lever (G) fully rearward to unlock
chain brake.
IMPORTANT
Always loosen guide bar nuts before turning chain
tension adjuster, otherwise clutch cover and tensioner
will be damaged.
2. Remove two guide bar nuts (H). Turn tension
adjustment screw (J) counterclockwise 2 to 3 turns if
bar and chain are installed.
3. Push clutch cover (K) forward, pull rear of cover out
slightly, then remove.
4. Remove guide bar and saw chain if necessary.
K
p
RepaRation foR
u
se
NOTE: See “MAINTENANCE AND CARE”
instructions for guide bar, sprocket, and saw chain
maintenance.
5. Mount guide bar (L) on studs, and slide toward
sprocket to make saw chain installation easier.
Install saw chain (M) over clutch and place around
sprocket and guide bar as shown, with cutters on
top of guide bar facing forward.
6. Align holes of clutch cover (K) with guide bar studs,
and tensioner pin (N) with lower guide bar adjuster
hole. Install cover, then press and hold rear of cover
to fully seat. Tighten guide bar nuts finger tight.
L
M
N
