Page 12
IR Blaster
VCR
HD Cable Box
Blu-ray Player
HD Gaming Box
Home PC
HD Projector or HD Flat Panel TV
12
Hardware Installation

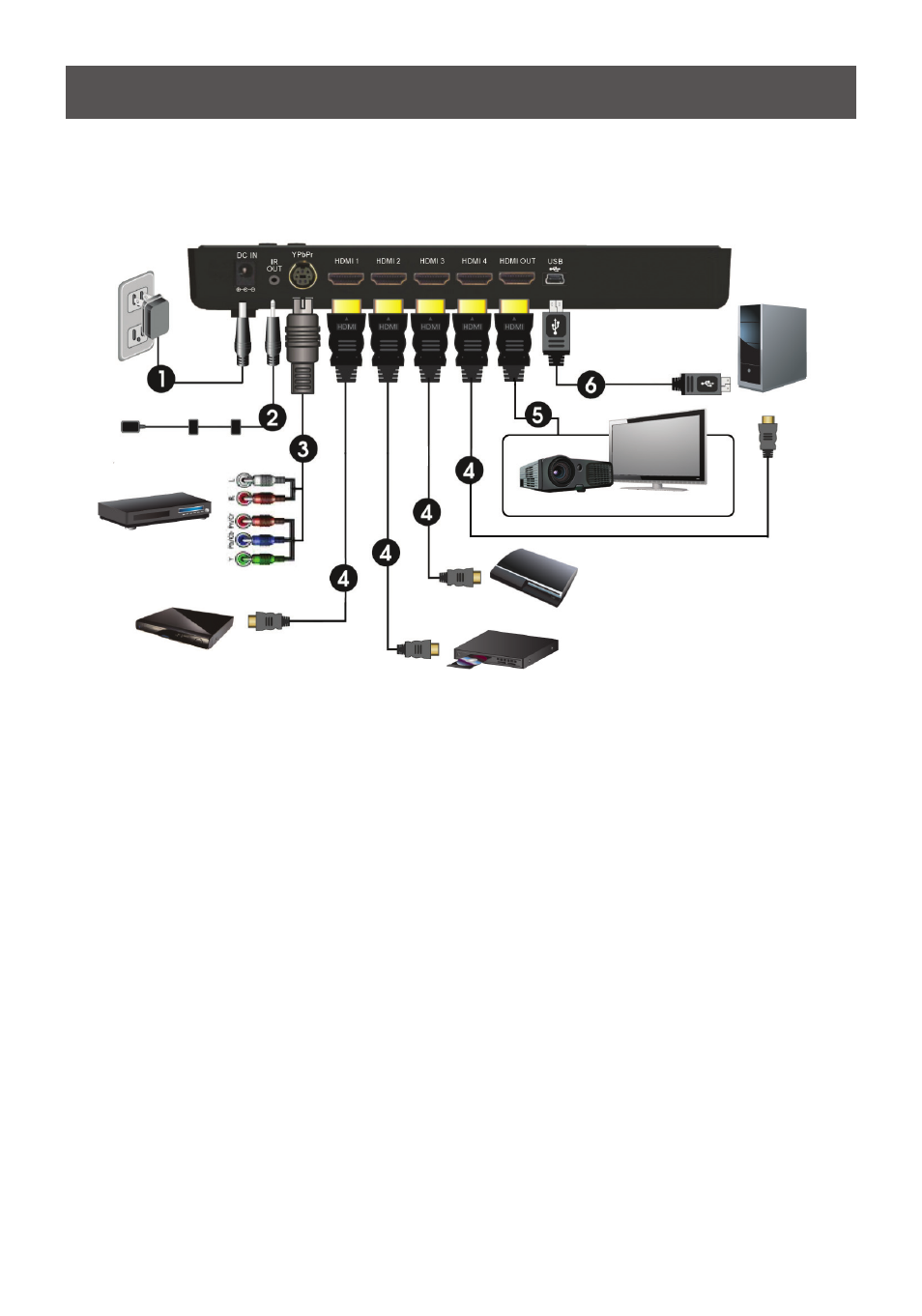

Step 1: Setup the Transmitter
Connect up to 5 Audio / Video Source Devices and a HDTV to the transmitter:
1. Connect the supplied power adapter
to the DC IN jack of the transmitter and
a wall socket. The LED indicator in the
POWER button lights up in green when it
is connected to power.
2. Plug in the provided IR blaster cable.
Please refer to page 14, step 3 for the
detail setup instruction.
3. Connect to source device through by
Component (YPbPr) Adapter cable.
4. Connect up to 4 High-Definition(HD) AV
sources via “HDMI OUT” through by
HDMI cable.
5. Connect the transmitter’s “HDMI OUT”
to the local HDTV “HDMI IN” port with an
HDMI cable
6. Connect the mini USB port to the USB
port of PC (or Notebook) with a mini USB
to Type A USB cable for USB HID control
(keyboard / mouse) on receiver side.
