IOGear GCS1644 v2 User Manual

Page 7

background image

7

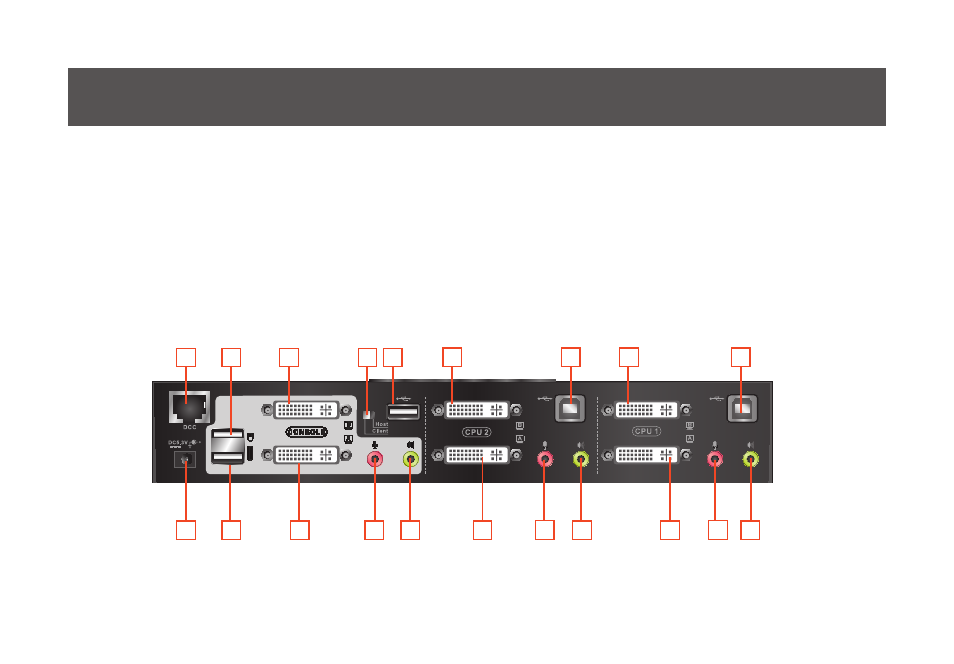

Rear View

14

19

10

15

20

6

9

4

12

17

2

3

1

5

7

1. DDC Port (Daisy Chain Port)
2. DC Power Jack
3. Console USB Mouse Port
4. Console USB Keyboard Port
5. Console DVI Video Port B
6. Console DVI Video Port A
7. DDC Switch (Host/Client)

8. USB 2.0 Peripheral Sharing Port
9. Console Mic. Connection
10. Console Audio Connection
11. CPU2 DVI Video Port 2B
12. CPU2 DVI Video Port 2A
13. CPU2 USB Connection

14. CPU2 Mic. Connection
15. CPU2 Audio Connection
16. CPU1 DVI Video Port 1B
17. CPU1 DVI Video Port 1A
18. CPU1 USB Connection
19. CPU1 Mic. Connection
20. CPU1 Audio Connection

8

11

16

18

13
