IOGear GCE250 User Manual
Page 21
21
3. For increased grounding protection, use STP
(shielded twisted pair) cable to connect
the local and remote units. There are two
methods that can be used:

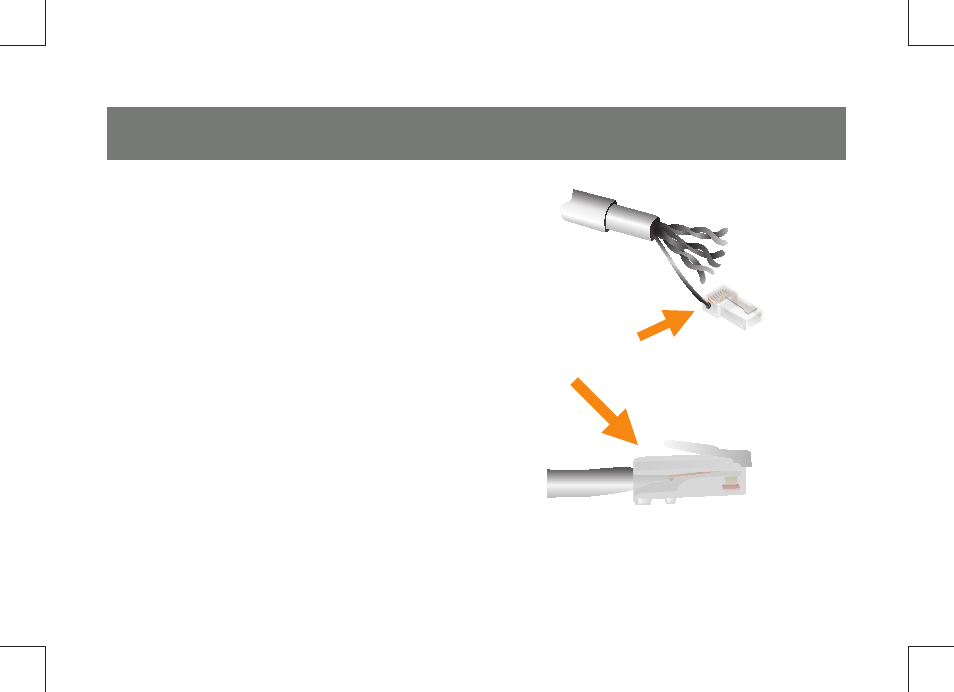

a) In addition to the eight paired wires, STP
cable also contains a grounding wire.
Solder this wire to the RJ-45 connector
as shown in the diagram:
b) The second method is to use the STP
cable shielding for grounding. In this
case, make sure that the shielding
makes tight contact with the top inside
of the RJ-45 connector as shown in the
diagram:
