16

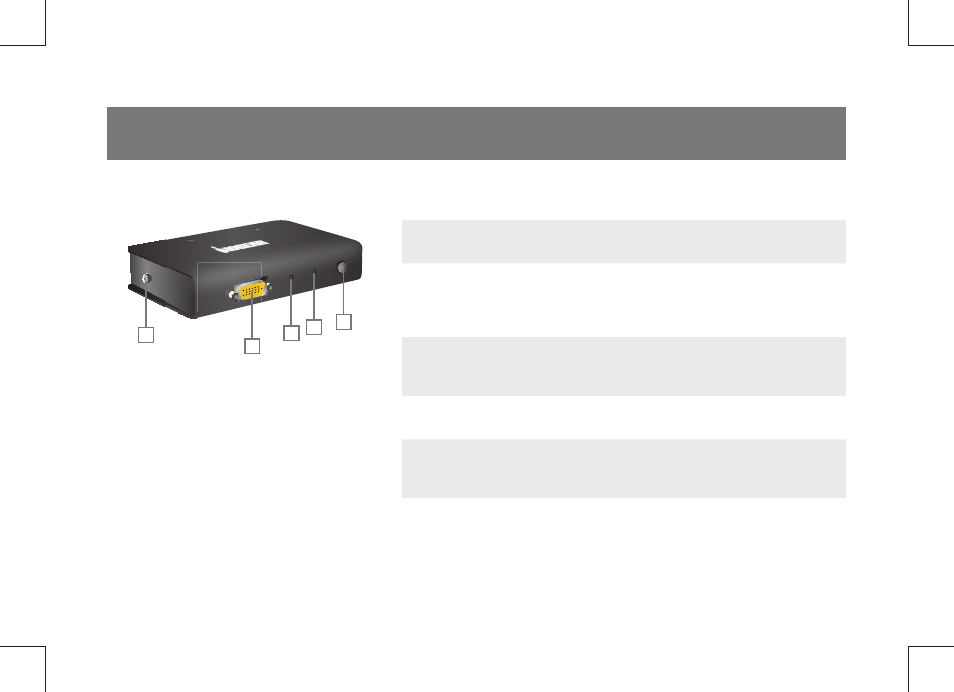

Components GCE250 L (Local Unit) Front View
# Description Function
1 Grounding
Terminal
The grounding wire (used to ground the
unit) attaches here.
2 KVM port The KVM cable that links the GCE250L to
your computer plugs in here. Only KVM
cables designed to work with this switch
can be used.*
3 Remote LED The Local Unit has two LEDs to indicate
the operating status of the Local and
Remote units.
4 Local LED See GCE250L (Local Unit), page 28, for
operating status details.
5 Mode
Selection
Switch
Pressing this button toggles between the
Local and Remote operating modes. See
Operating Modes, page 26, for details.
1
2
3 4
5
