SECTION 2 - SERVICE PROCEDURES
2-10 – JLG Lift – 3121154
2.6 AC JUNCTION BOX COMPONENTS
HAZARD OF ELECTRIC SHOCK! ALWAYS DISCONNECT ELEC-
TRIC POWER TO THE JUNCTION BOX BEFORE ATTEMPTING TO
DISCONNECT ANY CIRCUITS OR WHEN REMOVING COMPO-
NENTS.
WHEN TESTING CIRCUITS WITH ELECTRICAL POWER ON, USE
ONLY INSTRUMENTS WITH INSULATED TEST LEADS KEEPING
YOUR HANDS OUTSIDE THE BOX.
1. AC Box with Lid
2. 12VDC Starter Relay
3. 115VAC Coil Starter Relay 4. AC/DC -Transformer
5. Interlock Relay
6. Rectifier Switch 7. Plug
8. 20A Circuit Breaker
9. Terminal Strip 10. Harness Capacitor
11. AC Input Cable
NOTE: See wiring diagrams in Section-3 of this manual for wiring instructions.

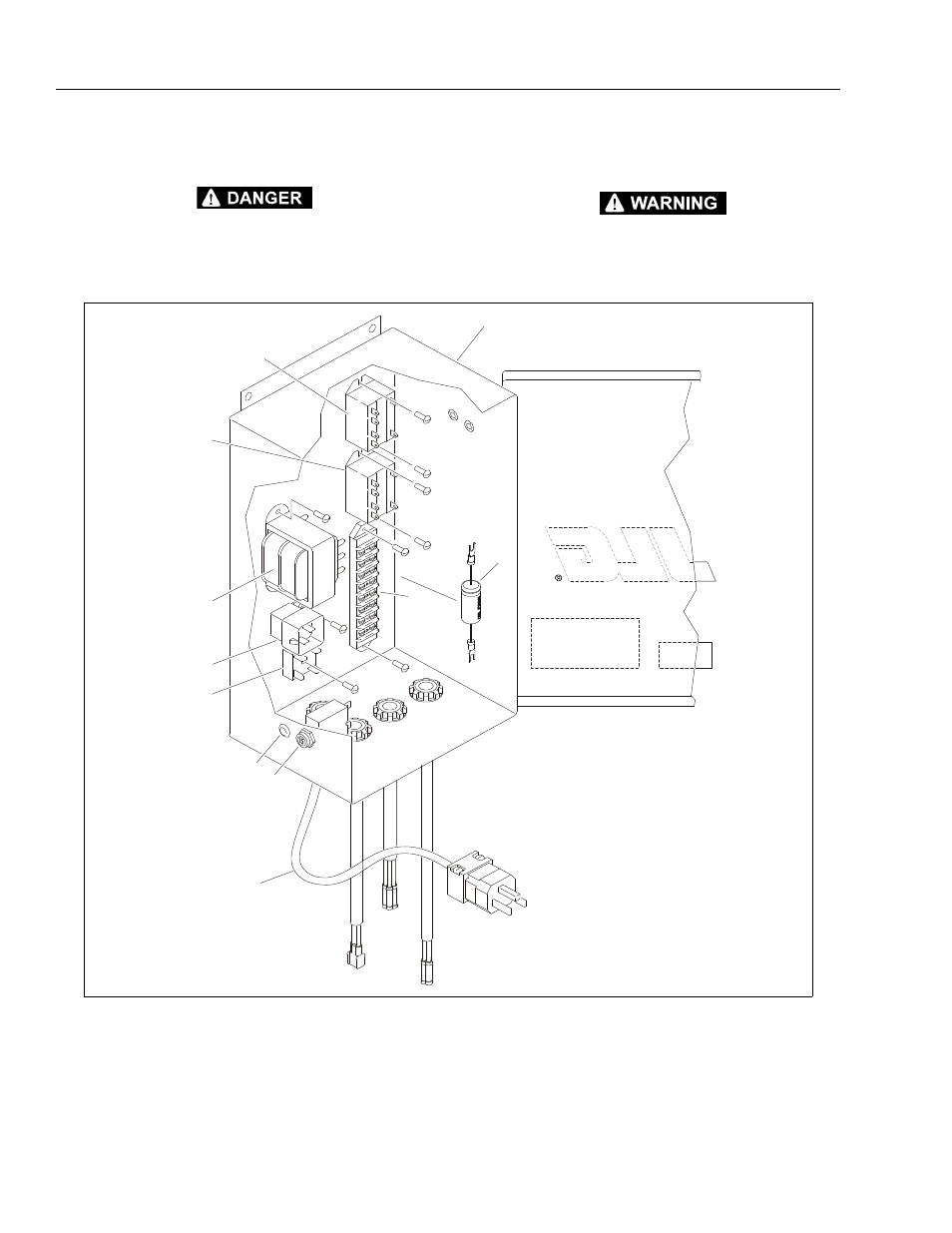

Figure 2-2. AC Junction Box - Internal Components.
