Section 3 - Controls and Indicators
3-4 31200149

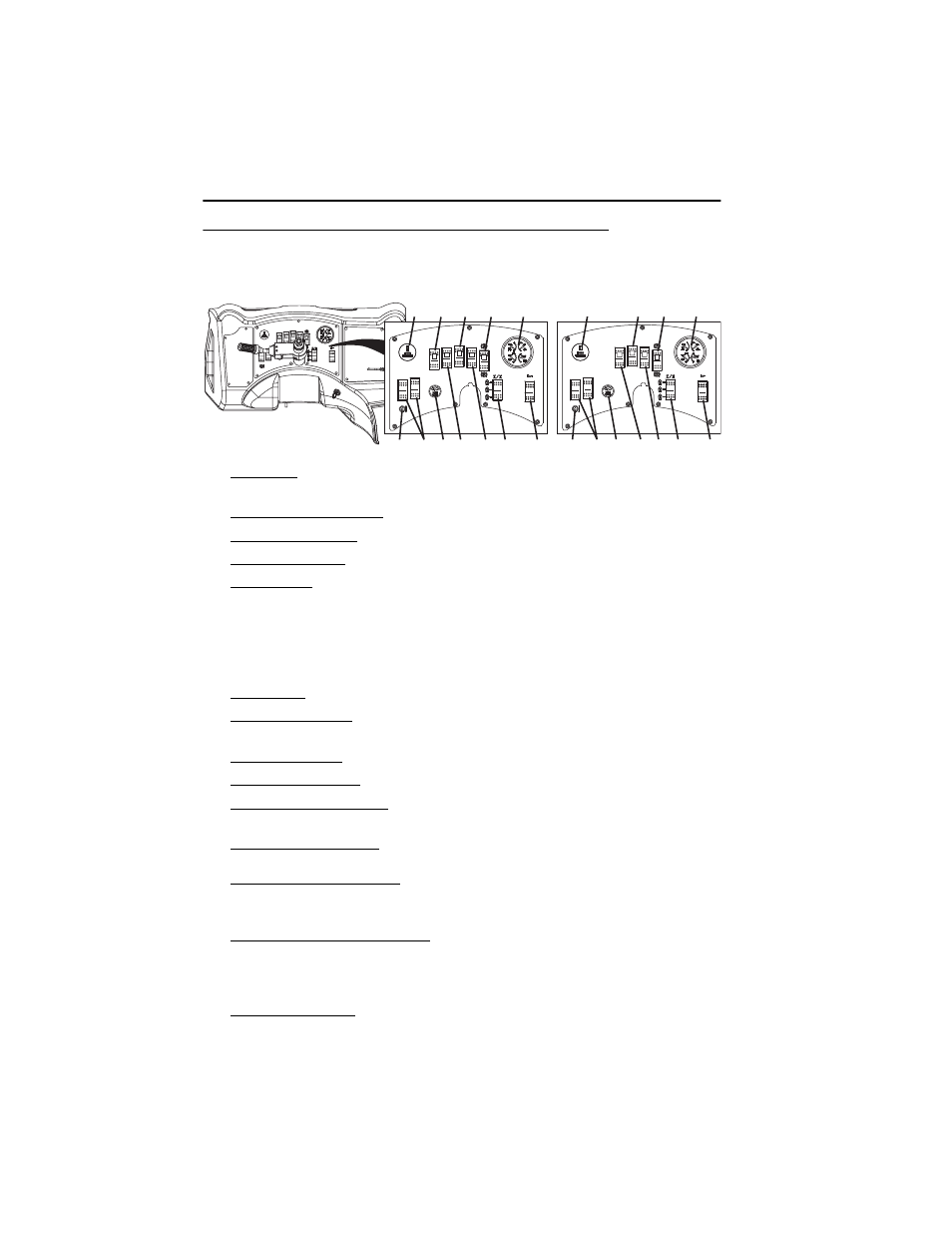

Dash Controls and Indicators
Before S/N 0160040678
1. Hourmeter: Indicates total time of engine operation in hours and tenths of
hours.
2. Boom Work Light Switch (Before S/N 0160031634, if equipped): On/Off switch.
3. Beacon Light Switch (if equipped): On/Off switch.
4. Park Brake Switch: See page 3-7 for details.
5. 4-in-1 Gauge:
a. Engine Coolant Temperature Gauge
b. Engine Oil Pressure Gauge
c. Fuel Gauge
d. Voltmeter indicates alternator output and battery condition.
6. Horn Button: Depress button to sound horn.
7. Steer Select Switch: Three positions: 4-wheel circle steer, 4-wheel crab steer
and 2-wheel steer. See page 3-18 for details.
8. Work Light Switch (if equipped): On/Off switch.
9. Driving Lights Switch (Before S/N 0160031634, if equipped): On/Off switch.
10. Windshield Wiper Control (if equipped): Two speed rotary switch. Depress to
activate washer fluid. Return to first position to turn off wiper.
11. Engine Pre-Heat Switch (Perkins Only): Depress to engage engine pre-heat. At
temperatures below 32°F (0°C), do not start until engine is preheated.
Auxiliary Electrics Switches (John Deere, if equipped): Enables functions of
attachments that require auxiliary electrics. See Section 5 - Attachments for
approved attachments and control instructions.
12. Transmission Temperature Light: Illuminates when transmission temperature is
too high. Bring machine to a stop, lower boom and attachment to ground. Idle
machine until the transmission temperature light goes out, then shut off engine.
Determine cause and correct before continued use.
13. Hazard Light Switch (S/N 0160031634 thru 0160040677, if equipped): On/Off
switch.
OY0084
1 4 5
6 7 12
3
8 13 10 11
R
N
F
1 4 5
6 7 12
2 3
8 9 10 11
BEFORE S/N 0160031634
S/N 0160031634 THRU
0160040677
