SECTION 1 - SPECIFICATIONS
1-4 – JLG Lift – 3120679
1.9 MAJOR COMPONENT WEIGHTS 1.10 CRITICAL STABILITY WEIGHTS

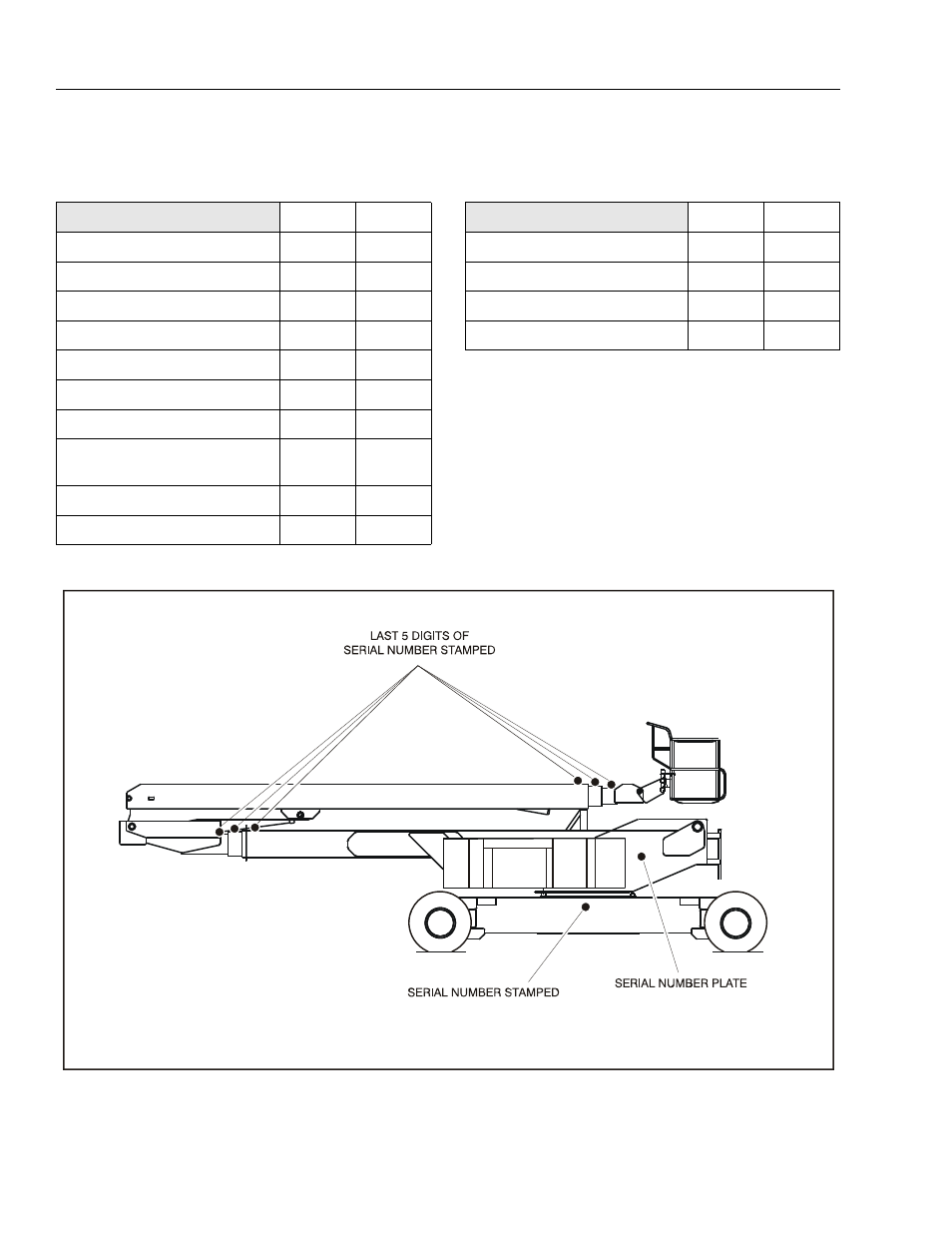

1.11 SERIAL NUMBER LOCATIONS
For machine identification, a serial number plate is affixed
to the machine. The plate is located on the left side of the
turntable, just behind the fuel tank. If the serial number
plate is missing, the machine serial number is stamped on
the left side of the frame, below the turntable bearing. In
addition, the last five digits of the serial number are
stamped on the top of the fly end of each of the tower
boom and main boom sections.
Table 1-13. Major Component Weights
LB. KG.
36 x 96 Platform 420 191
Platform Level Cylinder 80 36
Main Boom 6350 2880
Main Lift Cylinder 830 377
Master Level Cylinder (each) 60 27
Tower Boom 14700 6668
Tower Lift Cylinder 1100 499
Turntable Complete (includes swing
bearing) 14200 6441
Frame Complete 19200 8709
Complete Machine 57000 25855
Table 1-14. Critical Stability Weights
LB. KG.
Counterweight 3285 1490
Tire & Wheel Assembly 1020 494
Engine 680 308
8 ft. Platform 295 134
